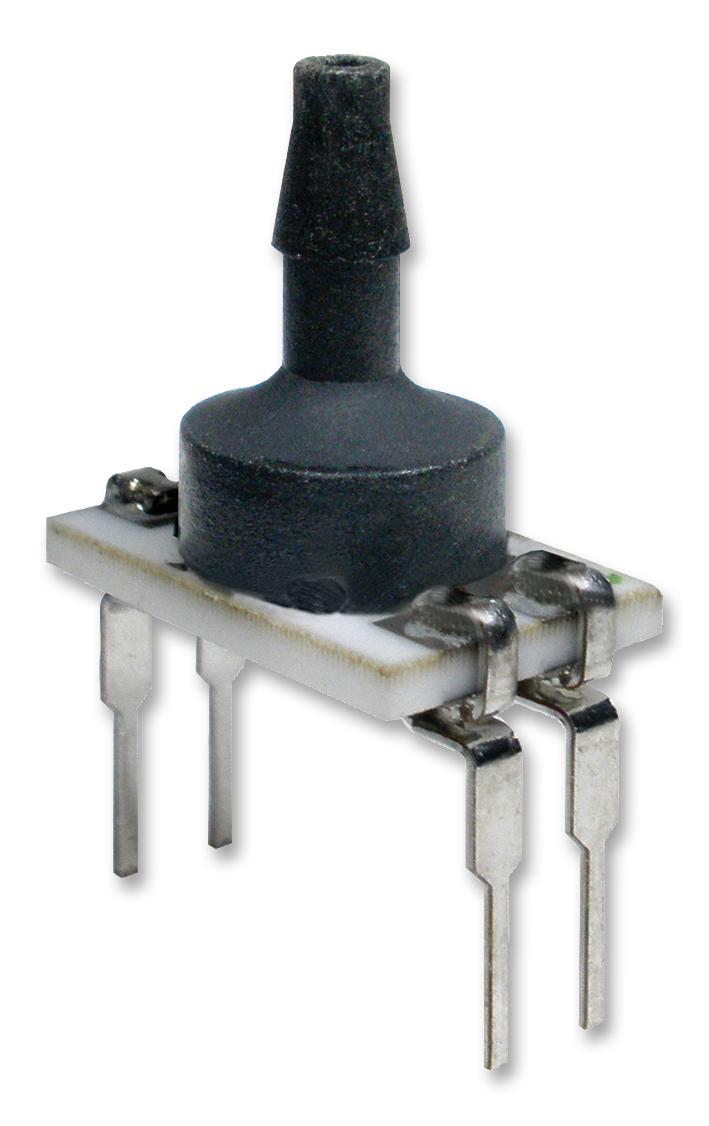

Honeywell NBPDANN150PGUNV Pressure Sensor
Honeywell's NBPDANN150PGUNV Basic Board Mount Pressure Sensor belongs to the NBP Series, unamplified and uncompensated, providing millivolt output for precise pressure measurement. Suitable for medical and industrial applications, it measures absolute pressure up to 150 psi, operating reliably from -40°C to 125°C. Its compact design supports multiple package styles and mounting options. Built to ISO 9001 standards, this sensor is ideal for customers needing custom calibration, high resolution, and durability in non-corrosive gas or liquid environments, offering a cost-effective solution with high accuracy and performance.
Honeywell NBPDANN150PGUNV Pressure Sensor Specifications:
- Measurement Range: 0 to 150 psi (0 to 10 bar), absolute pressure
- Output: Millivolt (mV) analog, unamplified, uncompensated
- Operating Temperature: -40°C to 125°C (-40°F to 257°F)
- Supply Voltage: 5.0 V to 12.0 V DC, typical at 5.0 V is 2.5 mA
- Accuracy: ±0.25% of full scale span at 25°C
- Input Resistance: 3.0 to 5.5 kΩ
- Electrical Connection: Various package styles, including DIP and leadless SMT, with axial or barbless ports
- Materials: High temp polyamide, alumina ceramic, gold, glass, silicon
- Durability: Over 1 million pressure cycles, compliant with MIL-STD and ISO standards
- Environmental: Non-condensing humidity up to 95%, shock and vibration resistant, reflow solderable
- Application: Suitable for dry gases, non-corrosive liquids, and environments requiring high resolution pressure sensing
Buy the Honeywell Series NBP Pressure Sensor: NBPDANN150PGUNV
Order the Honeywell NBPDANN150PGUNV pressure sensor online today for a reliable, high-quality, cost-effective solution that offers exceptional accuracy and durability. Designed for demanding industrial and medical applications, this unamplified and uncompensated absolute pressure sensor provides millivolt output, operating over a wide temperature range from -40°C to 125°C. Its compact design supports various package styles, making integration straightforward. Perfect for customers who want to perform their own calibration and compensation, ensuring maximum resolution and optimal performance in non-corrosive gas or liquid environments. Buy now to enhance your measurement system with a trusted, high-performance sensor.
Get Honeywell NBPDANN150PGUNV today—built for precision and long-lasting durability in demanding industrial and medical environments.
Frequently Asked Questions
Where can I buy Honeywell NBPDANN150PGUNV?
You can click on the BUY or RFQ button to purchase NBPDANN150PGUNV from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part NBPDANN150PGUNV?
You can download the NBPDANN150PGUNV datasheet or visit the Honeywell website for support.
Who is the manufacturer of NBPDANN150PGUNV?
Honeywell
