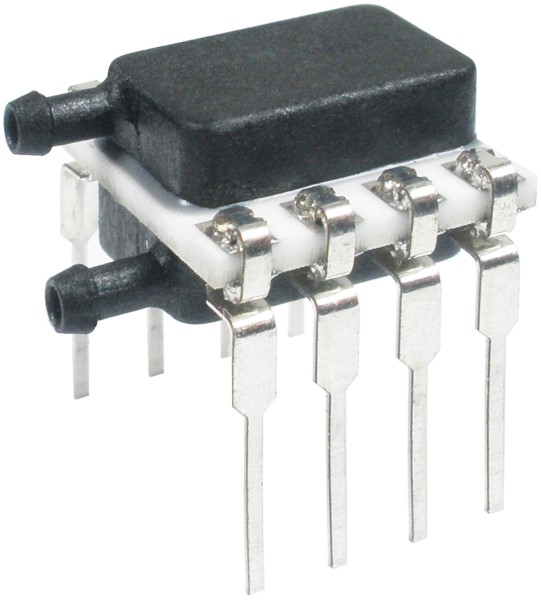

Honeywell NSCDRRN005PDUNV Board Mount Pressure Sensor
Honeywell's TruStability TSC and NSC Series are piezoresistive silicon pressure sensors designed for a wide range of applications including medical devices, HVAC systems, and industrial automation. These sensors offer exceptional stability, accuracy, and flexibility, minimizing system calibration and maximizing performance. They are available in various package styles and pressure ranges to suit diverse needs, and are manufactured according to ISO 9001 standards.
Honeywell NSCDRRN005PDUNV Board Mount Pressure Sensor Specifications:
- Temperature compensated range: 0 °C to 85 °C
- Operating temperature range: -40 °C to 85 °C
- Pressure measurement types: Differential or gage pressures (TSC Series), Absolute, differential or gage pressures (NSC Series)
- Supply voltage (Vsupply): Ranges >60 mbar | 6 kPa | 1 psi: -12.0 to 12.0 Vdc, Ranges <40 mbar | 4 kPa | 20 inH2O: 0 to 7 Vdc
- Storage temperature: -40 °C to 85 °C
- Soldering temperature (lead solder): 4 s max. at 250 °C
- Peak reflow temperature: 15 s max. at 250 °C
- Stability: Minimizes system calibration needs and maximizes system performance
- Accuracy: Down to ±0.15 %FSS BFSL
- Resolution: Infinite
- Frequency response: Limited by end user’s system
- Package styles: Numerous package styles and mounting options
- Media compatibility: Non-corrosive, non-ionic gases (air), non-corrosive, non-ionic liquids (sensors rated above 60 mbar | 6 kPa | 1 psi)
- Compliance: RoHS and ISO9001 compliant
