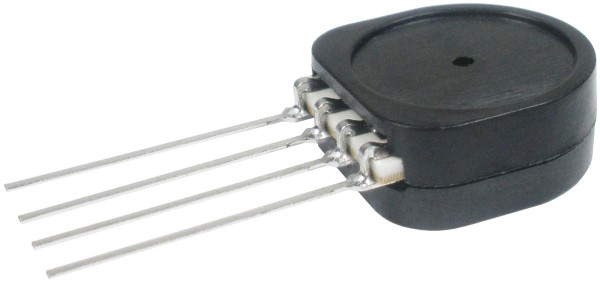

Honeywell NSCSSNN005PDUNV Board Mount Pressure Sensor
Honeywell’s TruStability TSC Series and NSC Series are piezoresistive silicon pressure sensors providing a ratiometric analog output for reading pressure. These sensors are characterized by industry-leading stability, accuracy, and flexibility, making them suitable for medical devices, industrial automation, HVAC systems, and more. They offer various package styles and mounting options, ensuring easy integration into diverse applications. The TSC Series features temperature compensation, while the NSC Series allows for customer-performed calibration. Available in absolute, differential, and gage configurations, these sensors cater to a wide range of pressure measurement needs.
Honeywell NSCSSNN005PDUNV Board Mount Pressure Sensor Specifications:
- Temperature compensated range: 0 °C to 85 °C
- Operating temperature range: -40 °C to 85 °C
- Supply voltage (Vsupply): 1.5 Vdc
- Storage temperature: -40 °C to 85 °C
- Soldering time and temperature: 4 s max. at 250 °C
- Peak reflow temperature: 15 s max. at 250 °C
- Pressure ranges >60 mbar | 6 kPa | 1 psi: 12.0 Vdc
- Pressure ranges <40 mbar | 4 kPa | 20 inH2O: 7 Vdc
- Stability: Minimizes system calibration needs and maximizes system performance
- Accuracy: Reduces software needed to correct system inaccuracies
- Flexibility: Modular design simplifies integration
- Mounting orientation: Insensitive to mounting orientation
- Package size: 10 mm x 10 mm
- Repeatability: Provides excellent repeatability, high accuracy and reliability
- Power consumption: Reduces power consumption and promotes energy efficiency
- Pressure types: Absolute, differential and gage types
- Pressure ranges: ±2.5 Mbar to ±10 bar | ±250 Pa to ±1 MPa | ±1 inH2O to ±150 psi
Buy the NSCSSNN005PDUNV HONEYWELL Board Mount Pressure Sensor | myMectronic
Purchase the Honeywell NSCSSNN005PDUNV pressure sensor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell NSCSSNN005PDUNV?
You can click on the BUY or RFQ button to purchase NSCSSNN005PDUNV from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part NSCSSNN005PDUNV?
You can download the NSCSSNN005PDUNV datasheet or visit the Honeywell website for support.
Who is the manufacturer of NSCSSNN005PDUNV?
Honeywell
