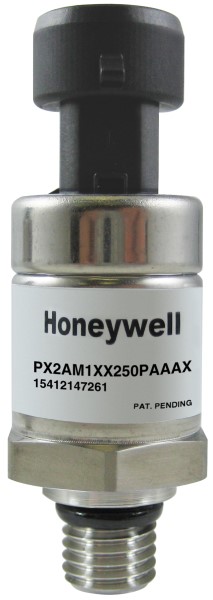

Honeywell PX2AM1XX250PAAAX Heavy Duty Pressure Transducer
Honeywell’s PX2 Series Heavy Duty Pressure Transducers are configurable pressure sensors designed for industrial applications like HVAC/R systems and air compressor systems. They employ piezoresistive sensing technology with ASIC signal conditioning in a stainless steel housing, ensuring durability and accuracy. The transducers are calibrated and compensated for offset, sensitivity, temperature effects, and non-linearity. Available in various pressure ranges and port types, the PX2 Series offers robust performance and media compatibility, including common refrigerants and hydraulic fluids. They are designed to withstand rigorous environments and offer ingress protection up to IP69K.
Honeywell PX2AM1XX250PAAAX Heavy Duty Pressure Transducer Specifications:
- pressure_range: 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
- pressure_reference: Absolute, sealed gage or vented gage
- pressure_port_types: 7/16-20 UNF 1/4 in 45° Flare Female Schrader (SAE J512), 7/16-20 UNF 45° Flare Male (SAE J513), 7/16-20 UNF 37° Flare Male (SAE J514), G1/4 (ISO 1179-3), G1/8 (ISO 1179-3), M12 x 1.5 (ISO 6149-3), 1/4-18 NPT, 1/8-27 NPT, 9/16-18 UNF (SAE J1926-3), or 7/16-20 UNF (SAE J1926-3)
- electrical_connector_types: Metri-Pack 150 (UL 94 HB or V-0 options), Micro M12, DIN, Deutsch, or cable harness (1 m, 2 m, 3 m, or 5 m)
- total_error_band: ±2.0 %
- operating_temperature_range: -40°C to 125°C [-40°F to 257°F]
- response_time: <2 ms
- life: Minimum of 10 million cycles to operating pressure
- mechanical_shock_rating: 100 G per MIL-STD-202F, Method 213B, Cond. F
- vibration_rating: 20 G sweep, 10 Hz to 2000 Hz
- ingress_protection: Up to IP69K
- radiated_immunity_protection: Up to 100 V/m (ISO 11452-2)
- flame_retardant_options: UL 94 HB standard on all electrical terminations; UL 94 V-0 available upon request
- media_compatibility: Common HFC refrigerants (R410A, R134A), low GWP refrigerants (R448A, R32, R1234ZE), engine oil, hydraulic fluids, DOT 3 brake fluid, dry air
