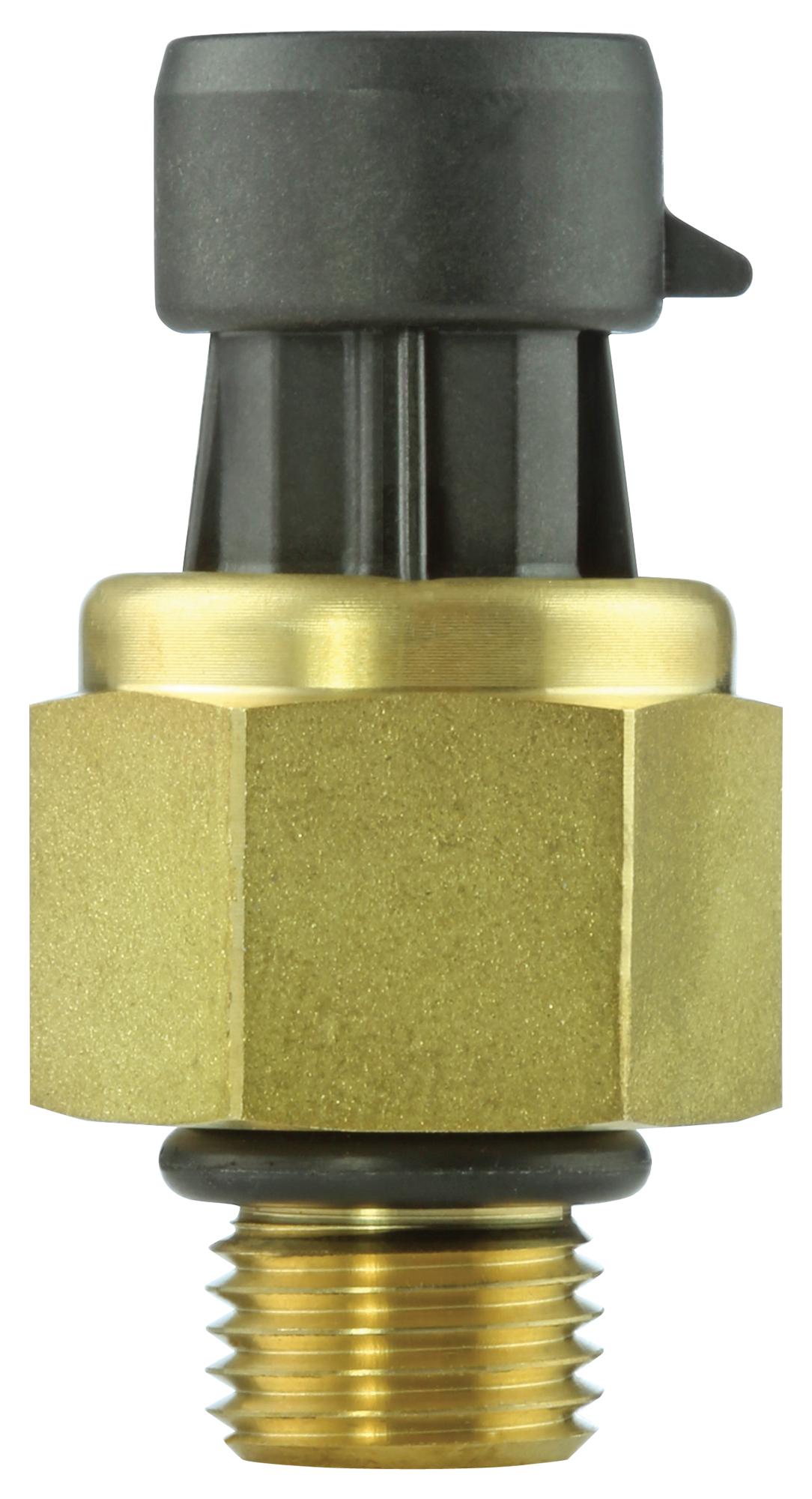

Honeywell PX3AG1BH046BSAAX Heavy Duty Pressure Sensor
Honeywell’s PX3 Series Heavy Duty Pressure Transducers use piezoresistive sensing technology with ASIC signal conditioning. Fully calibrated and temperature compensated from -40°C to 125°C, these durable sensors provide precise measurements with a Total Error Band of ±1.0% FSS. They feature high insulation resistance, dielectric strength, strong EMC performance, external freeze/thaw resistance, and low power consumption. Suitable for industrial refrigerant, hydraulic, and air systems, multiple configurations ensure versatile application without additional NRE or tooling costs, meeting tough environmental specs for demanding environments.
Honeywell PX3AG1BH046BSAAX Heavy Duty Pressure Sensor Specifications:
- Pressure range: 1 to 50 bar | 15 to 700 psi (absolute and sealed gage)
- Operating temperature: -40°C to 125°C [-40°F to 257°F]
- Storage temperature: -40°C to 125°C [-40°F to 257°F]
- Total Error Band: ±1.0% FSS from -20°C to 85°C
- Power supply: 5V DC ±0.25V, 3.3V DC ±0.25V, overvoltage protection up to 16V
- Current consumption: 3.0 mA max at 5V, 1.6 to 2.1 mA at 3.3V
- Output: Ratiometric 0.5 Vdc to 4.5 Vdc or 0.33 Vdc to 2.97 Vdc
- Response time: <2 ms
- Ingress protection: IP67 (Metri-Pack 150), IP69K (cable harness)
- Insulation resistance: >100 MΩ at 1500Vdc
- Dielectric strength: AC1500V for 1 min
- Shock: 100 G (threaded ports), 100 G (tube port)
- Vibration: 20 G sweep (threaded port), 10 Hz–2000 Hz
- Media compatibility: Refrigerants R410A, R134A, R448A, R32, R1234ZE, hydraulic fluids, brake fluids, dry air
Buy the Honeywell PX3 Series – Reliable Heavy Duty Pressure Sensors for Industrial Applications
Purchase Honeywell PX3 Series Heavy Duty Pressure Transducers online to ensure reliable performance in industrial refrigerant, hydraulic, and air system monitoring. These sensors combine piezoresistive sensing technology with robust construction and full calibration – providing precise, temperature compensated measurements with a Total Error Band of ±1.0%. They feature high insulation resistance, EMC immunity, external freeze/thaw resistance, and multiple port configurations, ensuring compatibility with HDD, HVAC, and hydraulic applications. Buy online today for instant availability, assured quality, and comprehensive support for demanding industrial environments.
Get Honeywell PX3 Series today—built for durability, high accuracy, and versatility in demanding industrial environments.
Frequently Asked Questions
Where can I buy Honeywell PX3AG1BH046BSAAX?
You can click on the BUY or RFQ button to purchase PX3AG1BH046BSAAX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part PX3AG1BH046BSAAX?
You can download the PX3AG1BH046BSAAX datasheet or visit the Honeywell website for support.
Who is the manufacturer of PX3AG1BH046BSAAX?
Honeywell
