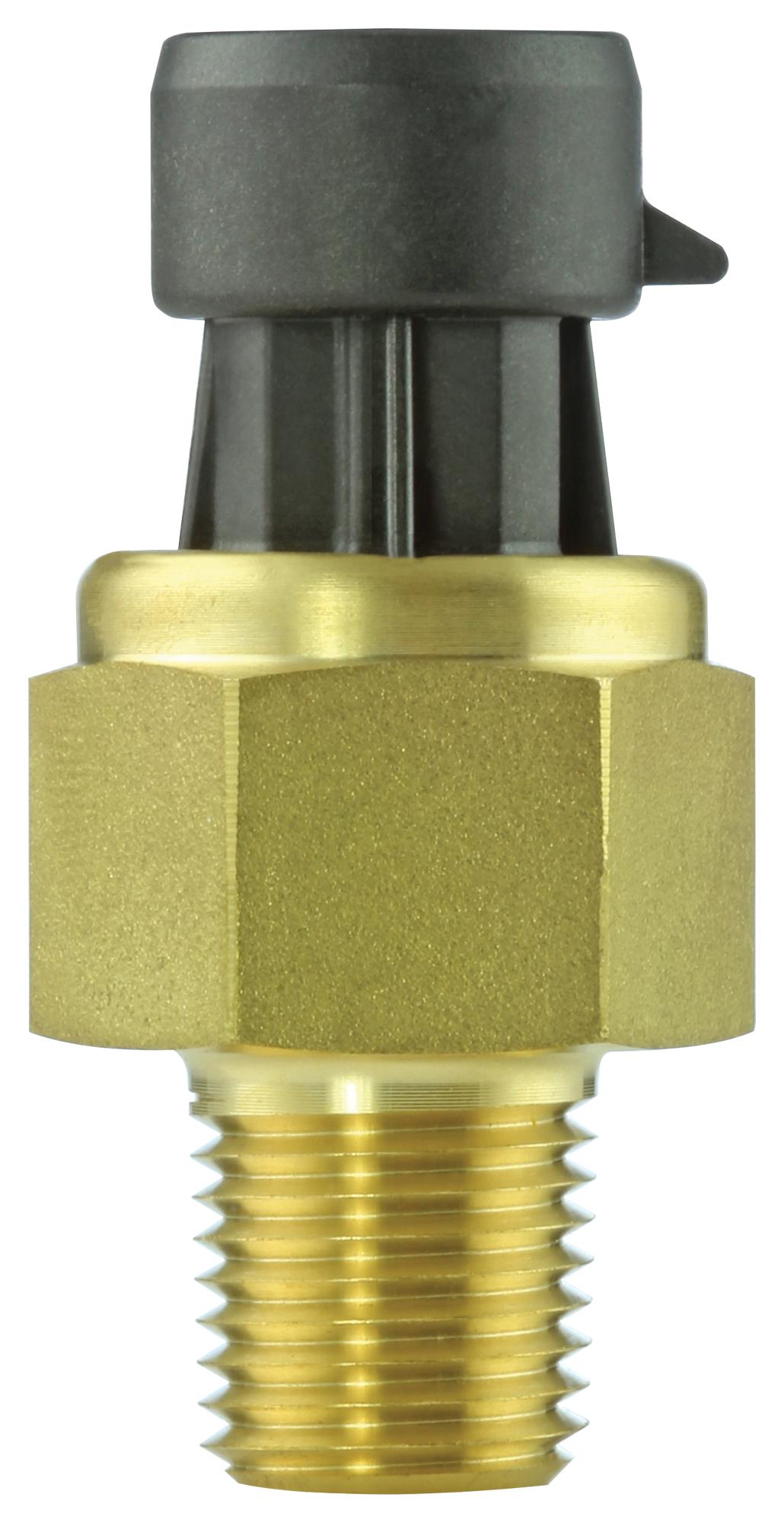

Honeywell PX3AN1BH010BSAAX Heavy Duty Pressure Sensor
Honeywell’s PX3 Series Heavy Duty Pressure Transducers utilize piezoresistive sensing technology with ASIC signal conditioning in a brass housing, offering pressure measurement from 1 to 50 bar (15 to 700 psi). Fully calibrated and temperature compensated from -40°C to 125°C, they provide a Total Error Band of +1.0 %FSS from -20°C to 85°C, ensuring precise readings over various conditions. These durable sensors feature high insulation resistance, EMC performance, external freeze/thaw resistance, and media compatibility with HFC refrigerants, engine oil, Hydraulic fluids, and dry air, making them ideal for industrial and transportation applications with multiple pressure port options.
Honeywell PX3AN1BH010BSAAX Heavy Duty Pressure Sensor Specifications:
- Pressure range: 1 bar to 50 bar | 15 psi to 700 psi (absolute and sealed gage)
- Temperature range: -40°C to 125°C [-40°F to 257°F]
- Total Error Band: +1.0 %FSS from -20°C to 85°C [-4°F to 185°F]
- Output: Ratiometric 0.5 Vdc to 4.5 Vdc or 0.33 Vdc to 2.97 Vdc
- Insulation resistance: >100 MOhm, 1500 Vdc (dry, non-ionized air)
- Dielectric strength: AC1500V, 1 min or AC1800V, 1 sec (dry, non-ionized air)
- Response time: <2 ms
- Electrical connection: Metri-Pack 150, IP67, IP69K cable harness options
- Overpressure protection: Up to 48 times the full scale
- Mechanical: Brass port, various port types including G1/4, NPT, tube port, installation torque ranges from 12.5 to 36.9 ft-lb
- Shock: 100 G; Vibration: 20 G sweep (threaded ports)
- Ingress protection: IP67 or IP69K, humidity up to 95%RH
- Media compatibility: Refrigerants (R410A, R134A, R448A), hydraulic fluids, engine oil, dry air
Buy the Buy Honeywell Heavy Duty Pressure Transducer Part Number PX3AN1BH010BSAAX Online
Get your Honeywell PX3AN1BH010BSAAX heavy duty pressure transducer today with fast online ordering. Designed for industrial and transportation environments, it offers high accuracy, robust construction, and wide temperature tolerance from -40°C to 125°C. The sensor features a ratiometric output, external freeze/thaw resistance, and media compatibility with refrigerants, hydraulic fluids, engine oil, and dry air. Ideal for refrigerant pressure monitoring, air compressor systems, hydraulic oil pressure, and more, it ensures reliable, long-lasting performance in tough conditions.
Order your Honeywell PX3AN1BH010BSAAX heavy duty pressure transducer today and ensure reliable pressure measurement in demanding industrial and transportation applications.
Frequently Asked Questions
Where can I buy Honeywell PX3AN1BH010BSAAX?
You can click on the BUY or RFQ button to purchase PX3AN1BH010BSAAX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part PX3AN1BH010BSAAX?
You can download the PX3AN1BH010BSAAX datasheet or visit the Honeywell website for support.
Who is the manufacturer of PX3AN1BH010BSAAX?
Honeywell
