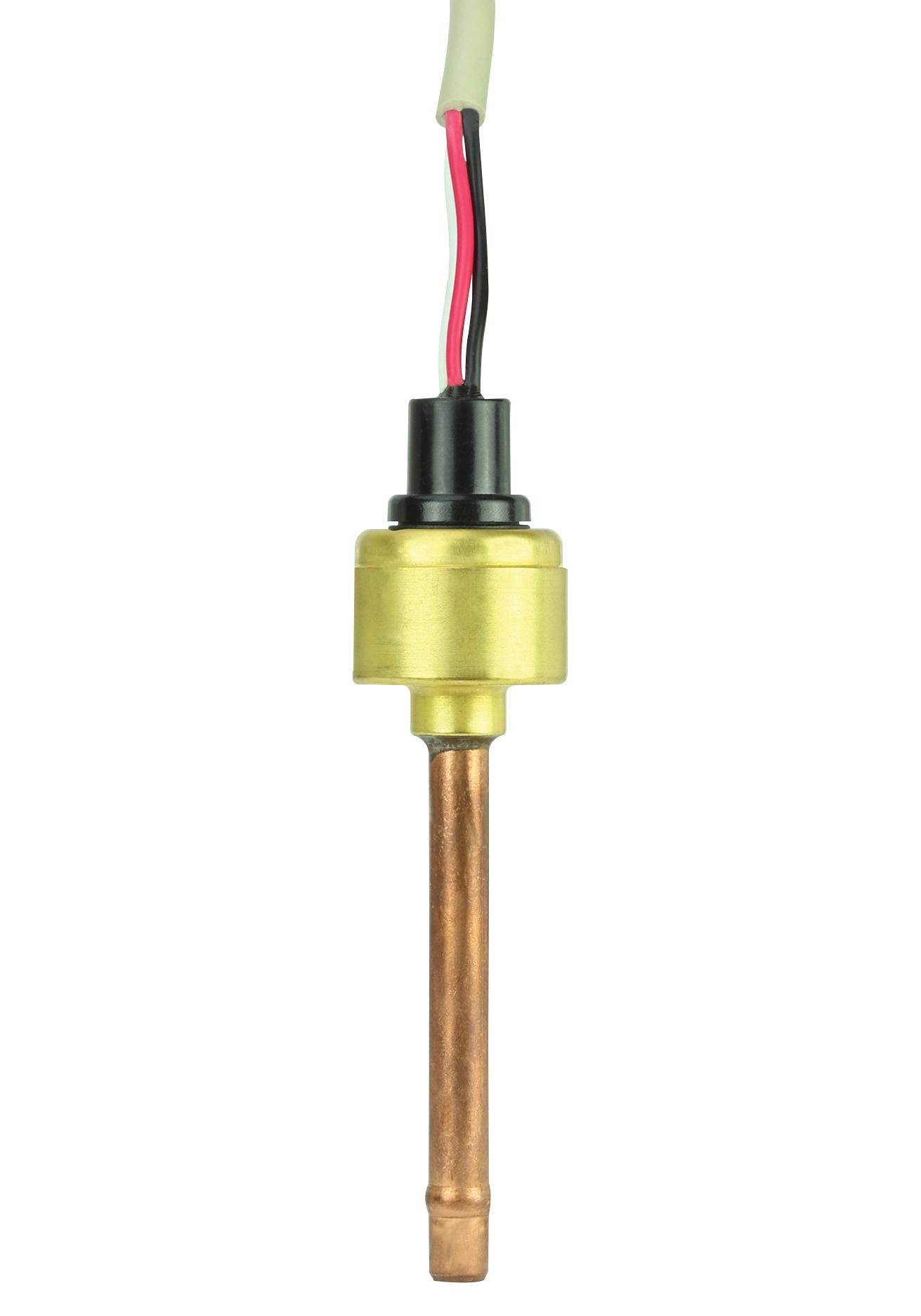

Honeywell PX3MT1BS150PSAAX Heavy Duty Pressure Transducer
Honeywell’s PX3 Series Heavy Duty Pressure Transducers utilize piezoresistive sensing technology with ASIC signal conditioning, housed in durable brass. Fully calibrated and temperature compensated from -40°C to 125°C, they offer a pressure range of 1 to 50 bar (15 to 700 psi). Features include high EMI immunity, external freeze/thaw resistance, low power consumption, and media compatibility with refrigerants, oils, and hydraulic fluids. Suitable for industrial HVAC/R, refrigeration, and hydraulic applications, these rugged transducers deliver reliable measurement in harsh environments with quick response times under 2 ms.
Honeywell PX3MT1BS150PSAAX Heavy Duty Pressure Transducer Specifications:
- Pressure range: 1 to 50 bar | 15 to 700 psi (absolute and sealed gage)
- Housing material: Brass (C36000)
- Electrical connector: Metri-Pack 150, IP67; optional cable harness IP69K
- Output: Ratiometric, 0.5 Vdc to 4.5 Vdc or 0.33 Vdc to 2.97 Vdc
- Temperature range: -40°C to 125°C (-40°F to 257°F), calibrated from -20°C to 85°C
- Response time: <2 ms
- Total Error Band: ±1.0 %FSS from -20°C to 85°C
- Insulation Resistance: >100 MOhm at 1500 Vdc
- Dielectric strength: AC1500V, 1 min
- Ingress protection: IP67 (Metri-Pack 150), IP69K (cable harness)
- Shock: 100 G; vibration: 20 G sweep, 10 Hz to 2000 Hz
- Media compatibility: refrigerants like R410A, R134A; oils, hydraulic fluids
- Wetted materials: brass, copper, alumina, glass, silicon
- Power supply: 5 Vdc (±0.25 Vdc), current max 3.5 mA
- Environmental: Survives over-temperature cycles, EMC compliant
Buy the Honeywell Series PX3 Heavy Duty Pressure Transducer: PX3MT1BS150PSAAX
Order the Honeywell PX3MT1BS150PSAAX online today to ensure your industrial pressure measurement needs are met with precision, durability, and fast delivery. These heavy duty transducers are engineered for demanding HVAC, refrigeration, hydraulic, and industrial applications. Featuring excellent EMI immunity, temperature compensation, and rugged brass housing, they deliver reliable, accurate readings under extreme conditions. Perfect for monitoring refrigerant, hydraulic oil, and air systems. Purchase now and upgrade your system’s performance with a trusted industry-leading sensor designed for longevity and precision.
Buy Honeywell PX3MT1BS150PSAAX now and experience unmatched reliability and performance in harsh industrial environments.
Frequently Asked Questions
Where can I buy Honeywell PX3MT1BS150PSAAX?
You can click on the BUY or RFQ button to purchase PX3MT1BS150PSAAX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part PX3MT1BS150PSAAX?
You can download the PX3MT1BS150PSAAX datasheet or visit the Honeywell website for support.
Who is the manufacturer of PX3MT1BS150PSAAX?
Honeywell
