Honeywell SDP8475201 Low Light Rejection Phototransistor

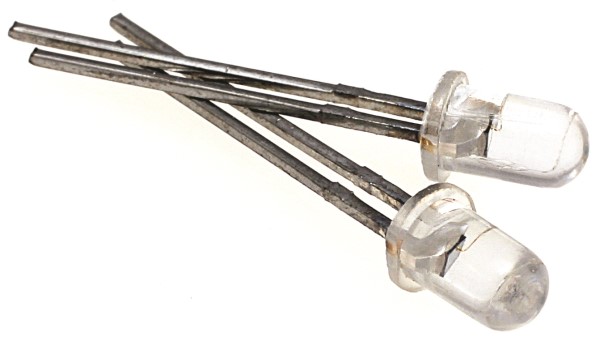

The Honeywell SDP8475-201 is a low light rejection phototransistor designed to minimize the impact of ambient light. This NPN silicon phototransistor incorporates an internal base-emitter shunt resistance and is transfer molded in a clear T-1 plastic package for optimal optical performance. It's ideal for applications requiring ambient light rejection, such as transmissive sensors and reflective systems where background reflection is a concern. The device's low light immunity and defined knee point make it suitable for precise light detection and control.
Honeywell SDP8475201 Low Light Rejection Phototransistor Specifications:
- Package: T-1 plastic
- Acceptance Angle: 20° (nominal)
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 85°C
- Collector-Emitter Voltage: 30 V
- Power Dissipation: 70 mW
- Soldering Temperature: 240°C (5 sec)
- Light Current Slope: 4.0mA/mW/cm2 min.
- Knee Point: 0.125mW/cm2
- Light Current Output: 3.5mA min.
Buy the SDP8475-201 HONEYWELL Low Light Rejection Phototransistor | myMectronic
Purchase the Honeywell SDP8475-201 Low Light Rejection Phototransistor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell SDP8475201?
You can click on the BUY or RFQ button to purchase SDP8475201 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SDP8475201?
You can download the SDP8475201 datasheet or visit the Honeywell website for support.
Who is the manufacturer of SDP8475201?
Honeywell
