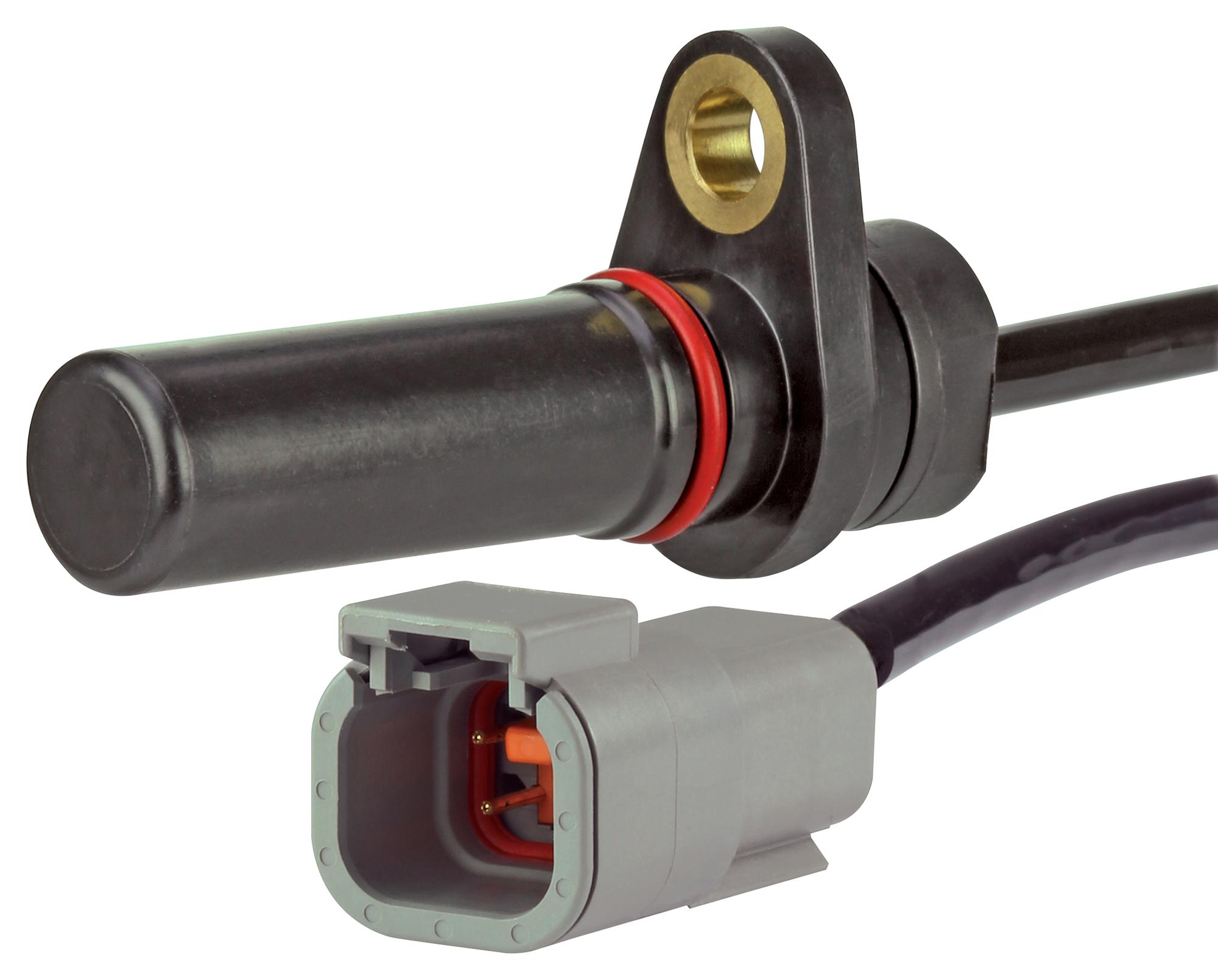

Honeywell SNGQPDB002 quadrature speed sensor
Honeywell's SNG-Q Series Quadrature Speed and Direction Sensors deliver reliable, high-performance speed and directional measurement for industrial and transportation applications. Featuring dual differential Hall-effect sensors, IP69K environmental sealing, and EMC immunity, these sensors operate within a wide temperature range of -40°C to 150°C. They provide precise square wave outputs with phase-shifted signals for accurate rotation detection, making them ideal for controlling motors, hybrid systems, and wheel speed sensing in demanding environments. Easy installation with mounting flange and sealed design ensures durability and dependable operation.
Honeywell SNGQPDB002 quadrature speed sensor Specifications:
- Sensing air gap: 0.0 mm to 2.0 mm
- Target width: >5.0 mm, typical 12.7 mm
- Slot width: 2.0 mm min
- Tooth width: 2.0 mm min
- Tooth height: >3.0 mm, typical 5.0 mm
- Housing material: PBT
- Bushing: Brass
- O-ring: Fluorocarbon with PTFE coating
- Cable: EVA, 4-conductor, 36 AWG, 25.2 mm jacket
- Mounting bore size: 15.15 mm to 15.40 mm
- Maximum torque: 10 Nm
- Operating temperature: -40°C to 150°C
- Sealing: IP69K
- Electrical: Supply voltage 4.5 V to 26 V, Output: 2 channel square wave, phase shifted 90°, duty cycle: 50% ±10%
- High-level output: ≥ 2 V, Low-level output: ≤ 0.5 V
- Electrical noise immunity: 100 V/m
- Frequency range: 3 Hz to 20 kHz
- Reverse voltage: Max 26 V
- Vibration: MIL-STD-202-214 compliant
- Certifications: CE, IP69K
- Application areas include industrial motor control, hybrid power systems, elevator speed regulation, and wheel speed sensing in construction and agriculture equipment.
Buy the Honeywell Series SNG-Q Quadrature Speed Sensor: 32304260
Purchase Honeywell 32304260 today to ensure your industrial machinery operates with high accuracy and durability. These sensors feature IP69K sealing, broad temperature tolerance from -40°C to 150°C, and superior noise immunity, making them ideal for motors, hybrid systems, and wheel speed detection. Easy to install with mounting flanges and sealed housing, they provide reliable performance in harsh environments. Activate your machinery’s full potential with a trusted, long-lasting sensor that delivers precise speed and directional signals for industrial automation and transportation needs.
Get Honeywell 32304260 today—built for precise speed and direction measurement in demanding industrial environments.
Frequently Asked Questions
Where can I buy Honeywell SNGQPDB002?
You can click on the BUY or RFQ button to purchase SNGQPDB002 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SNGQPDB002?
You can download the SNGQPDB002 datasheet or visit the Honeywell website for support.
Who is the manufacturer of SNGQPDB002?
Honeywell
