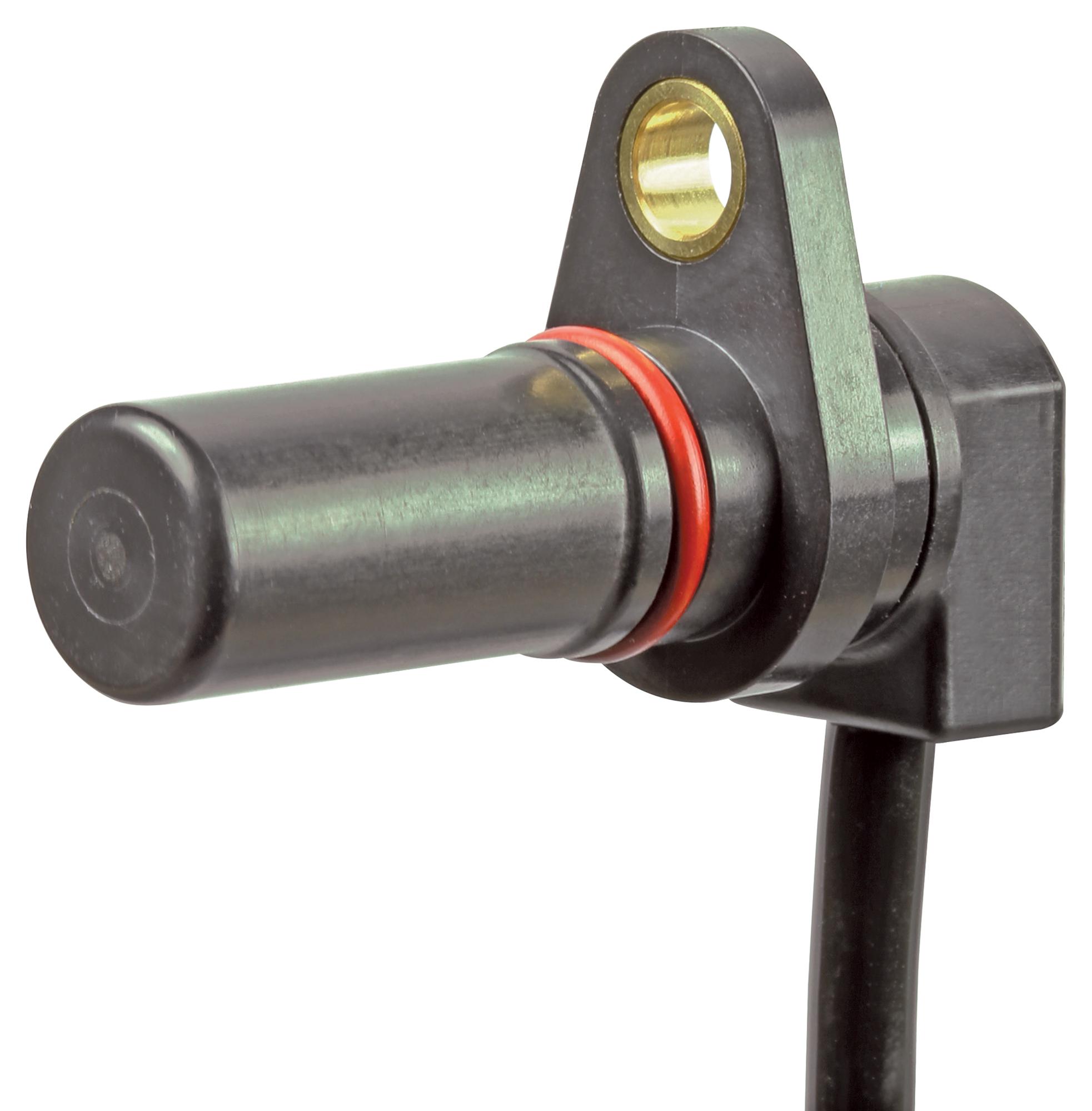

Honeywell SNGQPLA000 Quadrature Speed and Direction Sensor
The SNG-Q series 4-wire Quadrature Speed and Direction Sensor provides precise measurement of rotational speed and direction. It outputs digital square wave signals for speed and quadrature signals for direction, which are 90° phase-shifted to determine the target's rotational direction. Engineered with a platform-based design, this sensor offers high configurability for both mechanical and electrical parameters. It features dual differential Hall-effect sensors for enhanced accuracy in detecting small features. The sensor is suitable for demanding applications requiring high precision, supported by a wide operating temperature range, strong electrical noise immunity rated up to 100 V/m, and an IP69K environmental protection rating. Key features include an O-ring seal for environmental sealing, making it ideal for sensing and instrumentation, industrial, and logistics applications.
Honeywell SNGQPLA000 Quadrature Speed and Direction Sensor Specifications:
- Housing Material: PBT
- Connection Type: Integral Amp Superseal 1.5 connector, straight or right angle exit options
- Housing Length: 35 mm (1.38 in)
- Supply Voltage Range: 4.5 V to 26 V
- Output Signal: Square wave, two channels phase shifted by 90°
- Duty Cycle: 50% ±10%
- Phase Shift: 90° ±45°
- Output High Voltage: > Vs - 0.5 V
- Output Low Voltage: < 0.5 V (SNG-QPLA/QPCA), < 1.75 V (SNG-QPRA)
- Load Current: Max 40 mA per output
- Rise Time: 10 ps max
- Fall Time: 5 μs max
- Frequency Range: 3 Hz to 20 kHz
- Short Circuit Protection: Max 50 mA
- Supply Current: 12 mA normal, 18 mA max
- Reverse Voltage Tolerance: Up to -26 V
- Environmental Sealing: IP69K, resistant to automotive fluids
- Operating Temperature: -40°C to 150°C (-40°F to 302°F)
- Vibration: 29.28 GMS, MIL-STD-202-214
- EMC Immunity: ISO 11452-2, 400 MHz to 1 GHz; ISO 11452-4, 1 MHz to 400 MHz; IEC 61000-4-2, ESD ±8 kV contact, ±15 kV air
- Mechanical Target Range: 0 to 2 mm; width >5 mm recommended; tooth height >3 mm
- Housing Materials: PBT, brass bushing, fluorocarbon O-ring with PTFE coating
- Cable: EVA, four conductors, 36 AWG, 28 strands, 5.2 mm jacket
- Mounting Bore Size: 15.15 mm to 15.40 mm, torque max 10 N·m
Buy the Honeywell Series SNG-Q Quadrature Speed and Direction Sensor: 32304260
Order the Honeywell 32304260 Quadrature Speed and Direction Sensor online today to enhance your automation and measurement systems. This sensor offers exceptional accuracy with differential Hall-effect technology, versatile mounting options, and environmental sealing rated IP69K. Suitable for industrial machinery, hybrid vehicles, and material handling, it delivers high noise immunity and a broad temperature range. Designed for demanding environments, its reliable square wave outputs and phase-shifted quadrature signals ensure precise speed and direction detection, making it a critical component for advanced sensing applications.
Buy Honeywell 32304260 now and experience unmatched reliability and precision for demanding industrial and automotive applications.
