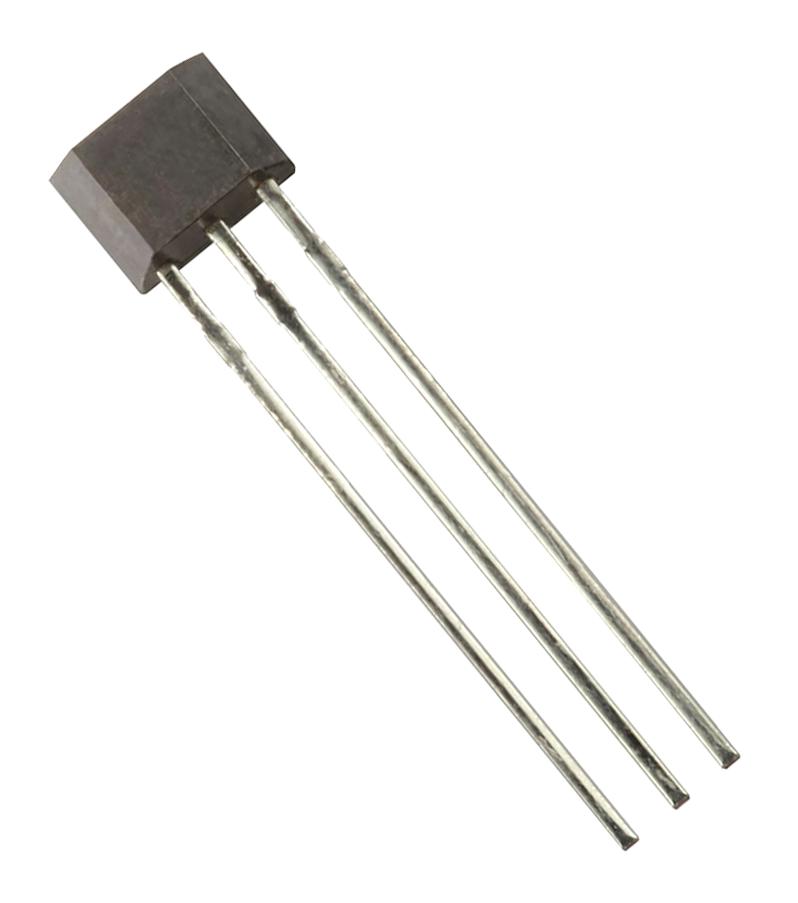

Honeywell SS496B Magnetic Sensor
The SS496B is a linear Hall-effect sensor IC designed for precise magnetic field detection in industrial and automotive applications. It features wide linear operation from -750 to 750 Gauss, exceptional linearity of 0-1.0% of span, and sensitivity of 2.875 mV/Gauss. Operating over a broad temperature range from -40°C to 150°C, it offers low power consumption with 70 mA supply current at 25°C, and rail-to-rail output for higher accuracy signals. Compact in a flat TO-92 package, the SS496B is ideal for current sensing, displacement, and position monitoring in diverse environments.
Honeywell SS496B Magnetic Sensor Specifications:
- Magnetic Range: -750 to 750 Gauss
- Linearity: 0-1.0% of span
- Sensitivity: 2.875 mV/Gauss
- Null Voltage: 2.350 V
- Temperature Range: -40°C to 150°C
- Supply Voltage: 4.5V to 10.5V
- Supply Current: 70 mA at 25°C
- Response Time: 3 μs
- Output Voltage Swing: 0.2 V to 4.0 V
- Package: Flat TO-92
- Vout Sinking/Sourcing: 1.5 mA continuous
- Magnetic Poles Monitored: Both positive and negative Gauss
- Application: Current sensing, position detection, displacement measurement
- Certified: RoHS compliant
- Sensing Technology: Quadrature Hall IC design, temperature compensated
- ESD Sensitivity: Class 3
Buy the Buy Honeywell SS496B Part Number SS496B Online
Purchase the Honeywell SS496B magnetic sensor directly online for precise magnetic field detection in industrial, automotive, and IoT applications. This compact, high-accuracy sensor features a wide Gauss range from -750 to 750 Gauss, excellent linearity of 0-1.0%, and operates from -40°C to 150°C, making it suitable for diverse environments. Its rail-to-rail output and low power consumption ensure efficient operation in space-constrained designs. Trusted for its robustness and reliability, order now and enhance your sensing solutions with Honeywell’s advanced Hall-effect technology.
Order your Honeywell SeriesSS496B magnetic sensor today and ensure reliable magnetic detection for industrial and automotive projects.
Frequently Asked Questions
Where can I buy Honeywell SS496B?
You can click on the BUY or RFQ button to purchase SS496B from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SS496B?
You can download the SS496B datasheet or visit the Honeywell website for support.
Who is the manufacturer of SS496B?
Honeywell
