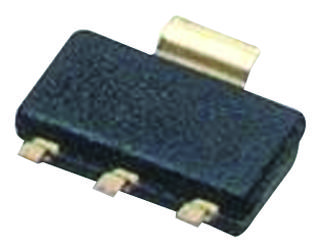

Honeywell SS552MT Magnetoresistive Position Sensor
The SS552MT is an omnipolar magnetoresistive digital position sensor that integrates magnetoresistive material on silicon within a compact plastic package. It provides a digital output in response to low magnetic fields, similar to Hall-effect sensors, but can operate at greater distances between the sensor and the magnet. Its low gauss operation allows sensing distances of one inch or more, depending on the size. The sensor features a digital current sinking output, omnipolar operation accommodating either north or south magnetic poles, and an operating speed ranging from 0 to over 100 kHz. Its small size makes it suitable for various applications in sensing and instrumentation, test and measurement, industrial, and automotive fields. Warning: Do not use this product as safety or emergency stop devices where failure could result in personal injury.
Honeywell SS552MT Magnetoresistive Position Sensor Specifications:
- Supply Voltage: 3.8 Vdc to 30 Vdc
- Supply Current: Max 11 mA at 25°C
- Output Voltage: 0.25V to 40V sinking 20 mA max
- Output Switching Time: Rise 0.2 us, Fall 0.1 us (90%-10%)
- Temperature Range: -40°C to 150°C
- Magnetic Flux: 25 gauss max operating, 4 gauss release at -40 to 150°C
- Mounting: Surface-mount package (SOT-89)
- Dimensions: Sensing surface approximately 19 mm, tape and reel packaging with 1,000 parts per reel
- Operating Frequency: 0 to over 100 kHz
- Magnetic Polarity: Omnipolar, operates with either north or south pole
- Response Time: Fast switching, suitable for high-speed applications
- Package Type: Packaged in reel form for automated placement
Buy the Honeywell SS552MT – Reliable Magnetoresistive Position Sensor for Industrial Applications
Purchase the Honeywell SS552MT surface-mount magnetoresistive position sensor online today to enhance your industrial automation and sensing projects. Its omnipolar magnetic operation, high-speed response, and durable compact design make it an essential component for cylinder position sensing, material handling, and automotive applications. With easy automated assembly and reliable digital output, this sensor offers superior performance for precision position detection. Order now to ensure your systems operate efficiently with this advanced, high-sensitivity magnetic sensor, delivering consistent accuracy in challenging environments.
Buy Honeywell SS552MT now and experience unmatched reliability and performance in industrial sensing and automation systems.
Frequently Asked Questions
Where can I buy Honeywell SS552MT?
You can click on the BUY or RFQ button to purchase SS552MT from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SS552MT?
You can download the SS552MT datasheet or visit the Honeywell website for support.
Who is the manufacturer of SS552MT?
Honeywell
