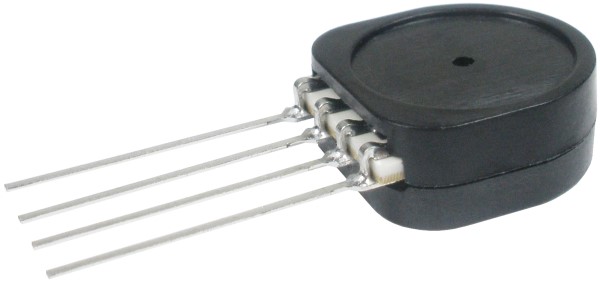

Honeywell SSCSSNN005PDAA5 TruStability Pressure Sensor
The Honeywell TruStability Standard Accuracy Silicon Ceramic (SSC) Series pressure sensor provides a digital output for accurate pressure readings across a specified range and temperature. Fully calibrated and temperature compensated, it features industry-leading long-term stability and accuracy, making it ideal for demanding applications in medical devices, industrial automation, and more. The sensor is designed for use with non-corrosive gases or liquids and offers a modular design with various package styles and pressure port options.
Honeywell SSCSSNN005PDAA5 TruStability Pressure Sensor Specifications:
- Supplyvoltage: 6.0 Vdc
- Voltageonanypin: Vsupply+0.3 V
- DigitalinterfaceclockfrequencyI2C: 400 kHz
- DigitalinterfaceclockfrequencySPI: 800 kHz
- ESDsusceptibility: 3 kV
- Storagetemperature: 85 C
- SolderingtimeandtemperatureLead solder: 4 s max. at 250 °C
- SolderingtimeandtemperaturePeak reflow: 15 s max. at 250 °C
- Supplyvoltage3.3 Vdc: 3.3 Vdc
- Supplyvoltage5.0 Vdc: 5.0 Vdc
- Supplycurrent3.3 Vdc supply: 1.6 mA
- Supplycurrent5.0Vdc supply: 2 mA
- Compensatedtemperaturerange: -20 C to 85 C
- Operatingtemperaturerange: -40 C to 85 C
- Startup time: 2.8 ms
- Response time: 0.46 ms
- I2Cvoltagelevel low: 0.2 V
- I2Cvoltagelevel high: 0.8 V
- Pullup onSDAand SCL: 1 kOhm
- Accuracy: 0.25% FSS BFSL
- Totalerrorband: 2% FSS
- Outputresolution: 12 bits
- Humidity: 0% to 95% RH, non-condensing
- Vibration: MIL-STD-202F, CurveAK
- Shock: MIL-STD-202F, Method213B, Condition F
- Life: 1 million cycles minimum
- Solderreflow: J-STD-020-C
- WettedMaterialsPort1: hightemperature polyamide
- WettedMaterialsPort2: hightemperature polyamide
- WettedMaterialsSubstrate: alumina ceramic
- WettedMaterialsAdhesives: epoxy, silicone
- WettedMaterialsElectroniccomponents: ceramic, glass, solder, silicon
