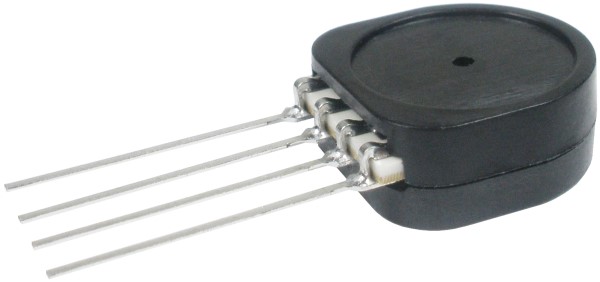

Honeywell SSCSSNN015PDAA5 Standard Accuracy Pressure Sensor
The Honeywell TruStability[®] SSC Series is a piezoresistive silicon pressure sensor designed for accurate and reliable pressure measurement in various industrial applications. Featuring a ratiometric analog or digital output, the sensor is fully calibrated and temperature compensated, ensuring consistent performance across a wide temperature range (-20 °C to 85 °C). Its compact size, low power consumption, and high burst pressures contribute to its versatility and ease of integration. Suitable for measuring absolute, gage, or differential pressures, the SSC Series is ideal for applications requiring stability, accuracy, and flexibility.
Honeywell SSCSSNN015PDAA5 Standard Accuracy Pressure Sensor Specifications:
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Accuracy: ±0.25 %FSS BFSL
- Temperature Range: -20 °C to 85 °C [-4 °F to 185 °F]
- Output: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output (min. 12-bit sensor resolution)
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Stability: Minimizes system calibration needs and improves system performance
- Burst Pressure: High burst pressures promote system reliability
- Working Pressure Ranges: Wide variety of pressure ranges from ±1.6 mbar to ±10 bar
- Moisture Sensitivity Level: Meets IPC/JEDEC J-STD-020D.1 Moisture Sensitivity Level 1 requirementS
- Power Consumption: Less than 10 mW (typ.)
- Diagnostics: Optional internal diagnostic functions available
Buy the SSCSSNN015PDAA5 HONEYWELL Standard Accuracy Pressure Sensor | myMectronic
Purchase the Honeywell SSCSSNN015PDAA5 pressure sensor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell SSCSSNN015PDAA5?
You can click on the BUY or RFQ button to purchase SSCSSNN015PDAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SSCSSNN015PDAA5?
You can download the SSCSSNN015PDAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of SSCSSNN015PDAA5?
Honeywell
