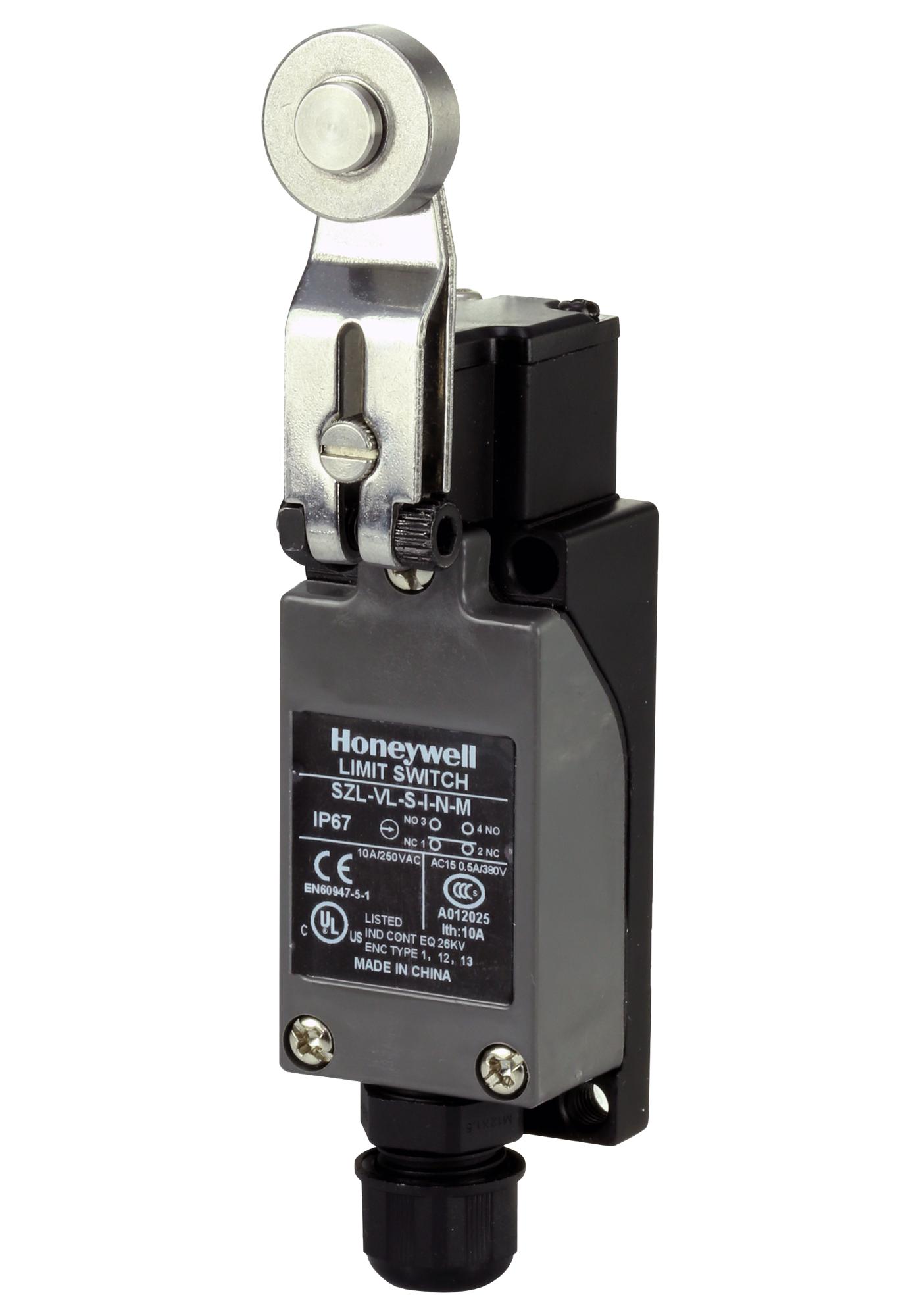

Honeywell SZLVLSINM miniature industrial limit switch
The SZL-VL-S Series miniature industrial limit switch by Honeywell is designed for space-constrained applications requiring rugged performance. It features IP67 sealing for protection against water immersion up to 1 meter and is suitable for diverse industrial uses such as conveyor systems, machine tools, and mobile lifts. Constructed with a die-cast metal housing and flame-retardant thermoplastic cover, it offers snap-action and positive-opening contacts, with a mechanical life of 10 million cycles. Its modular actuators and sealed design ensure reliability in harsh environments, meeting global standards like CCC, CE, and cULus.
Honeywell SZLVLSINM miniature industrial limit switch Specifications:
- Housing material: Die-cast metal with flame-retardant thermoplastic cover
- Sealing: IP67, NEMA 1, 12, 13
- Contacts: Snap-action, positive-opening (side rotary only)
- Contact material: Silver alloy
- Electrical ratings: AC-15 A300 (380 Vac/0.5 A), DC-13 Q300 (220 Vdc/0.05 A)
- Mechanical life: 10 million cycles
- Electrical life: 0.5 million cycles
- Operating temperature: -20°C to 70°C [-4°F to 158°F]
- Humidity: 95% RH
- Shock: 30 G (IEC 60068-2-27)
- Vibration: 10 G, 10 Hz to 55 Hz, 0.75 mm displacement
- Weight: 120g to 150g
- Dimensions: Mounting holes 22.5 mm (0.89 in), depth approximately 25 mm
- Environmental rating: Pollution degree 3, with additional protections like NEMA and UL
- Approvals: CCC, CE, cULus
Buy the Buy Honeywell SZL-VL-S Series Limit Switch Part Number SZLVLSINM Online
Purchase the Honeywell SZL-VL-S Series miniature industrial limit switch online today for robust performance in space-restricted environments. Designed with IP67 sealing, it offers durability against water immersion up to 1 meter, making it ideal for conveyor systems, machine tools, and mobile lifts. Its die-cast metal housing and flame-retardant cover ensure safety and longevity. Featuring snap-action contacts and a mechanical life of 10 million cycles, this switch guarantees dependable operation in harsh industrial conditions. Simply order online and experience quick, reliable delivery.
Order your Honeywell SZL-VL-S Series limit switch today and enhance your industrial automation projects with rugged reliability and IP67 protection.
Frequently Asked Questions
Where can I buy Honeywell SZLVLSINM?
You can click on the BUY or RFQ button to purchase SZLVLSINM from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SZLVLSINM?
You can download the SZLVLSINM datasheet or visit the Honeywell website for support.
Who is the manufacturer of SZLVLSINM?
Honeywell
