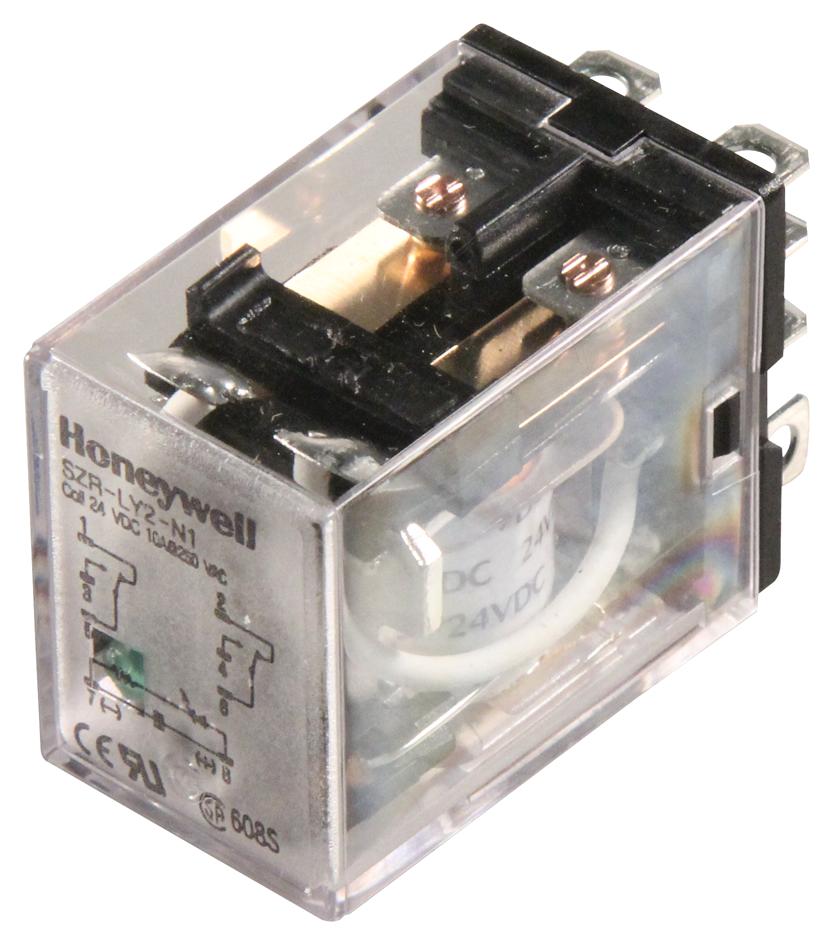

Honeywell SZRLY2N1DC24V Power Relay
The Honeywell SZR-LY Series power relay is a robust, general-purpose device designed for reliable switching in control panels, machine tools, and industrial automation. Featuring a small package design, silver cadmium oxide contacts, high dielectric strength (1,800 Vac), and options including LED indicators, internal surge protection diodes, and quick response times (max 25 ms), it offers high vibration and shock resistance. Rated for 10 A loads, it ensures stable and dependable operation suitable for various factory and control environments, meeting UL, CE, and CSA certifications.
Honeywell SZRLY2N1DC24V Power Relay Specifications:
- Contact material: Silver Cadium Oxide
- Contact resistance: Max. 50 MOhm
- Operate time: Max. 25 ms
- Release time: Max. 25 ms
- Operating Mechanical: 18,000 operations per hour
- Electrical: 1,800 operations per hour
- Insulation resistance: Min. 100 MΩ at 500 Vdc
- Dielectric withstand voltage: 1,800 Vac 50/60 Hz for one minute
- Vibration resistance: Mechanical durability 10 Hz to 55 Hz at 1.0 mm double amplitude
- Shock resistance: Mechanical durability 100 g, Malfunction durability 20 g
- Service life: Mechanical AC min. 50 million operations, DC min. 100 million, DPDT electrical min. 500,000, 4PDT min. 200,000 operations
- Weight: DPDT approx. 35 g, 4PDT approx. 65 g
- Rated load: 110 Vac, 10A; 24 Vdc, 10A
- Max. operating voltage: 250 Vac, 125 Vdc
- Operating voltage range: 6 Vdc to 240 Vac variants
- Coil resistance varies with voltage (e.g., 214.1 ohms at 6 V, 53.8 ohms at 24 V)
Buy the Buy Honeywell General Purpose Power Relay Part Number SZRLY2N1DC24V Online
Purchase the Honeywell SZR-LY Series power relay online today to ensure high reliability, stable operation, and long service life for your control panels, machine tools, and automation systems. With options including LED indicators, surge protection, and high dielectric strength, this relay is ideal for demanding industrial environments. Its compact size, quick response time, and robust construction guarantee dependable performance. Get your Honeywell power relay now and enhance your industrial automation with trusted quality and rapid delivery options.
Buy Honeywell SZRLY2N1DC24V power relay now and experience unmatched reliability and performance in industrial automation and control systems.
Frequently Asked Questions
Where can I buy Honeywell SZRLY2N1DC24V?
You can click on the BUY or RFQ button to purchase SZRLY2N1DC24V from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SZRLY2N1DC24V?
You can download the SZRLY2N1DC24V datasheet or visit the Honeywell website for support.
Who is the manufacturer of SZRLY2N1DC24V?
Honeywell
