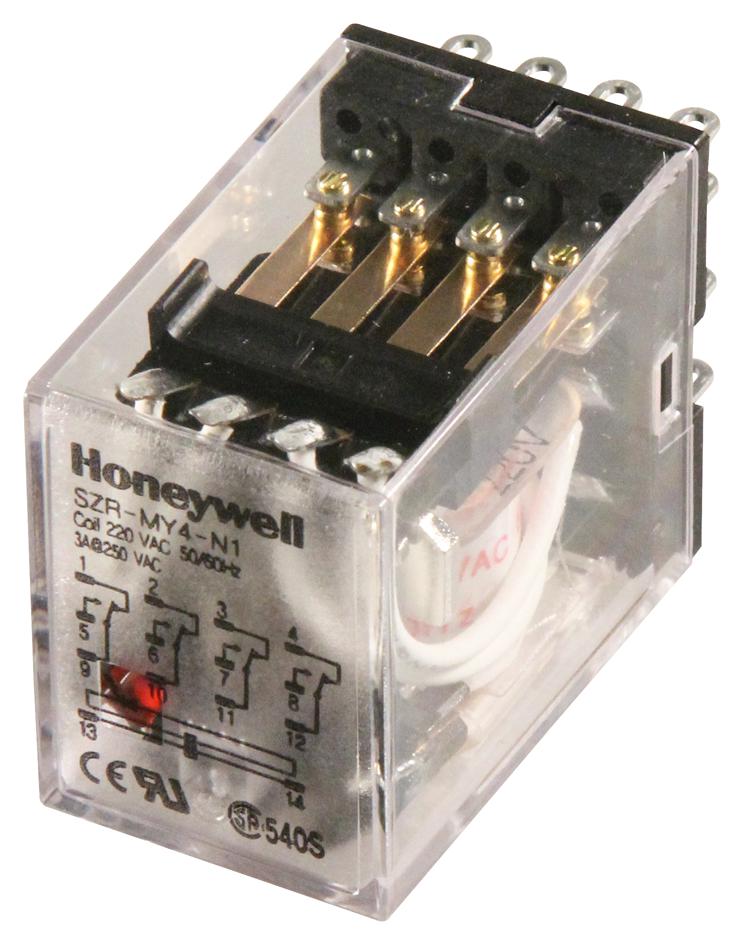

Honeywell SZRMY4N1AC220V Power Relay
The Honeywell SZR-LY Series power relays are versatile general-purpose components designed for control panels, machine tools, and elevator systems. They feature a small package size, high reliability, and quick response times up to 25 ms. Equipped with silver cadmium oxide contacts and optional LED indicators, these relays support both AC and DC loads up to 10A, with high dielectric strength of 1,800 Vac. They are designed for durable operation in vibration and shock-prone environments, offering varied configurations including surge protection and multiple contact options for reliable industrial control applications.
Honeywell SZRMY4N1AC220V Power Relay Specifications:
- Contact Material: Silver Cadium Oxide
- Contact Resistance: Max. 50 MOhm
- Operate Time: Max. 25 ms
- Release Time: Max. 25 ms
- Mechanical Life: 18,000 operations/hour
- Electrical Life: 1,800 operations/hour
- Insulation Resistance: Min. 100 MΩ at 500 Vdc
- Dielectric Withstand Voltage: 1,800 Vac (terminals), 1,000 Vac (contacts)
- Vibration Resistance: 10 Hz to 55 Hz at 1.0 mm amplitude
- Shock Resistance: Mechanical 1,000 m/s²; Malfunction 200 m/s²
- Weight: DPDT approx. 35 g, 4PDT approx. 65 g
- Load Ratings: 10A resistive, 7.5A inductive at 110 Vac; 10A resistive, 5A inductive at 24 Vdc
- Coil Ratings: 6V, 12V, 24V, 48V, 100V; AC and DC options
- Operating Voltage Range: 5 V to 240 V depending on model
- Response Time: Max. 25 ms
- Durability: Mechanical 50 million operations, Electrical 500,000 operations
Buy the Honeywell Series SZR Power Relay: SZRMY4N1AC220V
Purchase Honeywell SZRMY4N1AC220V power relay online today to ensure dependable switching performance in your control panels or industrial equipment. With a compact design, high dielectric strength, fast response time, and optional surge protection, this relay offers robust operation under vibration and shock conditions. Its versatile contact ratings support resistive and inductive loads up to 10A, suitable for various automation and control applications. Experience reliable, long-lasting performance with Honeywell's trusted industrial components, easily ordered through our online store for prompt delivery and excellent customer service.
Get Honeywell SZRMY4N1AC220V today—built for precision and long-lasting durability, ideal for industrial automation and stable control systems.
Frequently Asked Questions
Where can I buy Honeywell SZRMY4N1AC220V?
You can click on the BUY or RFQ button to purchase SZRMY4N1AC220V from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SZRMY4N1AC220V?
You can download the SZRMY4N1AC220V datasheet or visit the Honeywell website for support.
Who is the manufacturer of SZRMY4N1AC220V?
Honeywell
