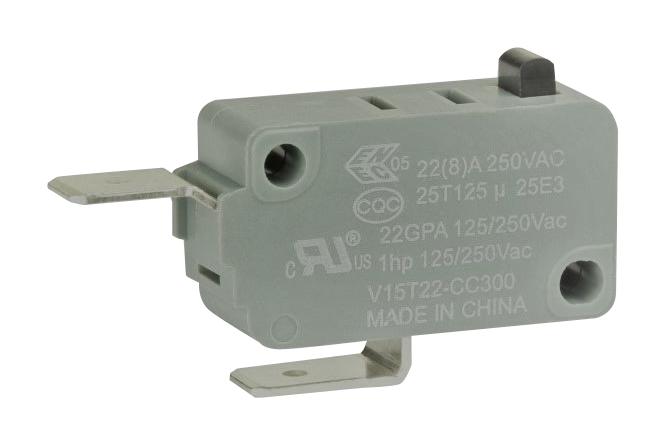

Honeywell V15T22CC300 Micro Switch
The Honeywell V15 Series Micro Switch is a reliable electromechanical switch designed for various applications requiring high durability and precision. It features multiple circuit configurations including SPDT, SPNO, and SPNC, with operating forces ranging from 0.15N to 3.92N. The switch offers options for quick connect, push-in terminals, and screw mounting, with certifications such as UL, cUL, ENEC, and CQC. Suitable for appliances, vending machines, and industrial equipment, it has a mechanical life exceeding one million cycles and broad temperature ratings from -25°C to 150°C. Available with gold contacts and cadmium-free options, it ensures versatile usage and global compliance.
Honeywell V15T22CC300 Micro Switch Specifications:
- Circuitry: SPDT, SPNO, SPNC
- Operating Force: 0.15 N to 3.92 N [15g to 400 g]
- Terminations: quick connect 6,35 mm x 0,80 mm, push-in terminals, screw terminals
- Actuators: pin plunger, integral lever options
- Agency Certification: UL, cUL, ENEC, CQC
- Electrical Ratings: 5A, 10A, 16A, 22A, 26A at 125V/250V AC
- Temperature Rating: -25°C to 150°C depending on model
- Mechanical Life: over 1 million cycles (except for 200g versions 500,000 cycles)
- Contact Material: silver, gold-plated options available
- Housing Material: PBT thermoplastic or PET high-temperature plastic
- Dimensions: Mounting holes metric and USA standards, individual models specific
- Mounting: Via mounting holes suitable for #4 screws or 3mm pins
- Standards: UL, cUL, ENEC, CQC certified, cadmium-free variants available
Buy the Buy Honeywell Micro Switch Series V15 Part Number V15T22CC300 Online
Purchase the Honeywell Micro Switch Series V15 online for dependable performance in automation, appliances, and industrial equipment. This switch offers durability with over one million cycles, broad temperature ratings from -25°C to 150°C, and versatile configurations including SPDT, SPNO, and SPNC. Suitable for power washers, vending machines, and control panels, it features options for quick connect, screw, or push-in terminals. Certified by UL, cUL, ENEC, and CQC, it ensures compliance and high-quality control in diverse environments. Order now for fast delivery and exceptional reliability for your projects.
Get Honeywell V15T22CC300 today—built for precision and long-lasting durability in automation and industrial control applications.
Frequently Asked Questions
Where can I buy Honeywell V15T22CC300?
You can click on the BUY or RFQ button to purchase V15T22CC300 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part V15T22CC300?
You can download the V15T22CC300 datasheet or visit the Honeywell website for support.
Who is the manufacturer of V15T22CC300?
Honeywell
