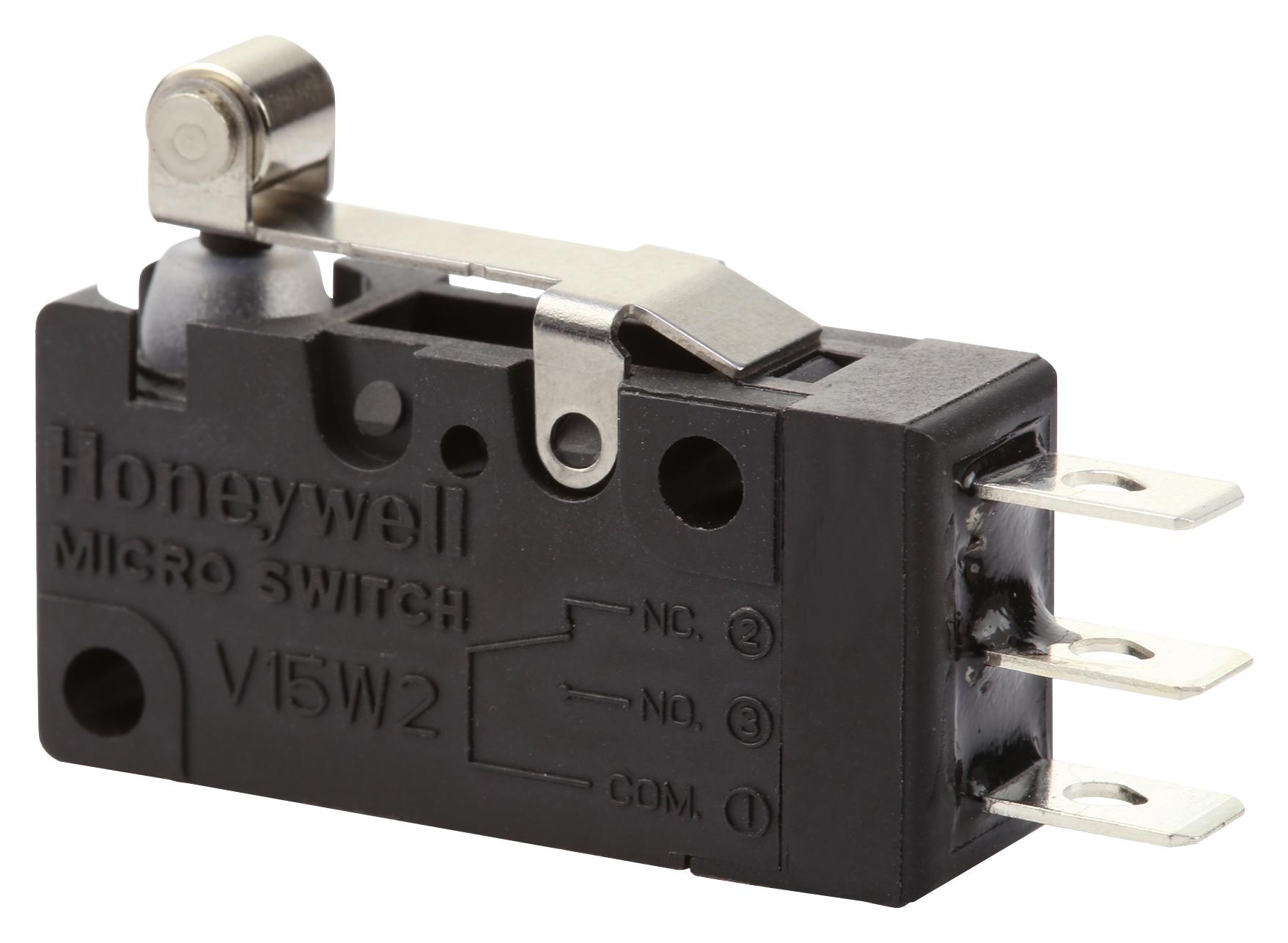

Honeywell V15W2EZ200A05W21 Hazardous Location Switch
The Honeywell V15W2 Series basic switch is engineered for hazardous environments, rated IP67 and approved for Zone 2 explosive atmospheres. Featuring snap-action contacts, it ensures precise switching with high durability over 1 million cycles. Its robust design includes quick-connect terminals, versatile actuators, and gold contact options, suitable for refrigeration, HVAC, and industrial valve control. Certified globally with IEC Ex, UL, cUL, ENEC, and CQC approvals, this switch offers reliable performance in temperature ranges from -25°C to +85°C, making it ideal for safety-critical applications requiring environmental sealing and high electrical ratings.
Honeywell V15W2EZ200A05W21 Hazardous Location Switch Specifications:
- Housing Material: PBT thermoplastic polyester
- Contact Material: Silver alloy
- Sealing: IP67 equivalent (terminals sealed, exposure possible)
- Operating Temperature: -25°C to +85°C
- Mechanical Life: over 1,000,000 cycles
- Electrical Ratings: 5A, 125/250 Vac, UL, cUL, ENEC, CQC certified
- Dielectric Strength: 1000 Vac for 1 minute between open contacts
- Switch Resistance: max 50 mOhm
- Insulation Resistance: min 100 MOhm (500 Vdc for 1 min)
- Actuator Options: Pin plunger, roller, and specialty levers
- Terminals: Quick-connect 4.8 mm × 0.5 mm
- Agency Certifications: IEC Ex, UL, cUL, ENEC, CQC
- Ambient Temperature Range: -25°C to 85°C
Buy the Honeywell Series V15W2 Hazardous Location Switch: V15W2EZ200A05W21
Purchase the Honeywell V15W2EZ200A05W21 hazardous location switch online today to ensure safety and durability in explosive atmospheres. This sealed IP67 switch offers high electrical ratings of 5A at 125/250 Vac, suitable for refrigeration, HVAC, and industrial valve control. With over one million mechanical cycles, quick-connect terminals, and a temperature range of -25°C to +85°C, it guarantees consistent, safe, and reliable performance in demanding environments. Order now for fast delivery and improved safety compliance.
Get Honeywell V15W2EZ200A05W21 today—built for hazardous environments and reliable operation in tough industrial settings.
Frequently Asked Questions
Where can I buy Honeywell V15W2EZ200A05W21?
You can click on the BUY or RFQ button to purchase V15W2EZ200A05W21 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part V15W2EZ200A05W21?
You can download the V15W2EZ200A05W21 datasheet or visit the Honeywell website for support.
Who is the manufacturer of V15W2EZ200A05W21?
Honeywell
