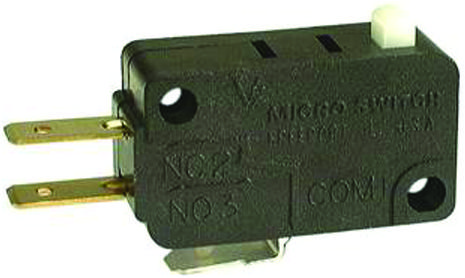

Honeywell V71B37D8 Micro Switch
Honeywell's MICRO SWITCH V7 Series miniature switches are designed for long-term reliability with a rugged thermoplastic housing. Suitable for applications like on/off limits, presence sensing, or embedded pressure and temperature controls, these switches feature a versatile actuator range including pin plungers and auxiliary levers. They operate with forces from 15 g to 397 g and can handle electrical loads up to 25 A, while withstanding harsh environments with temperature ranges from -40°C to 175°C. Certified by UL, CSA, and ENEC, these switches deliver high performance, durability, and design flexibility for industrial automation, vending machines, microwave interlocks, and pressure sensing systems.
Honeywell V71B37D8 Micro Switch Specifications:
- Housing Material: High strength thermoplastic
- Contact Material: Silver, gold plated, gold alloy
- Operating Force: 0.25 N to 3.9 N (15 g to 397 g)
- Electrical Ratings: 0.1 A to 25 A, 125 Vac, 250 Vac, 277 Vac
- Temperature Range: -40°C to 175°C [-40°F to 347°F]
- Mechanical Life: Up to 10 million cycles
- Actuators: Pin plunger, integral lever, auxiliary lever options
- Agency Certifications: UL, CSA, ENEC
- Housing: Rugged thermoplastic
- Mounting: Quick connect, PCB terminals, 3.1 mm holes
- Differential Travel: 0.05 - 0.25 mm
Buy the Honeywell Series V7 Micro Switch: V71B37D8
Purchase the Honeywell V71B37D8 micro switch online today for reliable performance in harsh conditions. This versatile switch features a rugged thermoplastic housing, operating forces from 15 g to 397 g, and electrical ratings up to 25 A. Certified by UL, CSA, and ENEC, it is ideal for automation, vending, microwave interlocks, and pressure sensing systems. With a long mechanical life of up to 10 million cycles, it provides dependable, durable operation for demanding industrial applications. Order now for fast delivery and expert support.
Get Honeywell V71B37D8 today—built for precision, durability, and flexible applications in demanding industrial environments.
Frequently Asked Questions
Where can I buy Honeywell V71B37D8?
You can click on the BUY or RFQ button to purchase V71B37D8 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part V71B37D8?
You can download the V71B37D8 datasheet or visit the Honeywell website for support.
Who is the manufacturer of V71B37D8?
Honeywell
