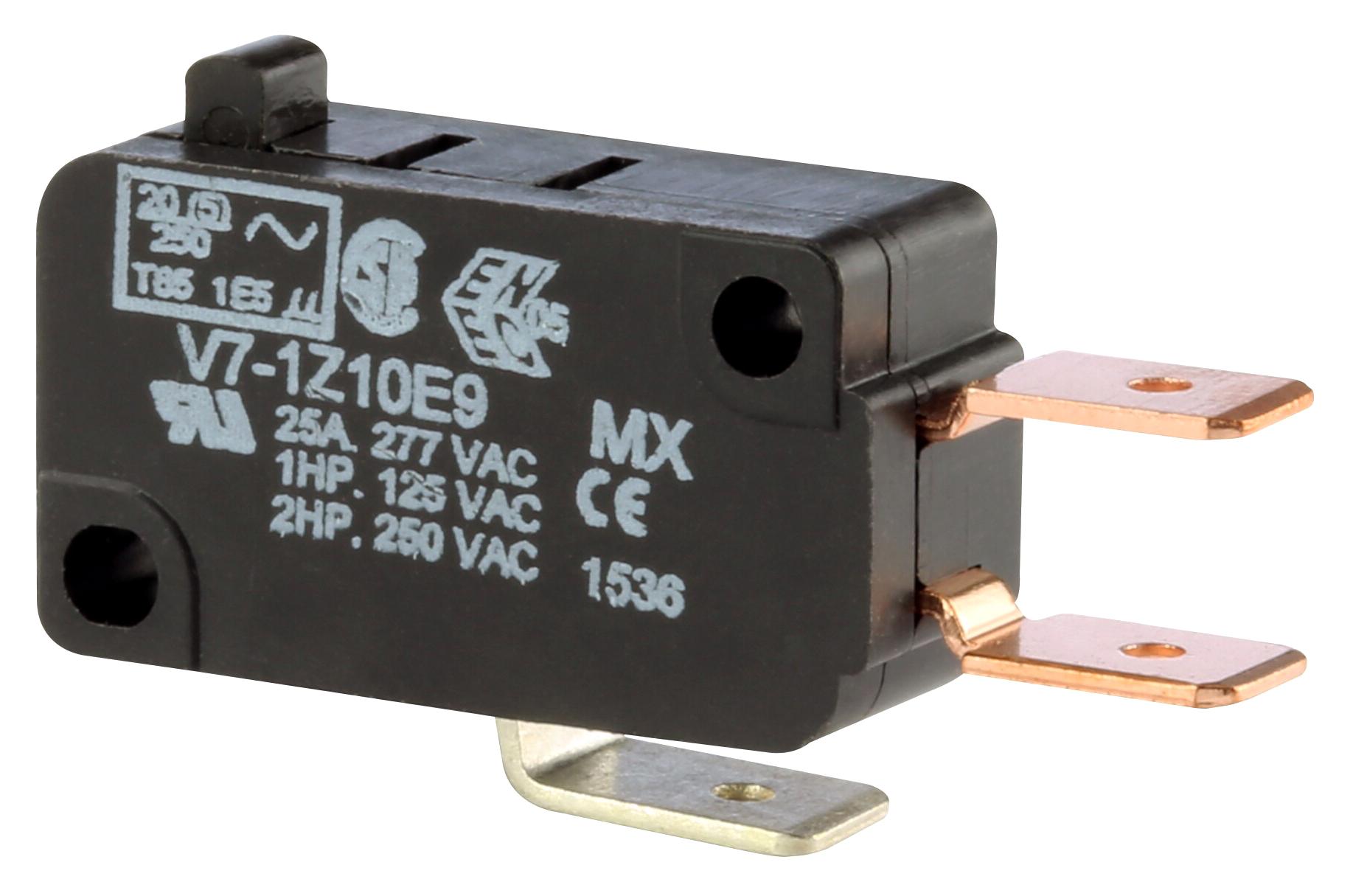

Honeywell V71Z10E9 Micro Switch
Honeywell's V7 Series miniature switches are designed for high reliability, capable of 10 million cycles, with a thermoplastic housing for durability. They feature various actuators including pin plungers and integral levers, suitable for control of electrical loads from less than 0.1 A to 25 A. Certified by CSA, UL, and ENEC, these switches operate from -40°C to 85°C with options up to 175°C, making them ideal for vending, appliances, and refrigeration applications, offering versatile contact types and mounting options for diverse industrial needs.
Honeywell V71Z10E9 Micro Switch Specifications:
- Housing Material: Glass-filled PCT polyester
- Actuators: Pin plunger, integral lever options
- Electrical Ratings: 0.1 A to 25 A, 125 Vac / 250 Vac / 277 Vac
- Operating Force: 15 g to 397 g
- Operate Temperature Range: -40°C to 85°C, options up to 175°C
- Mechanical Life: Up to 10 million cycles
- Certifications: CSA, UL, ENEC, RoHS compliant
- Mounting Pattern: 22.2 mm x 10.3 mm
- Circuitry Options: SPDT, SPST-NC, SPST-NO
- Terminal Types: Quick connect, PCB, others
Buy the Buy Honeywell V7 Series Micro Switch Part Number V71Z10E9 Online
Purchase the Honeywell V7 Series Micro Switch part number V71Z10E9 online now to ensure your control systems operate efficiently and reliably. With capabilities to switch up to 25 A, these miniature switches are perfect for vending machines, household appliances, and refrigeration systems. Certified globally by CSA, UL, and ENEC, they offer durable, long-lasting performance. Choose from a variety of actuators and contact configurations to match your specific application needs. Enjoy fast delivery when you order today and keep your projects on track with trusted quality.
Order your Honeywell Series V7 switch part number V71Z10E9 today and enhance your equipment with reliable, high-performance micro switches suited for demanding industrial applications.
