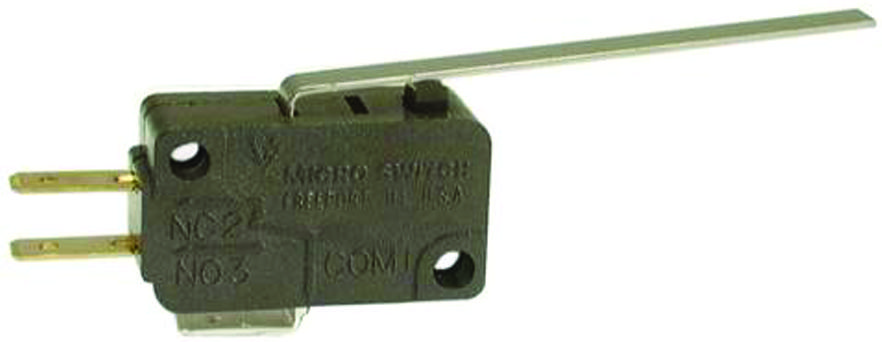

Honeywell V76B19D8057 Miniature Switch
The V7-6B19D8-057 is a single-pole double-throw miniature switch with a leaf lever actuator and quick-connect terminals. Part of the MICRO SWITCH™ V7 series, it is suitable for both simple and precise ON/OFF operations, end-limit sensing, presence detection, and manual controls. Designed for durability, it can handle electrical loads from less than 0.1A to 25A, ensuring reliable performance in harsh environments. Its long cycle life up to 10 million cycles, along with flexible actuator and mounting options, makes it ideal for industrial automation, HVAC, medical devices, and communication systems.
Honeywell V76B19D8057 Miniature Switch Specifications:
- Circuitry: SPDT, quick connect terminals 6.35 mm x 0.81 mm
- Operating Force: 0.25 N to 3.9 N [15 g to 397 g]
- Actuators: pin plunger, integral lever, auxiliary lever options
- Agency Certification: CSA, ENEC, UL; RoHS compliant
- Operating Temperature: -40°C to 85°C [-40°F to 185°F], options for 175°C [347°F]
- Mechanical Life: up to 10 million cycles
- Contact Material: silver, gold plated, gold alloy
- Housing Material: high strength thermoplastic
- Electrical Ratings: 0.1 A up to 25 A, 125 Vac, 250 Vac, 277 Vac, 1/10 HP to 2 HP
- Mounting Hole Size: 3.1 mm
- Physical Dimensions: varies model to model with standard actuation stroke approx. 0.78 in
- Overtravel: approximately 0.12 in, Pretravel: about 0.60 in, Differential Travel: around 0.05-0.25 in
Buy the Honeywell V7-6B19D8-057 – Reliable Micro Switch for Industrial Applications
Order the Honeywell V7-6B19D8-057 miniature switch today for dependable performance in rugged applications. With UL, CSA, ENEC certifications, it offers high electrical load capacity up to 25A, ensuring versatility in automation, HVAC, medical devices, and communication systems. Its long cycle life of up to 10 million cycles reduces maintenance needs and enhances reliability. Designed with quick-connect terminals, various actuator options, and robust thermoplastic housing, this switch guarantees safety, precision, and durability in challenging environments. Buy online now for quick, secure delivery.
Get Honeywell V7-6B19D8-057 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Honeywell V76B19D8057?
You can click on the BUY or RFQ button to purchase V76B19D8057 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part V76B19D8057?
You can download the V76B19D8057 datasheet or visit the Honeywell website for support.
Who is the manufacturer of V76B19D8057?
Honeywell
