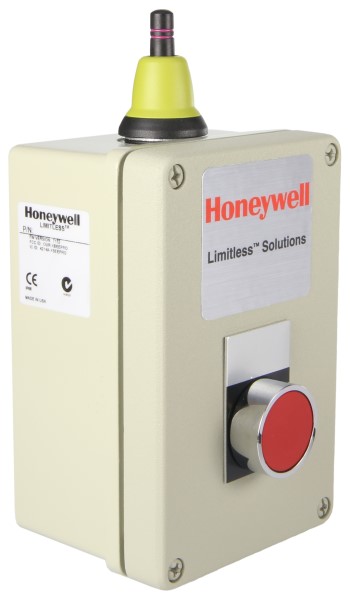

Honeywell WOI1A11BPAR Wireless Operator Interface
The Honeywell Limitless WOI Series extends the Limitless product line with a wireless operator interface, enabling control via pushbuttons or other user-selected operators. This solution is particularly beneficial for remote control and monitoring applications where wiring is not feasible. The WOI Series combines harsh-duty packaging with flexible configuration options, reducing installation and maintenance costs while eliminating issues with wire connection integrity. It is suitable for industrial applications such as CNC machinery, material handling, and conveyor systems, as well as transportation equipment.
Honeywell WOI1A11BPAR Wireless Operator Interface Specifications:
- Series name: WOI Series
- Product type: Limitless™ Operator Interface Switches
- Availability: Global, license-free bands
- Operating force momentary pushbutton: 6,2 N ±2 N [1.4 lb ±0.45 lb]
- Operating force maintained pushbutton: 7,0 N ±2 N [1.6 lb ±0.45 lb]
- Actuator type: 22 mm round flush momentary, 29 mm mushroom head momentary, 40 mm mushroom head maintained (push-pull)
- Actuator/Contact blocks: 22 mm switch design / gold contact, normally open and normally closed contact blocks
- Actuator colors: Black, Green, Red, Yellow
- Housing material: Powder coated aluminum
- Radio: WPAN 802.15.4; 2.4 GHz
- Antenna type: Direct or remote mount antenna options; Omni directional
- Signal range: Nominal 305 m [1000 ft] clear line of sight
- Battery: 3.6 Vdc Lithium Thionyl Chloride; 2/3 AA size
- Battery manufacturer: Green Energy p/n ER14335M
- Sealing: IP65
- EMC: EN 300 328, V1.7.1; EN 61326-1 (2006); EN 301 489-1, V1.8.1; EN 301 489-17, V2.1.1
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Operating temperature: -25 °C to 50 °C [-13 °F to 122 °F]
- Agency approvals and standards: FCC 15.247, Industry Canada RSS 210, ETSI, CE mark, ACMA, C-Tick mark
