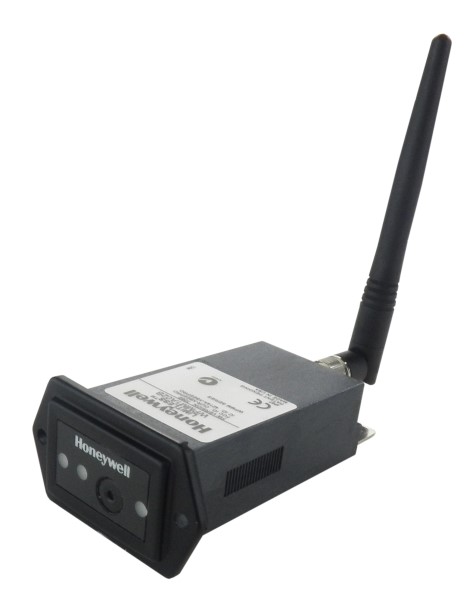

Honeywell WPMM1A02A Wireless Panel-Mount Monitor
The Honeywell WPMM Series Wireless Panel-Mount Monitor is designed for reliable wireless communication with Honeywell Limitless™ devices. It eliminates the need for wiring, reducing installation and maintenance costs. The monitor features field pairing for rapid configuration and supports various output types, making it suitable for applications such as valve position monitoring, crane control, and material handling. It is certified for global use and offers a robust solution for industrial environments.
Honeywell WPMM1A02A Wireless Panel-Mount Monitor Specifications:
- Series name: WPMM Series
- Product type: Wireless Panel-Mount Monitor Series
- Housing material: Thermoplastic LCP
- Housing type: Snap-in panel or through-hole mount
- Radio type: WPAN 802.15.4, 2.4 GHz
- Antenna connection/type: RP-SMA connection; Direct mount antenna or remote antenna; Omni directional
- Signal range: Up to 305 m [1000 ft]
- Supply voltage: 10 Vdc to 30 Vdc
- Output type: NPN, PNP, or solid state relay
- Load current NPN: 5 ma to 200 ma
- Load current PNP: 150 ma max.
- Load current SSR: 120 ma max.
- Leakage current NPN: 50 μa max.
- Leakage current PNP: 50 μa max.
- Leakage current SSR: 5 μa max. in OFF state
- Voltage drop NPN: 1.75 Vdc max.
- Voltage drop PNP: 4.5 Vdc max.
- Electrical connection: 3 terminals (plus, minus, output) 6,35 mm x 0,81 mm
- Reverse polarity protection: yes
- EMC: EN 300 328, V1.7.1; EN61326-1 (2006); EN 301 489-1, V1.8.1; EN 301 489-17, V2.1.1
- Sealing: IP67
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Operating temperature: -40 °C to 85 °C
- Agency certifications: FCC 15.247, IC RSS 210, ETSI, ACMA, ANATEL, SRRC, WPC, SII, KCC, COFETEL, IDA
