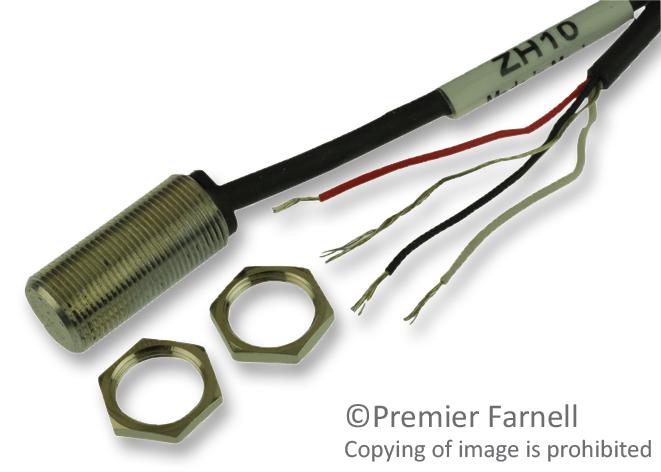

Honeywell ZH10 Hall-effect Zero Speed Sensor
The ZH10 is a robust Hall-effect zero-speed sensor designed for harsh environments, offering easy installation without rotational orientation. Its omni-directional sensing and low power consumption make it suitable for industrial automation, process control, and testing applications. Compact and durable, it features a digital open-drain output, operates between 4 and 24 Vdc, and withstands extreme temperatures from -40°C to 100°C. With sealing IP67, shock resistance of 50 Gs, and vibration tolerance of 15 Gs, it is ideal for rotary, gear, and process speed measurement in demanding settings.
Honeywell ZH10 Hall-effect Zero Speed Sensor Specifications:
- Supply voltage: 4-24 Vdc
- Supply current: 6 mA
- Output current: 30 mA (short circuit protected)
- Output voltage on: 0.6 Vdc at 25 mA load
- Output configuration: open drain MOSFET
- Voltage low: 0.4 V at 30 mA sink
- Voltage high: 30 Vdc
- Target orientation: omnidirectional
- Duty cycle: 35-65% within operating gap
- Operating frequency: 0-15 kHz
- Output rise/fall time: 40 µs (880 Ohm, 20 pF)
- Dielectric strength: 200 Vac
- Output impedance: 47-5.3 kOhm
- Operating temperature: -40°C to 100°C
- Storage temperature: -125°C
- Sealing: IP67
- Shock resistance: 50 Gs, 11 ms
- Vibration: 15 Gs, 10 Hz–2000 Hz
- Housing material: aluminum
Buy the Buy Honeywell ZH10 Hall-effect Zero Speed Sensor Part Number ZH10 Online
Enhance your automation systems with the Honeywell ZH10 Hall-effect Zero Speed Sensor, engineered for harsh environments and demanding applications. Its compact, durable aluminum housing provides IP67 sealing, shock and vibration resistance, and a wide operating temperature range. The sensor offers a digital open-drain output, omnidirectional target sensing, and low power consumption, making it suitable for rotary, gearbox, and process speed measurement. Easily installed without rotational orientation, it ensures precise speed detection in factory automation, industrial control, and testing setups, delivering dependable long-term performance.
Order your Honeywell ZH10 Series zero-speed sensor today and ensure reliable rotation detection in your industrial automation projects with the trusted low-maintenance design.
