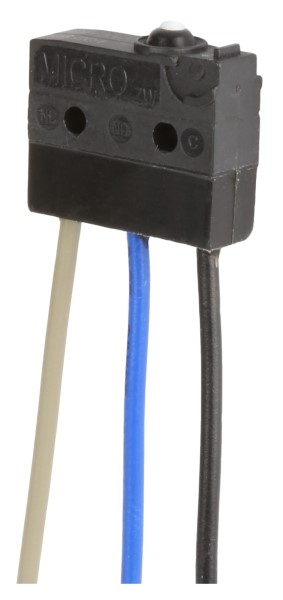

Honeywell ZW50F90AW1 Sealed Subminiature Switch
Honeywell’s MICRO SWITCH™ ZW Series is a sealed subminiature snap action switch designed for versatility and reliability in demanding applications. It can control electrical loads ranging from logic level circuits to power-duty switching (up to 6 amps and 250 Vac). The ZW Series is certified to UL, cUL, ENEC, and CQC for worldwide use and features a compact design, stainless steel levers, and various termination options. Its IP67 sealing makes it ideal for environments exposed to liquids or particulate contaminants.
Honeywell ZW50F90AW1 Sealed Subminiature Switch Specifications:
- Operating Force: 150 g or 203 g @ plunger
- Termination: PCB, solder, prewired
- Sealing: IP67 (prewired), IP00 for exposed terminals
- Actuators: pin plunger, flat lever, roller lever, sim. roller lever, stainless steel
- Agency Certifications: UL, cUL, ENEC, CQC
- Operating Temperature: -40 °C to 120 °C (terminal)
- Mechanical Endurance: 1,000,000 cycles min.
- Switch Resistance: 50 mΩ max. (terminals)
- Insulation Resistance: 100 MΩ min.
- Dielectric Strength: 1500 VRMS
- Contact Material: gold-plated silver
- Housing Material: PBT (polyester)
Buy the ZW50F90AW1 HONEYWELL Sealed Subminiature Switch | myMectronic
Purchase the Honeywell ZW50F90AW1 securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell ZW50F90AW1?
You can click on the BUY or RFQ button to purchase ZW50F90AW1 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ZW50F90AW1?
You can download the ZW50F90AW1 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ZW50F90AW1?
Honeywell
