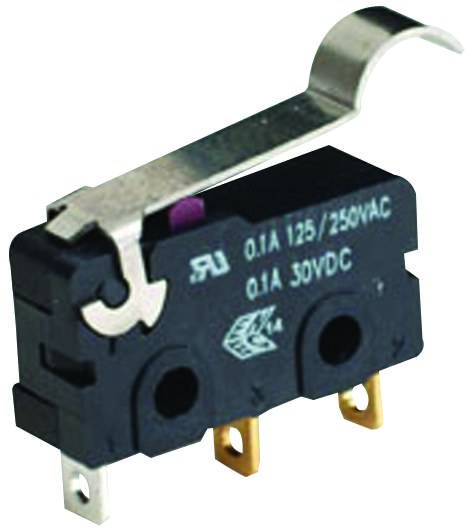

Honeywell ZX10E10C01 Subminiature Control Switch
The ZX Series MICRO SWITCH™ is a compact, lightweight subminiature switch perfect for simple or precise ON/OFF control in various devices. It features a 6.5mm high, 5.7mm wide, and 12.7mm long polybutylene terephthalate housing, making it ideal for appliances, office equipment, valves, vending machines, and transportation systems. Designed to handle electrical loads from 0.1A to 3A, it offers options for gold-plated or silver contacts, with circuitry choices including SPDT and SPST. Its durability, low cost, and versatile termination options ensure reliable operation in critical applications.
Honeywell ZX10E10C01 Subminiature Control Switch Specifications:
- Dimensions: 6.5 mm (height) x 5.7 mm (width) x 12.7 mm (length)
- Housing Material: Polybutylene terephthalate (PBT)
- Electrical Ratings: 0.1 A at 48 Vdc / 125 Vac, 3 A at 125 Vac
- Contacts: Gold-plated or silver contacts
- Circuitry: SPDT (Single Pole Double Throw) or SPST (Single Pole Single Throw)
- Operating Force: 90 g or 150 g at plunger
- Sealing: Protected to IP40 due to exposed terminals
- Temperature Range: -40 °C to 85 °C
- Mechanical Endurance: 3,000,000 cycles
- Electrical Endurance: 10,000 cycles
- Housing: Case and cover made of polyamide (nylon)
Buy the Honeywell Series ZX Subminiature Switch: ZX10E10C01
Order the Honeywell ZX Series subminiature control switch online today and enjoy reliable performance in space-constrained applications. With options for gold-plated or silver contacts, various circuitry types, and a durable housing, this switch is ideal for appliances, vending machines, and industrial controls. Its compact size ensures easy installation in tight spaces, while its high mechanical and electrical endurance guarantees long-lasting operation. Purchase now and enhance your device's control with this versatile, cost-effective switch built for precision and durability.
Get Honeywell ZX10E10C01 today—built for precise ON/OFF control with compact design and high electrical capacity.
