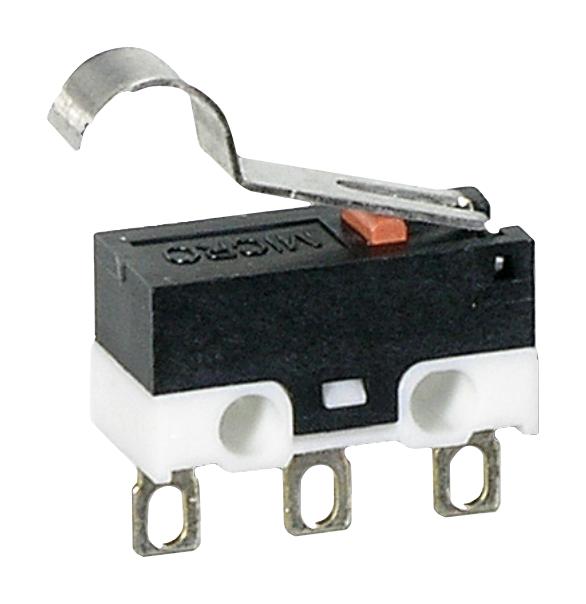

Honeywell ZX10E10E01 Subminiature Basic Switch
Honeywell’s MICRO SWITCH™ ZX Series is a subminiature snap-action switch offering a compact solution for controlling electrical loads ranging from logic-level circuits to limited power-duty switching. Available with solder or PCB terminals and a variety of lever styles, the ZX Series adapts to diverse applications. Its small package size, combined with certifications like UL, cUL, ENEC, and CQC, ensures global compatibility and reliability. The switch is ideal for industrial, commercial, and medical applications where space is limited and versatility is required.
Honeywell ZX10E10E01 Subminiature Basic Switch Specifications:
- Circuitry: SPDT
- Operating Force: 90 gf or 150 gf @ plunger
- Termination: PCB, solder
- Sealing: IP40
- Actuators: Pin plunger, levers
- Agency Certifications: UL, cUL, ENEC, CQC, RoHS compliant
- Operating Temperature: -40 °C to 85 °C
- Mechanical Endurance: 3,000,000 cycles
- Electrical Endurance: 10,000 cycles
- Switch Resistance: 100 mΩ max.
- Insulation Resistance: 100 MΩ min.
- Dielectric Strength: 1500 VRMS
- Contact Material: Gold-plated silver
- Housing Material: Polyamide (nylon)
Buy the ZX10E10E01 HONEYWELL Subminiature Basic Switch | myMectronic
Purchase the Honeywell ZX10E10E01 Subminiature Basic Switch securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell ZX10E10E01?
You can click on the BUY or RFQ button to purchase ZX10E10E01 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ZX10E10E01?
You can download the ZX10E10E01 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ZX10E10E01?
Honeywell
