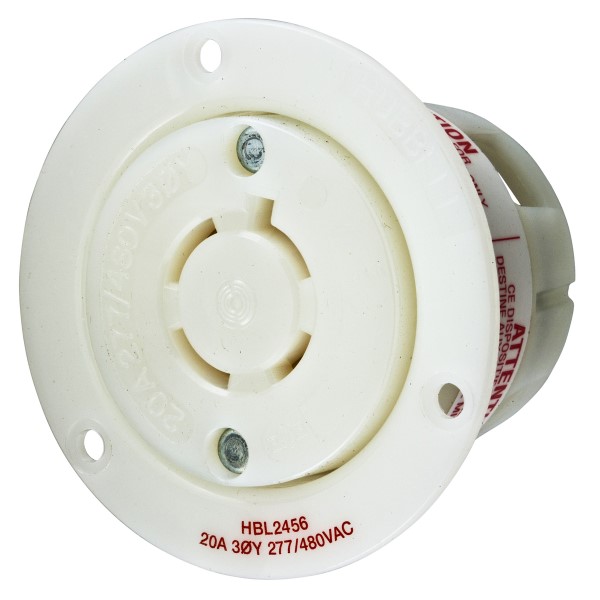

Hubbell HBL2456 Twist-Lock Flanged Receptacle
The HUBBELL HBL2456 is a robust twist-lock flanged receptacle engineered for demanding industrial environments. Constructed with a durable nylon casing and featuring back-wired connections, it ensures secure and reliable power distribution. Designed to handle a range of voltage and amperage needs, this receptacle is ideal for applications requiring a secure and dependable connection. Refer to page B-52 for accessories and page B-69 for technical information.
Hubbell HBL2456 Twist-Lock Flanged Receptacle Specifications:
- Amperage: 20A
- Voltage: 120/208, 277/480, 347/600 Volts AC
- Poles: 4
- Wires: 4
- Grounding: Non-Grounding
- Material: Black nylon casing
- Wiring: Back wired
- Cord Diameter: .350"-1.150"
- HP Rating: 2 HP (NEMA L18-20P), 5 HP (NEMA L19-20P), 3.86" (NEMA L20-20P)
- Dimensions: 2.67" x 2.67"
- Mounting: Flanged
- Angle: 120° TYP.
- IP Rating: IP20
