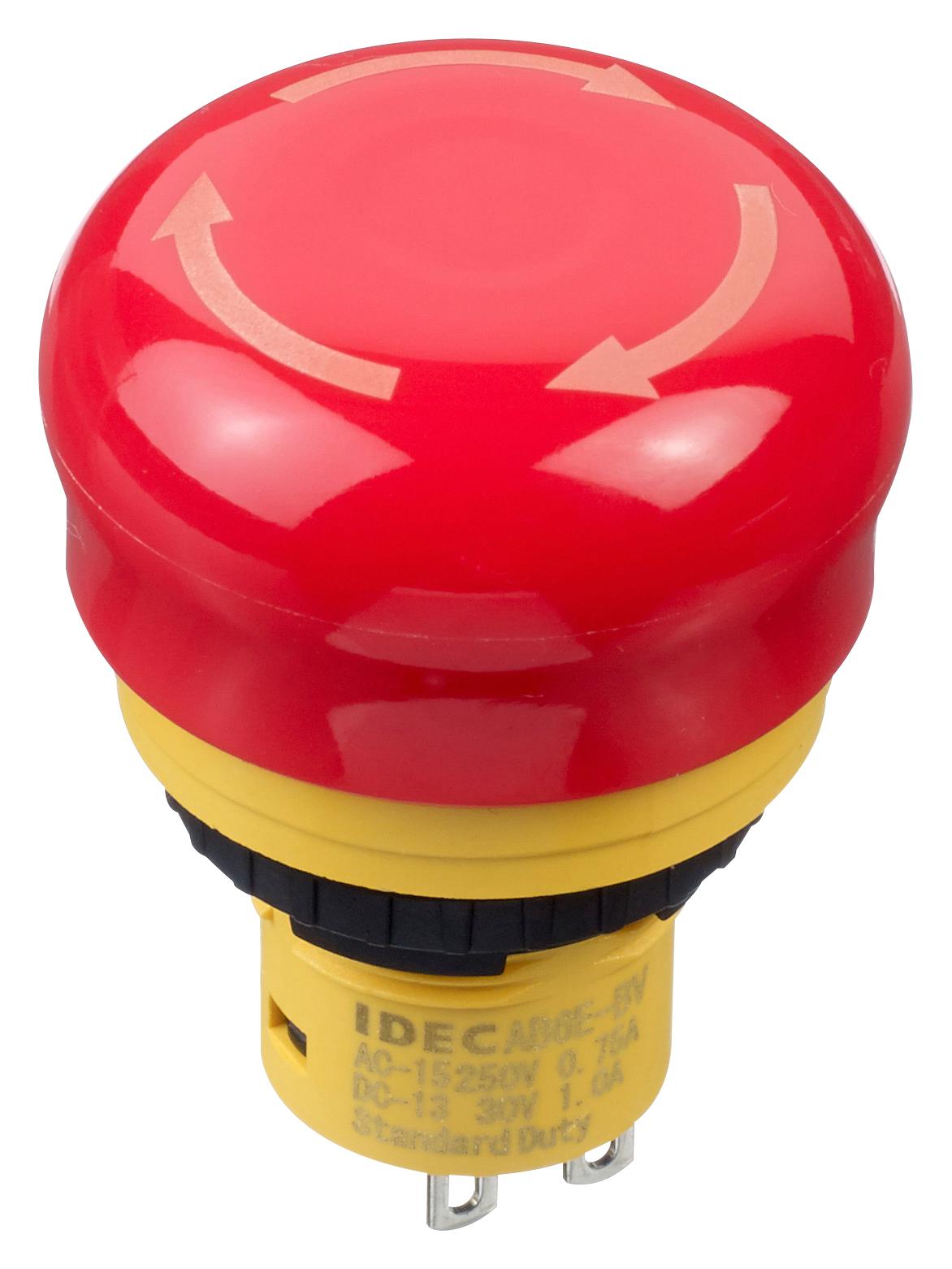

IDEC Corporation AB6E3BV02PRM Emergency Stop Switch
The X6 Series emergency stop switch features a compact unibody design with Reverse Energy Structure, ensuring the highest safety levels. It offers two reset methods—pulling or turning—with sizes of 30mm and 40mm buttons, and colors in red or yellow. Its slim profile requires minimal panel space (19.5mm depth), ideal for safety-critical equipment like food processing or semiconductor machinery. It guarantees compliance with international standards, with IP65 rated protection, and includes optional nameplates and switch guards for enhanced visibility and safety. The switch supports easy wiring, with solder terminals rated at 250V and 5A, and withstands harsh conditions with shock and vibration resistance, ensuring reliable operation over 100,000 cycles.
IDEC Corporation AB6E3BV02PRM Emergency Stop Switch Specifications:
- Type: Unibody emergency stop switch
- Button Sizes: 30mm and 40mm diameter
- Button Colors: Red, Yellow (Stop Switch)
- Reset Methods: Pull or Turn
- Depth Behind Panel: 19.5mm
- Contact Configuration: Normally Closed
- Main Contacts: 4NO or 1NO/2NC options
- Operating Temperature: -25°C to +60°C (no freezing)
- Vibration Resistance: 10-500Hz, amplitude 0.35mm, 50m/s²
- Shock Resistance: Up to 1000 m/s²
- Mechanical Life: Minimum 100,000 operations
- Electrical Life: Minimum 100,000 operations
- Ingress Protection: IP65 (IEC 60529)
- Rated Voltage and Current: 250V, 5A (resistive load)
- Terminal Style: Soldering
- Insulation Resistance: 100 MΩ minimum at 500V DC
- Standards Compliance: IEC 60947-5-1, EN 60947-5-1, UL508, CSA C22.2
Buy the Buy IDEC Emergency Stop Switch Part Number AB6E3BV02PRM Online
Secure your machinery with IDEC's high-quality emergency stop switch, featuring compact design, IP65 protection, and dual reset methods. Easy to install with solder terminals rated at 250V and 5A, this switch supports demanding industrial environments. It complies with international safety standards, ensuring safe operation with over 100,000 cycles. Use the 30mm or 40mm size options, choose between red or yellow buttons, and take advantage of optional nameplates and switch guards. Trust IDEC for durable, reliable safety components that meet global regulations.
Buy IDEC AB6E3BV02PRM now and experience unmatched reliability and safety in industrial emergency stop applications.
Frequently Asked Questions
Where can I buy IDEC Corporation AB6E3BV02PRM?
You can click on the BUY or RFQ button to purchase AB6E3BV02PRM from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part AB6E3BV02PRM?
You can download the AB6E3BV02PRM datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of AB6E3BV02PRM?
IDEC Corporation
