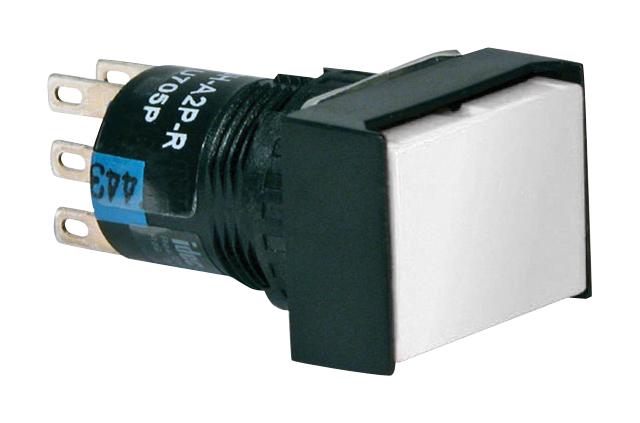

IDEC Corporation AB6HM1PW Miniature Pushbutton Switch
The AB6HM1PW is a 16mm miniature pushbutton switch featuring a compact, space-saving design with LED illumination, durable gold-clad silver contacts, and multiple mounting options. It offers IP40 dustproof and IP65 oiltight protection, with a maximum voltage of 250V AC/DC and a thermal current of 3A. Built for reliability, it supports resistive and inductive loads, has an electrical life of at least 100,000 operations, and includes safety features like reverse polarity protection. Ideal for industrial control panels, automation systems, and machinery, ensuring durability and clear visibility with bright LEDs.
IDEC Corporation AB6HM1PW Miniature Pushbutton Switch Specifications:
- Mounting Hole: 16mm (5/8 inch)
- Protection: IP40 (dustproof), IP65 (oiltight)
- Contact Material: Gold-clad silver
- Maximum Voltage: 250V AC/DC
- Thermal Current: 3A
- Load Capacity: Resistive and inductive loads up to 8A AC, 6A DC
- Electrical Life: At least 100,000 operations
- Mechanical Life: Momentary 1,000,000 operations, Maintained 100,000 operations
- Operating Temperature: -28°C to +55°C
- Vibration Resistance: 10 to 85Hz, amplitude 1.5mm
- Shock Resistance: Damage limit 50G, operating 20G
- Contact Resistance: Max 50mΩ
- Insulation Resistance: Min 100MΩ at 500V DC
- Soldering Temperature: 260°C for 20 seconds
- Switch Rating: 250V, 3A, both resistive and inductive loads
- LED: Built-in current limiting resistor, lifespan over 50,000 hours
- Appropriate for control panels, automation, and machinery indicator applications
Buy the IDEC AB6HM1PW – Reliable Pushbutton Switch for Industrial Applications
Order the IDEC AB6HM1PW miniature pushbutton switch online today and enhance your machinery and control panel reliability. Its durable gold-clad contacts, bright built-in LED illumination, and IP65 oiltight protection make it perfect for industrial automation and control systems. This space-efficient 16mm switch offers resistive and inductive load capacity up to 8A AC / 6A DC, with an electrical life exceeding 100,000 operations. Easy to install, reliable, and designed for demanding industrial environments—ensure your controls perform flawlessly by purchasing online now.
Buy IDEC AB6HM1PW now and experience unmatched reliability and high visibility for industrial control and automation projects.
Frequently Asked Questions
Where can I buy IDEC Corporation AB6HM1PW?
You can click on the BUY or RFQ button to purchase AB6HM1PW from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part AB6HM1PW?
You can download the AB6HM1PW datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of AB6HM1PW?
IDEC Corporation
