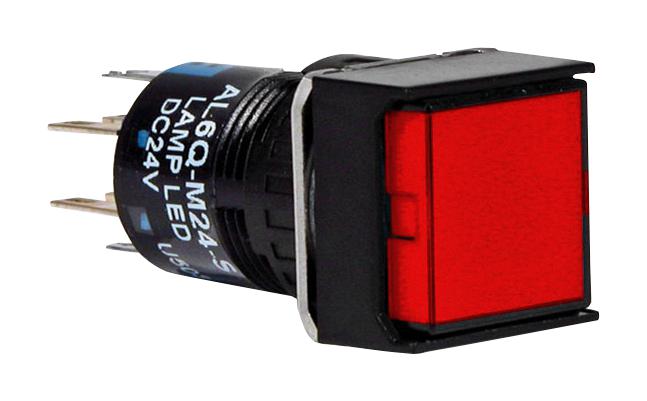

IDEC Corporation AL6QM24PR Miniature Switch
The AL6QM24PR is a versatile miniature switch and pilot device designed for space-saving applications. It features a 16mm mounting hole, LED illumination, and reliable gold-clad silver contacts for low-level switching. Suitable for various operations including momentary, maintained, selector, and emergency stop functions, it offers IP40 dustproof and IP65 oiltight protection, making it ideal for industrial control panels. The switch supports a maximum voltage of 250V AC/DC, with a thermal current of 3A and long electrical and mechanical life, ensuring durability and consistent performance in demanding environments.
IDEC Corporation AL6QM24PR Miniature Switch Specifications:
- Mounting hole diameter: 16mm (5/8 inches)
- Protection Rating: IP40 dustproof, IP65 oiltight
- Contact Material: Gold-clad silver
- Maximum Voltage: 250V AC/DC
- Thermal Current: 3A
- Operating Temperature: -55°C to +55°C
- Operating Humidity: 45% to 85% RH
- Contact Resistance: 50mΩ maximum initial value
- Electrical Life: 100,000 operations minimum
- Mechanical Life: 1,000,000 operations minimum (momentary)
- Switch Unit Dielectric Strength: 2,000V AC, 1 min
- Operating Voltage: 120V, 240V AC/DC (resistive load)
- LED characteristics: Built-in current limiting resistor, lifespan over 50,000 hours
- Certifications: UL Recognized, CSA Certified
Buy the Buy IDEC Miniature Switch Part Number AL6QM24PR Online
Order the IDEC AL6QM24PR miniature switch online today to benefit from premium low-level switching reliability, LED illumination, and durable IP65 protection. Its compact 16mm size allows easy mounting in tight spaces, ideal for industrial control panels, automation systems, and machinery. Featuring gold-clad silver contacts for consistent performance, this switch supports resistive loads up to 250V AC/DC, with a long electrical and mechanical lifespan. Purchase now to enhance your system’s efficiency with quality and dependable operation.
Buy IDEC AL6QM24PR miniature switches now and experience unmatched reliability and space-saving performance for industrial control applications.
Frequently Asked Questions
Where can I buy IDEC Corporation AL6QM24PR?
You can click on the BUY or RFQ button to purchase AL6QM24PR from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part AL6QM24PR?
You can download the AL6QM24PR datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of AL6QM24PR?
IDEC Corporation
