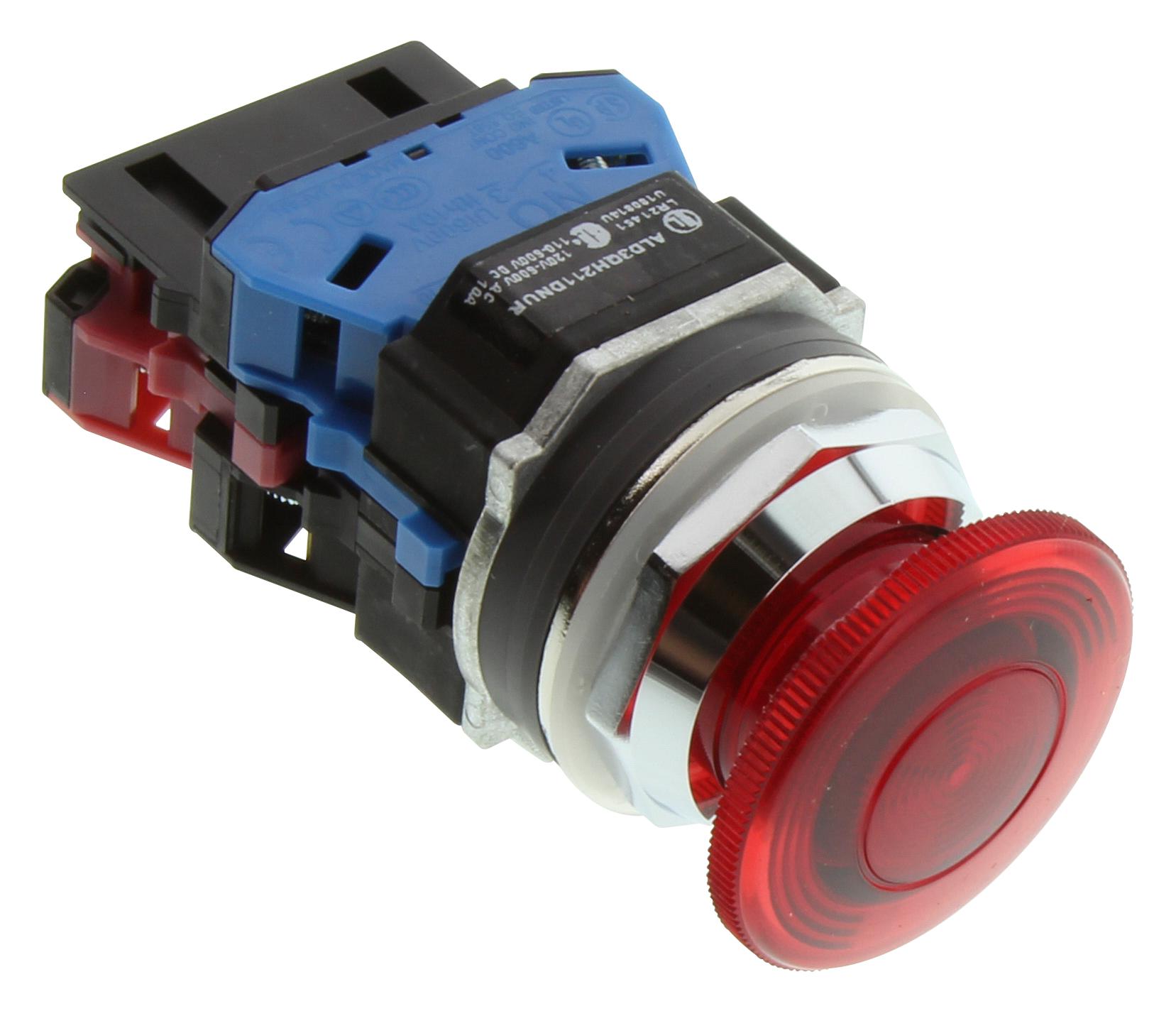

IDEC Corporation ALD3QH211DNUR Illuminated Mushroom Pushbutton
The illuminated pushbutton switch features a 40mm mushroom head with LED illumination, full voltage, and robust construction. It includes a chrome-plated zinc locking ring, die cast zinc mounting threads, steel anti-rotation rings, and self-cleaning contacts, ensuring durability in industrial environments. The switch operates at various voltages including 120V, 240V, and 480V AC, with options for LED or full voltage operation. It is conformant to safety standards EN60947-5-1, UL, CSA, and IEC, with IP65 watertight/oiltight rating, suited for panel mounting in harsh settings.
IDEC Corporation ALD3QH211DNUR Illuminated Mushroom Pushbutton Specifications:
- Button Size: 40mm mushroom head
- Illumination: LED, full voltage (120V, 240V, 480V) or LED (6V, 12V, 24V)
- Construction: Chrome-plated zinc locking ring, die cast zinc mount, steel anti-rotation rings, self-cleaning contacts
- Operating Voltage: 120V AC, 240V AC, 480V AC, or LED voltage options (6V, 12V, 24V, 120V, 240V)
- Protection Class: IP65, NEMA 4X, 13
- Standards: EN60947-5-1, UL, CSA, IEC
- Operating Temperature: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Mounting: Panel mount with metal bezel
- Contact Material: Silver
- Rated Thermal Current: 10A
- Contact Operation: Slow break, NC or NO contacts
- Dielectric Strength: 25kV AC, 1 min
- Certifications: UL Listed, CSA Certified
Buy the IDEC ALD3QH211DNUR – Reliable Pushbutton for Industrial Applications
Purchase the IDEC ALD3QH211DNUR illuminated mushroom pushbutton switch online today. Engineered with durable zinc construction and IP65 rating, it offers reliable LED or full voltage operation, suitable for harsh industrial environments. This 40mm mushroom head switch features self-cleaning contacts, conforming to safety standards EN60947-5-1, UL, and CSA. Its rugged design ensures long-lasting performance in panel mounting applications, providing easy operation and maintenance. Elevate your machinery and control panels with trusted industrial components today.
Order your IDEC ALD3QH211DNUR illuminated mushroom pushbutton switch today and enhance your control panel with industrial-grade durability and reliable operation.
Frequently Asked Questions
Where can I buy IDEC Corporation ALD3QH211DNUR?
You can click on the BUY or RFQ button to purchase ALD3QH211DNUR from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part ALD3QH211DNUR?
You can download the ALD3QH211DNUR datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of ALD3QH211DNUR?
IDEC Corporation
