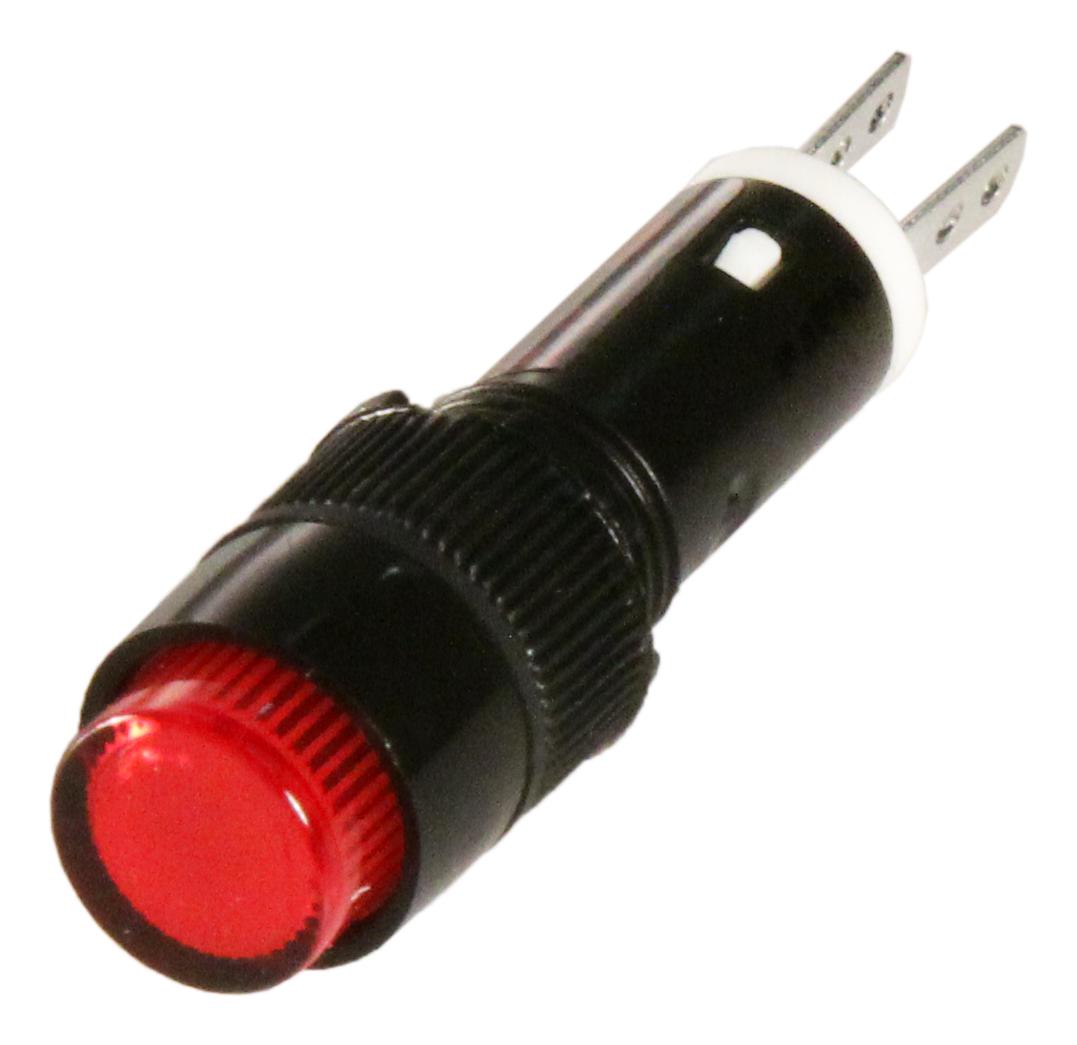

IDEC Corporation AP8M122R Miniature Pilot Light
The AP8M122R is a red miniature pilot light featuring a flat lens and space-saving design. It offers long service life, low maintenance requirements, and includes a built-in current-limiting resistor. The device has an insulation resistance of at least 10 megaohms (measured at 500V DC megger) between live and dead parts. Its operating temperature range is from -20°C to 55°C. The solder terminals can withstand a maximum temperature of 260°C for 5 seconds. The pilot light has an IP40 dustproof protection rating, making it suitable for various lighting applications.
IDEC Corporation AP8M122R Miniature Pilot Light Specifications:
- Lens Color: Red
- Lens Type: Flat
- Material: Plastic
- Size: 12mm diameter
- Operating Voltage: 6V DC ±5%, 12V DC ±10%, 24V DC ±10% (varies by model)
- Power Consumption: Approx. 1.6 VA at full voltage
- Insulation Resistance: 10 MΩ minimum at 500V DC megger
- Dielectric Strength: 2000V AC for 1 minute between live and dead parts
- Operating Temperature: -20°C to +55°C
- Protection Class: IP40 dustproof
- Terminal Type: Solder terminals withstand up to 260°C for 5 seconds
- Certifications: UL Recognized, CSA Certified
Buy the Idec AP8M122R – Reliable Red Pilot Light for Industrial Applications
Secure your industrial lighting needs with the Idec AP8M122R miniature pilot light, featuring a durable flat lens design, low maintenance, and high insulation resistance. Easy to install with solder terminals and suitable for various environments with an operating temperature range of -20°C to 55°C. Trust in its long service life, compact size, and dustproof IP40 protection rating, making it ideal for automation, control panels, and machine indicators. Purchase online today for quick delivery and reliable operation.
Buy Idec AP8M122R now and experience unmatched reliability and performance in industrial lighting and indicator applications.
