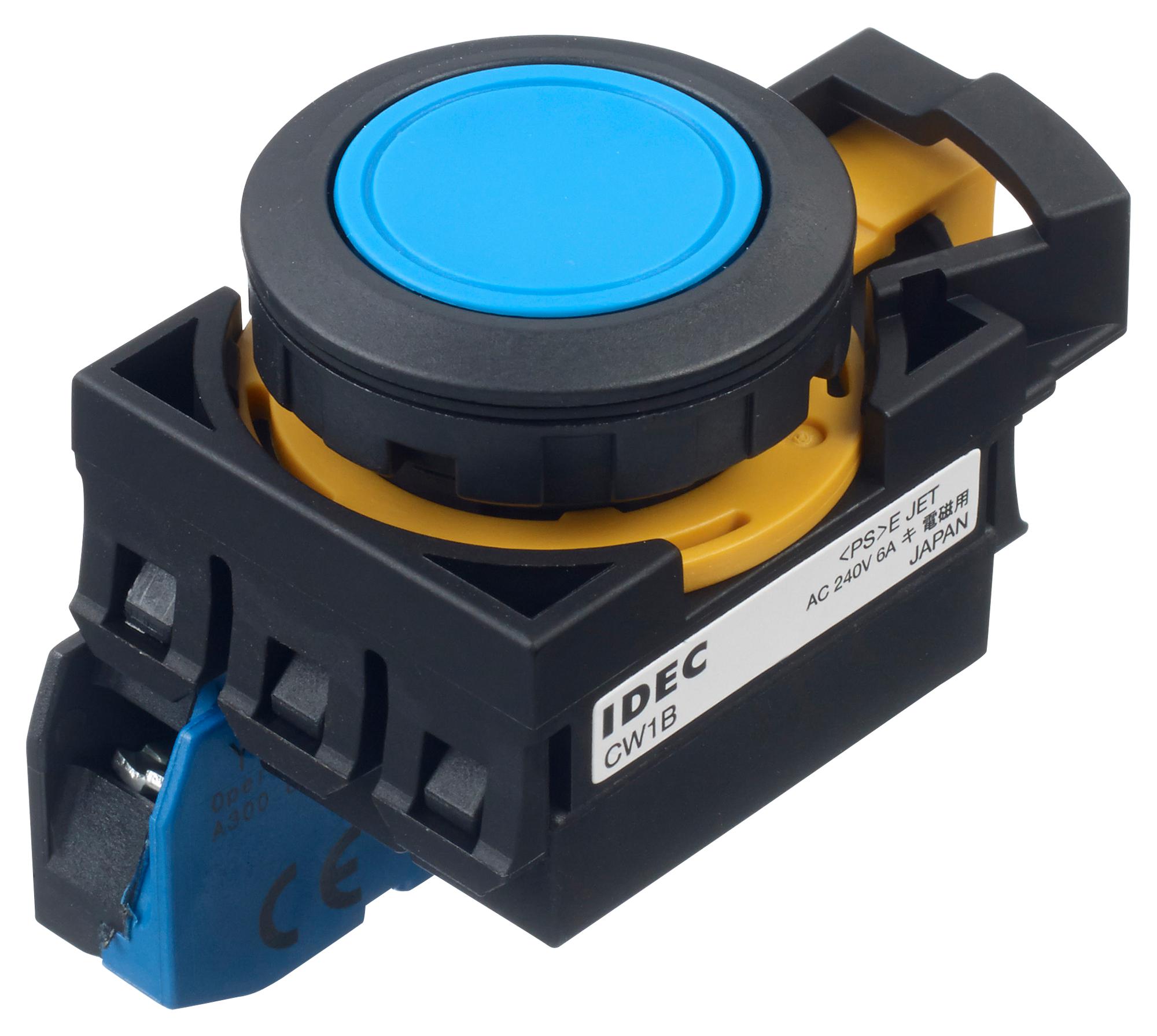

IDEC Corporation CW1BM1E10S Pushbutton Switch
The CW series switches feature a sleek, stylish design with a 2.5mm-thick bezel, offering safety, minimal dust buildup, and compatibility with control panels. They include innovative safety features like dual-action contact removal with integrated guard, IP20 finger-safe screw terminals, and high electrical ratings of 10A at 120V AC. Suitable for various industrial control applications, these switches support multiple configurations such as pushbuttons, selector switches, key switches, and pilot lights, with options for illuminated and non-illuminated variants. They meet UL, CSA, and IEC standards and are suitable for demanding environments with high safety and reliability requirements.
IDEC Corporation CW1BM1E10S Pushbutton Switch Specifications:
- Bezel Thickness: 2.5 mm
- Front Panel Depth: 39.9 mm (single contact, momentary)
- Panel Mounting Hole: 22.3 mm IEC 60947-5-1 compliant
- Contact Ratings: 10A at 120V AC
- Safety Standards: UL508, CSA 622.2 No.14, EN60947-5-1
- Temperature Range: -25°C to +60°C (non-illuminated), -25°C to +55°C (illuminated)
- Operating Humidity: 45–85% RH (no condensation)
- Protection Degree: IP20 finger-safe, IP66/67 (front panel with optional accessories)
- Operating Temperature: -40°C to +80°C (storage)
- Contact Resistance: 50 mΩ maximum
- Insulation Resistance: 100 MΩ minimum (500V DC megger)
- Rated Insulation Voltage: 250V
- Vibration Resistance: 5–55Hz, amplitude 0.5 mm
- Shock Resistance: 1000 m/s²
- Electrical Life: 250,000 operations (maintained), 1,000,000 (momentary for illuminated pushbuttons)
- Mechanical Life: 250,000 operations (maintained), 1,000,000 (momentary for illuminated pushbuttons)
Buy the Buy IDEC CW Series Switch Part Number CW1BM1E10S Online
Order the IDEC CW Series Pushbutton Switch CW1BM1E10S online today and enjoy fast delivery. Designed with safety and style, it features IP66/67 protection, a sleek 2.5mm bezel, and a 10A electrical rating. Perfect for demanding industrial environments, it supports various configurations including illuminated and non-illuminated options. Easy to install, safe, and versatile, this switch ensures reliable operation and enhances the safety of your control panels. Buy now to optimize your automation systems efficiently.
Buy IDEC CW1BM1E10S now and experience unmatched reliability and performance in industrial control applications.
Frequently Asked Questions
Where can I buy IDEC Corporation CW1BM1E10S?
You can click on the BUY or RFQ button to purchase CW1BM1E10S from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW1BM1E10S?
You can download the CW1BM1E10S datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW1BM1E10S?
IDEC Corporation
