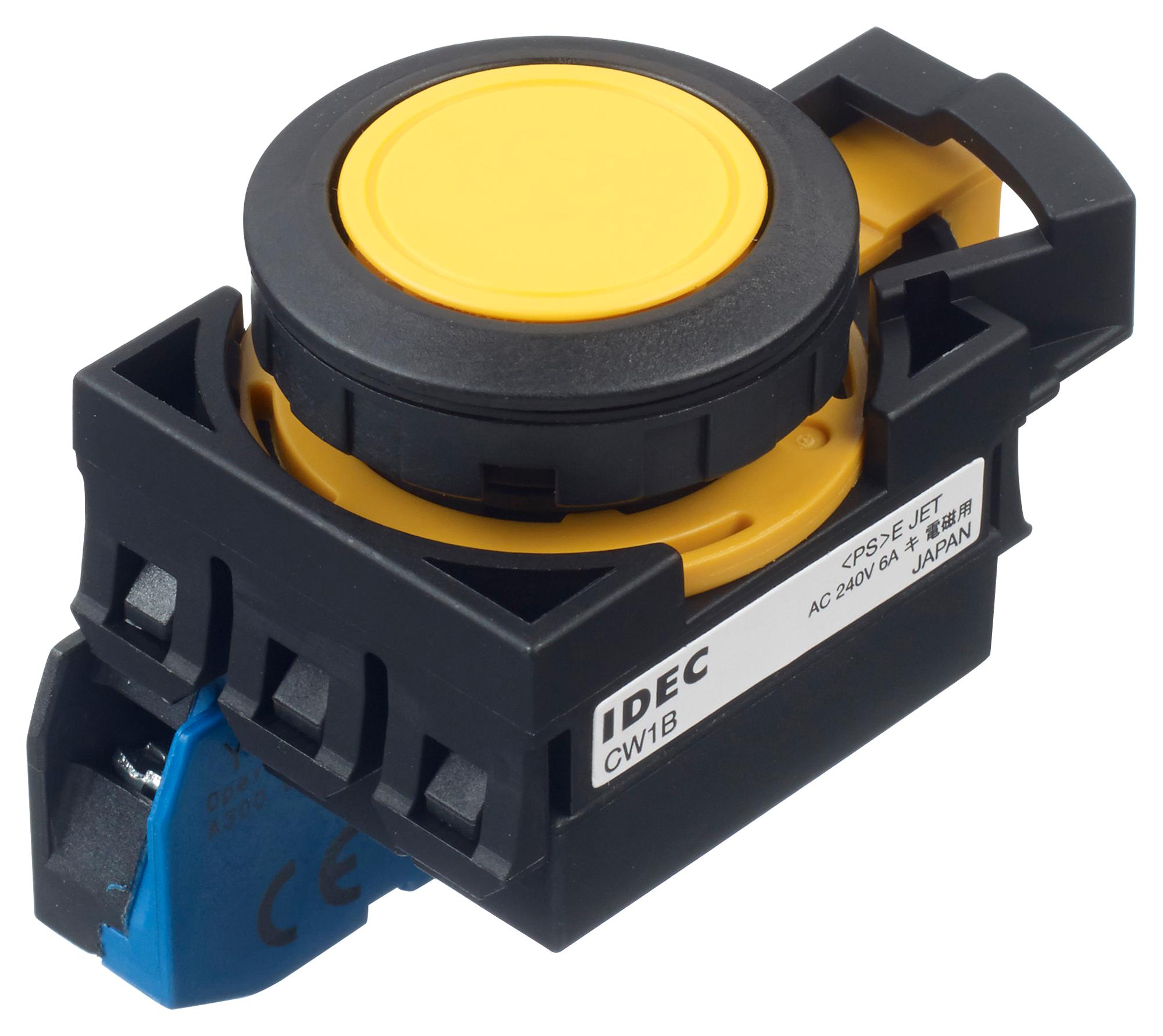

IDEC Corporation CW1BM1E10Y Control Switch
The product is a stylish and compact control switch, featuring a rugged construction with a sleek 2.5mm-thick bezel, designed for panel mounting in industrial settings. It offers multiple contact configurations including single, double, and four-contact options, with reliable electrical ratings of 120V AC, 10A resistive load. The switch incorporates safety features like finger-safe screw terminals and a lockable locking lever for secure operation. Suitable for automation and control panels, it ensures safe, durable, and efficient operation with IP66/67 and UL Type 4X protection levels.
IDEC Corporation CW1BM1E10Y Control Switch Specifications:
- Bezel Thickness: 2.5 mm
- Panel Mounting Hole Diameter: 22.3 mm compliant with IEC 60947-5-1
- Depth Behind Panel (Single Contact, Momentary): 39.9 mm
- Switching Capacity: 120V AC, 10A resistive load
- Contact Configurations: 1NO, 2NO, 2NC, 4NO, 4NC, and combinations
- Contact Resistance: 50 mΩ maximum (initial)
- Insulation Resistance: 100 MΩ minimum at 500V DC megger
- Operating Temperature: -25°C to +60°C (non-illuminated), -25°C to +55°C (illuminated)
- Operating Humidity: 45% to 85% RH (no condensation)
- Storage Temperature: -40°C to +80°C
- Degree of Protection: IP66/67, UL Type 4X from front panel
- Electrical Ratings: 10A at 120V AC, 6A at 230/240V AC
- Applicable Standards: UL508, CSA 622.2 No.14, IEC 60947-5-1
- Weight: Approx. 45-65 grams depending on configuration
- Construction: Plastic bezel with metallic options available
Buy the IDEC CW1BM1E10Y U+2013 Reliable Control Switch for Industrial Applications
Discover the IDEC control switch CW1BM1E10Y, a sleek and dependable component perfect for industrial control panels. Its compact 2.5mm bezel and multiple contact configurations provide versatile functionality. Designed with safety and durability in mind, it features finger-safe screw terminals, high IP66/67 protection, and UL Type 4X compliance. Easy to install with IEC 60947-5-1 mounting standards, ensuring reliable operation even in harsh environments. Upgrade your automation system today with this high-quality switch for safer and more efficient control.
Buy IDEC CW1BM1E10Y now and experience unmatched reliability and durable performance in your control panels.
Frequently Asked Questions
Where can I buy IDEC Corporation CW1BM1E10Y?
You can click on the BUY or RFQ button to purchase CW1BM1E10Y from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW1BM1E10Y?
You can download the CW1BM1E10Y datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW1BM1E10Y?
IDEC Corporation
