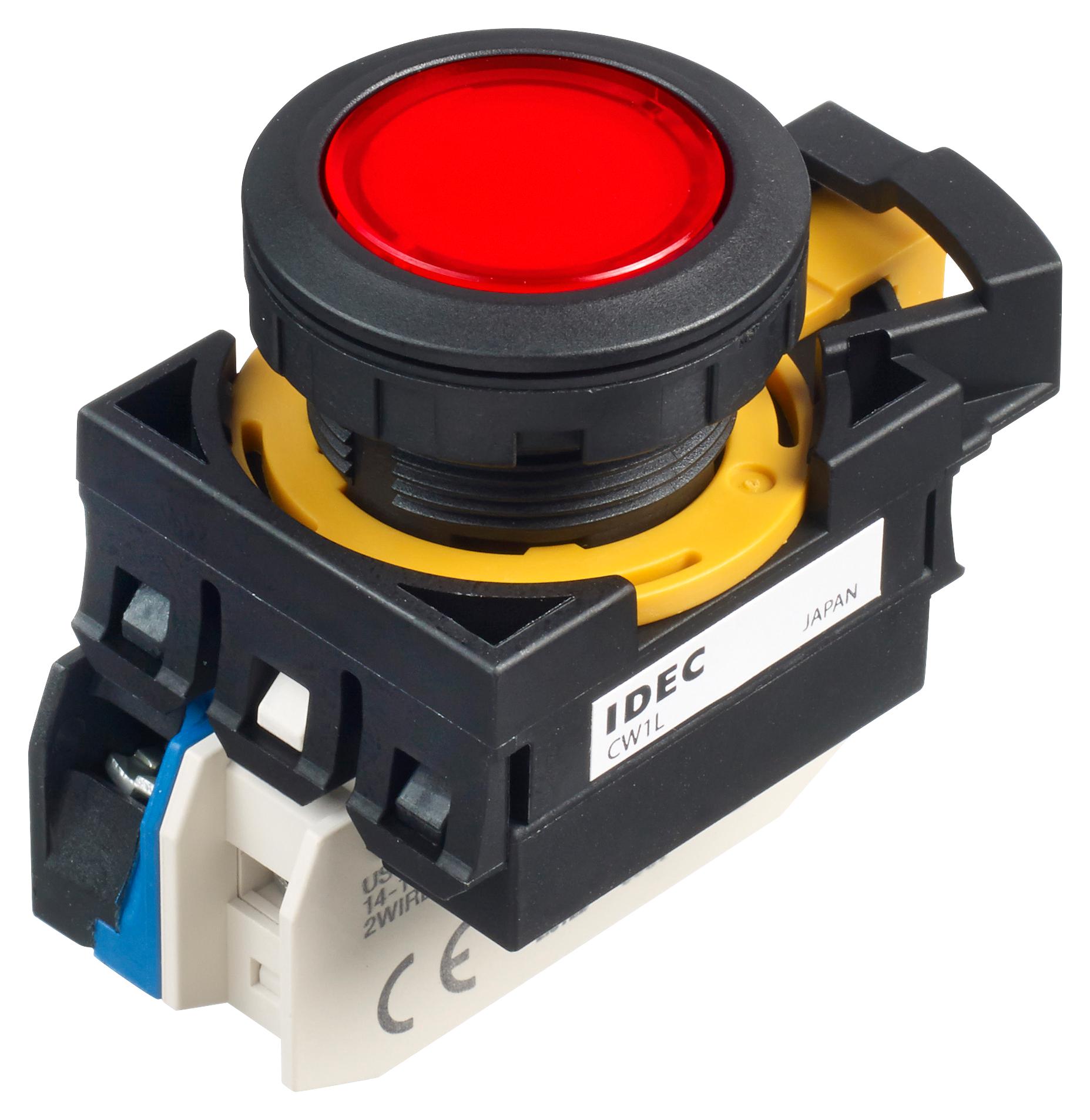

IDEC Corporation CW1LA1E10Q4R Flush Switch
The CW series includes stylish, compact flush silhouette switches, pushbuttons, pilot lights, selector switches, key selector switches, and accessories designed for panel mount safety and efficiency. Features include 2.5mm bezel thickness, minimal 39.9mm panel depth, IP66/67 protection, corrosion-resistant plastics, and a variety of contact configurations for robust industrial control applications. Suitable for safety-critical operations with direct opening NC contacts, high contact ratings up to 10A, and safety features like finger-safe screw terminals, making these switches ideal for modern automated systems and machinery control panels.
IDEC Corporation CW1LA1E10Q4R Flush Switch Specifications:
- Bezel Thickness: 2.5mm
- Panel Mounting Hole Diameter: 22.3mm IEC 60947-5-1 compliant
- Panel Depth Behind Panel: 39.9mm (single contact block), 59.9mm (double contact block)
- Contact Ratings: 10A, 120V AC resistive load
- Protection Degree: IP66/67 front panel, UL Type 4X
- Construction Materials: Plastic bezel, metal options available, finger-safe screw terminals (IP20)
- Operating Temperature: -25°C to +60°C (non-illuminated), -25°C to +55°C (illuminated)
- Vibration Resistance: 30Hz amplitude 1.5mm, 50,000 operations for switches
- Shock Resistance: 1000 m/s² damage limit
- Contact Resistance: ≤50mΩ initial, Insulation Resistance: ≥100MΩ (500V DC megger)
- Contact Configuration: Various (NO, NC, 2NO-2NC, 3NO, etc.), with direct opening NC contact for safety
- LED Modules & Accessories: Optional, rated for 6V to 240V AC/DC, with multiple illumination colors
- Conformance: UL/CSA/CE compliant, compliant with IEC 60947-5-1 standards
Buy the IDEC Series CW Switches: Switches and Pilot Lights 22mm PartCW1LA1E10Q4R
Discover the reliable IDEC series CW flush switches and pilot lights, perfect for industrial control panels. These stylish, compact devices offer IP66/67 protection, high current ratings up to 10A, and a minimal 2.5mm bezel thickness for sleek installation. Their safety features include finger-safe screw terminals, direct opening contacts, and corrosion-resistant materials, ensuring durability in demanding environments. Compatible with various control configurations, they are ideal for automation, machinery, and safety-critical systems. Purchase online now for fast delivery and professional-grade control components.
Order your IDEC Series CW switch with the efficient 22mm control panel solution today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy IDEC Corporation CW1LA1E10Q4R?
You can click on the BUY or RFQ button to purchase CW1LA1E10Q4R from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW1LA1E10Q4R?
You can download the CW1LA1E10Q4R datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW1LA1E10Q4R?
IDEC Corporation
