IDEC Corporation CW1LA2E10Q4R Control Switch
The CW series features stylish, compact flush silhouette switches with a 2.5mm bezel, offering safety features like finger-safe terminals and direct-open NC contacts. Available in illuminated pushbuttons, selector switches, and key selector switches, these devices have a depth of just 39.9mm behind the panel, suitable for tight spaces. They comply with IEC 60947-5-1 standards and offer IP66/67 protection for harsh environments. Contact ratings are 10A at 120V AC, with multiple contact configurations and optional features like locking levers and key lock mechanisms. Ideal for industrial control panels requiring safety, reliability, and sleek design.
IDEC Corporation CW1LA2E10Q4R Control Switch Specifications:
- Bezel Thickness: 2.5mm
- Panel Thickness Range: 0.8 to 3.2 mm
- Mounting Hole Compliance: IEC 60947-5-1, 22.3mm
- Depth Behind Panel: Single contact 39.9mm, Double contact 59.9mm
- Contact Ratings: 10A at 120V AC resistive load
- Protection Degree: IP66/67, UL Type 4X front
- Material: Black plastic or metallic bezel options
- Contact Configuration: 1NO, 2NO, 2NC, 1NO-1NC, 4NO, 4NC, and more
- Operating Temperature: -25°C to +60°C (non-illuminated), -25°C to +55°C (illuminated)
- Vibration Resistance: 30Hz to 55Hz, amplitude 1.5mm, 50,000 cycles
- Shock Resistance: Up to 1000m/s², 100,000-250,000 operations depending on type
- Electrical Life: 250,000+ operations for maintained type, 2,000,000+ for momentary
- Standards Compliance: UL508, CSA 622.2, IEC 60747-5-1
- Operating Voltage: 6V to 240V AC/DC depending on module
- LED Modules Available: Various colors, rated voltages, lifespan approx. 30,000 hours

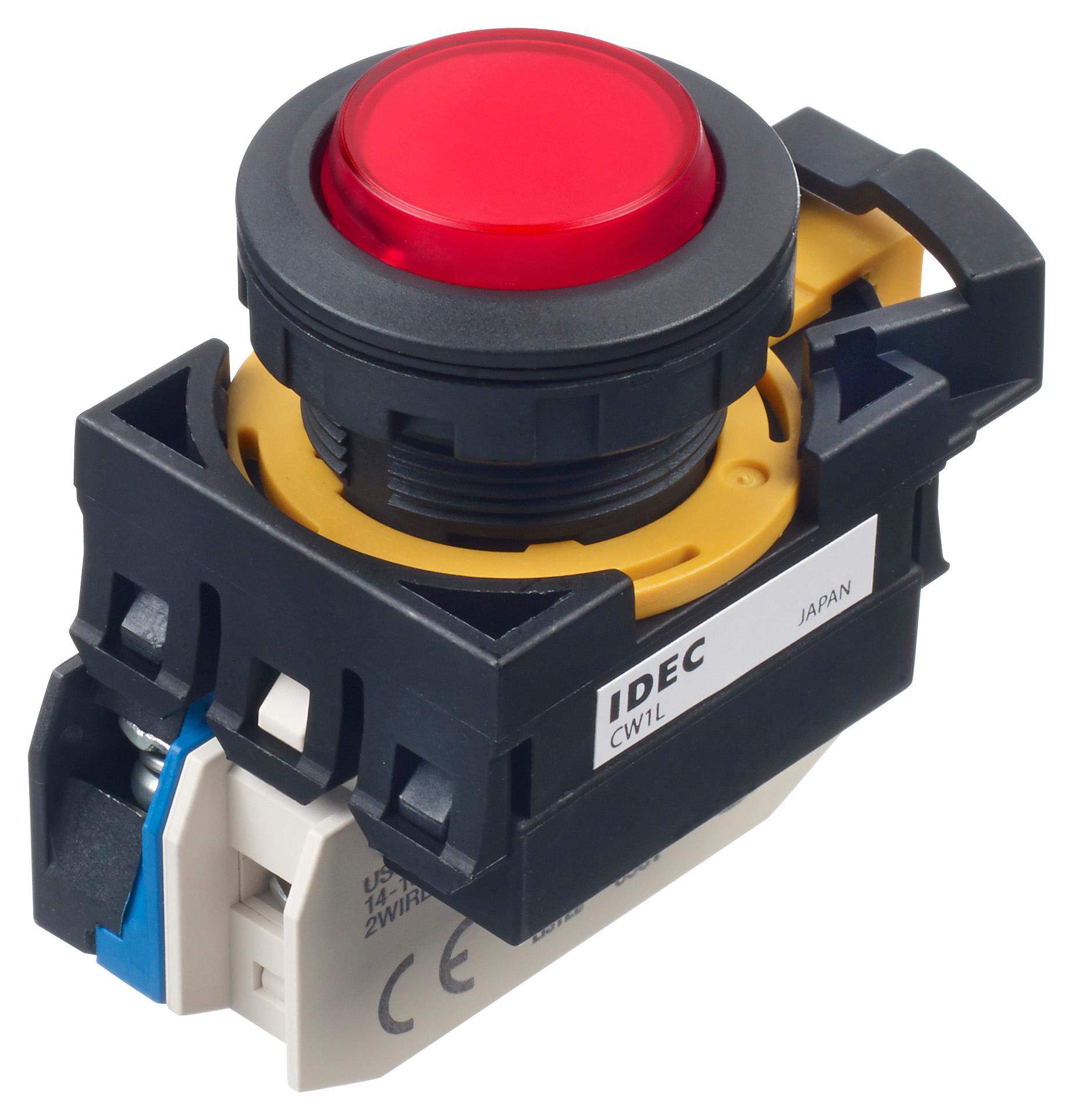

Buy the Buy IDEC CW Series Switch Part Number CW1LA2E10Q4R Online
Purchase your IDEC CW Series control switch CW1LA2E10Q4R today from our online store. Designed for safety, durability, and style, this compact switch features finger-safe terminals, multiple contact configurations, and IP66/67 protection, making it ideal for various industrial applications. Its sleek 2.5mm bezel ensures a modern look while saving space behind panels. With a rated current of 10A at 120V AC and long lifespan, it guarantees reliable performance. Order now for fast delivery and transform your control system with high-quality, safety-compliant switches.
Order your IDEC CW Series CW1LA2E10Q4R illuminated control switch today and enhance your industrial control panels with safety and sleek design.
