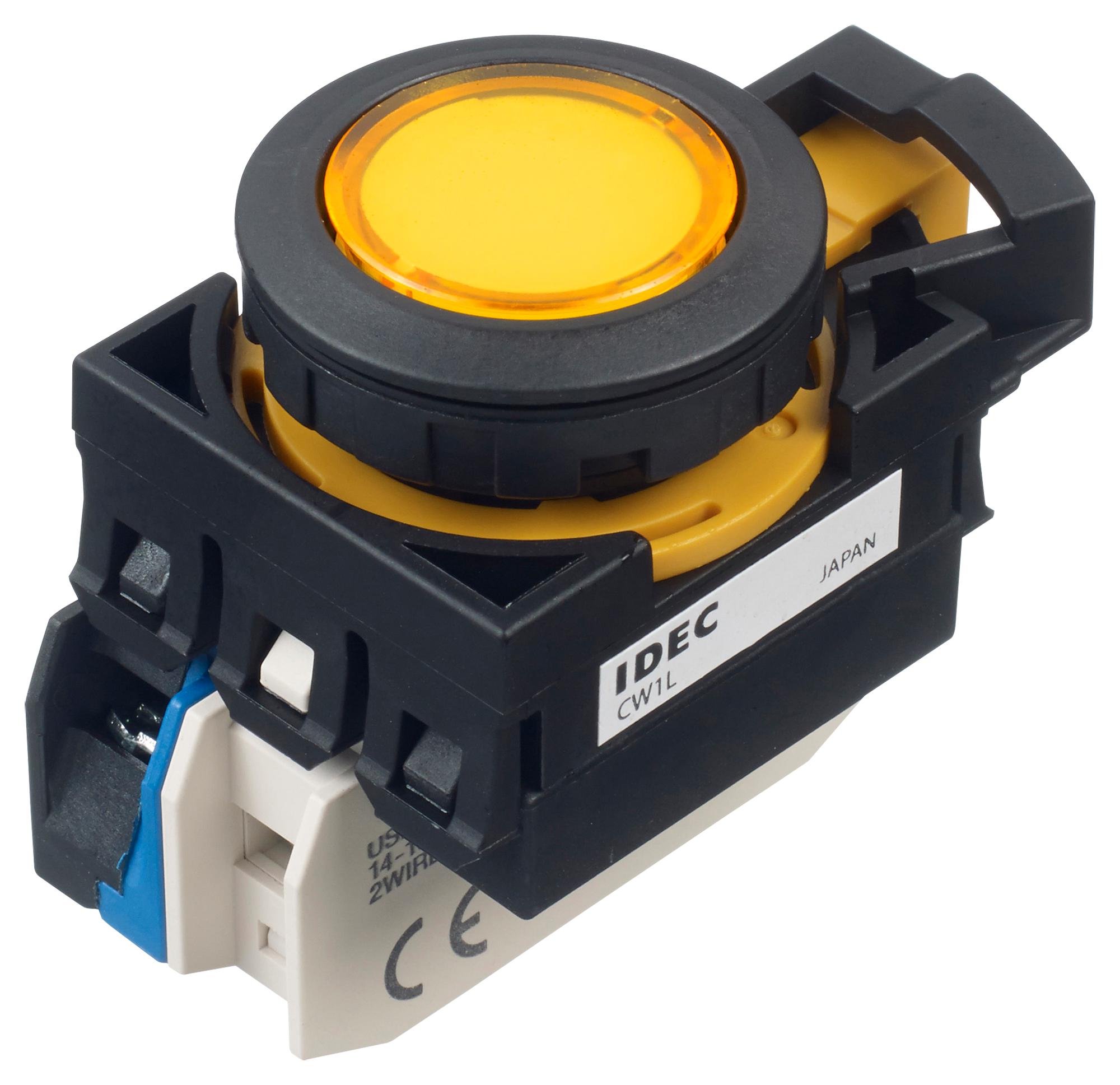

IDEC Corporation CW1LM1E10Q4Y Illuminated Pushbutton
The CW series illuminated pushbutton features a sleek 2.5mm bezel and a compact design with only 39.9mm depth behind the panel. It offers a safe, dust-resistant surface with a finger-safe screw terminal and robust construction compliant with IEC 60947-5-1 standards. Designed for industrial control, it provides various contact configurations, LED illumination options with multiple color codes, and IP66/67, UL Type 4X protection from panel front. Easy to install, it ensures reliable operation suitable for automation and manufacturing settings.
IDEC Corporation CW1LM1E10Q4Y Illuminated Pushbutton Specifications:
- Bezel Thickness: 2.5 mm
- Panel Depth Behind Panel: 39.9 mm (single contact, momentary)
- Mounting Hole Diameter: 22.3 mm IEC 60947-5-1 compliant
- Contact Ratings: 10A at 120V AC, direct opening NC contact for safety shutdown
- Protection Degree: IP66/67 from panel front, UL Type 4X
- Material: Plastic bezel, metallic bezel options available
- Operating Temperature: -25°C to +60°C (non-freezing)
- Operating Humidity: 45 to 85% RH
- Storage Temperature: -40°C to +80°C
- Contact Resistance: Max 50 mΩ (initial)
- Insulation Resistance: Min 100 MΩ at 500V DC
- Rated Insulation Voltage: 250V
- Vibration Resistance: 30 Hz, amplitude 1.5 mm, 50,000 cycles
- Shock Resistance: 1,000 m/s², 1000 cycles
- Electrical Life: ±250,000 operations (maintained), ±150,000 (momentary)
- Operational Current: 10A, maximum switching capacity
- Compliance: UL508, CSA 622.2, CE
- Designed for industrial automation, control panels, safety applications
Buy the IDEC Series CW Control: Illuminated Pushbutton CW1LM1E10Q4Y
Order the IDEC CW1LM1E10Q4Y illuminated pushbutton online today to enhance your control system with a sleek, durable, and reliable switch. Featuring IP66/67 and UL Type 4X protection, it ensures safe operation even in harsh environments. With a compact 39.9mm depth and 2.5mm bezel, it integrates seamlessly into your panel. Compatible with various LED colors and contact configurations, this switch guarantees long-lasting performance and safety compliance. Perfect for automation, machinery, and safety interlocks, order now for quick delivery and guaranteed quality.
Get IDEC CW1LM1E10Q4Y today—built for precision, safety, and long-lasting durability in industrial control panels.
Frequently Asked Questions
Where can I buy IDEC Corporation CW1LM1E10Q4Y?
You can click on the BUY or RFQ button to purchase CW1LM1E10Q4Y from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW1LM1E10Q4Y?
You can download the CW1LM1E10Q4Y datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW1LM1E10Q4Y?
IDEC Corporation
