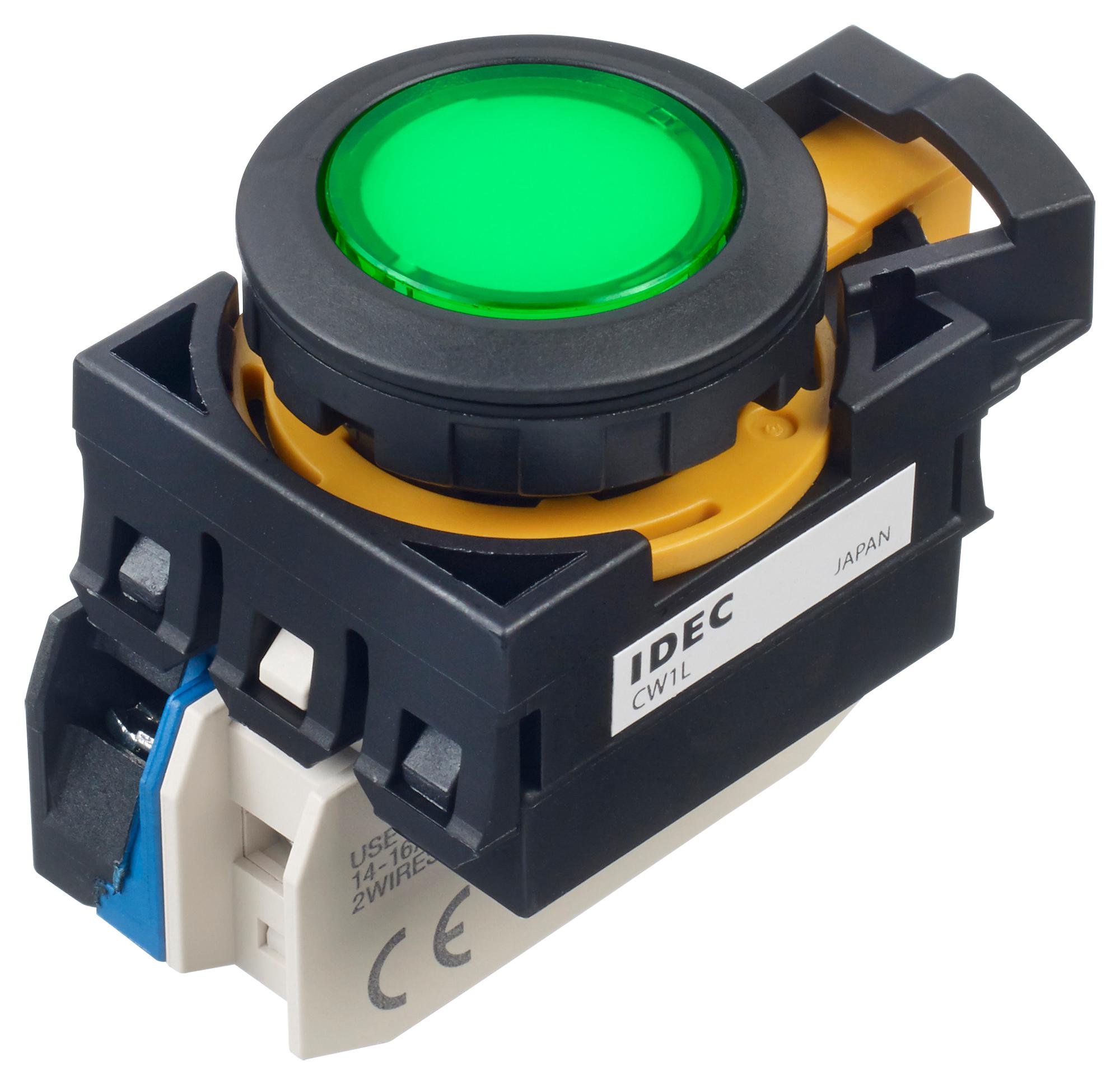

IDEC Corporation CW1LM1E10QM4G Illuminated Pushbutton
The CW series illuminated pushbutton features a sleek 2.5mm bezel, providing a stylish and space-efficient design ideal for control panels. It offers a robust construction with IP66/67 and UL Type 4X degrees of protection. The pushbutton operates with a 3.5mm travel for reliable actuation and incorporates a finger-safe screw terminal rated for 10A at 250V AC. Available with various illumination colors including amber, red, green, blue, and pure white, the device supports multiple contact configurations (1NO-1NC, 2NO, 2NC, 2NO-2NC, 4NO, 4NC). Suitable for fixed mounting in IEC-compliant panels, it ensures safety with a secure locking mechanism and a lock indicator on the locking lever. It can connect multiple contact blocks, up to three non-illuminated or two illuminated, with easy removal for maintenance. The control unit's small depth of 39.9mm behind the panel allows flexible installation, while the robust housing and contact ratings assure durability in demanding environments. The device enhances machine safety and appearance, suitable for various industrial control applications requiring reliable switching and operator visibility.
IDEC Corporation CW1LM1E10QM4G Illuminated Pushbutton Specifications:
- Bezel Thickness: 2.5mm
- Operating Travel: 3.5mm
- Protection Degree: IP66/67, UL Type 4X
- Contact Ratings: 10A at 250V AC
- Contact Configurations: 1NO-1NC, 2NO, 2NC, 2NO-2NC, 4NO, 4NC
- Mounting Hole Compliance: IEC 60947-5-1, 22.3mm
- Housing Material: Plastic (Black or Metallic Bezel options)
- Degree of Protection: IP20 finger-safe screw terminals
- Pushbutton Sizes: Round flush and extended
- LED Illumination: Amber, red, green, blue, white
- Wiring: Suitable for stranded wire up to 2.0mm², solid wire up to 1.6mm
- Maximum Load: 10A, compatible with various contact blocks
- Mounting Depth: 39.9mm behind panel
- Applicable Standards: UL508, CSA 622.2-No.14, CE, IEC 60947-5-1
- Temperature Range: -25°C to +60°C (non-illuminated), -25°C to +55°C (illuminated)
Buy the Buy IDEC Illumined Pushbutton Part Number CW1LM1E10QM4G Online
Enhance your control panel with IDEC's illuminated pushbutton featuring a sleek 2.5mm bezel, compact design, IP66/67 protection, and multiple illumination options. Designed for durability with a 10A contact rating, it supports various contact configurations for versatile operation. Easy to wire with finger-safe terminals, it offers reliable actuation with a 3.5mm travel. Install in IEC-compliant panels thanks to its 22.3mm mounting hole, making it ideal for automation and machinery control requiring visibility and safety.
Buy IDEC CW1LM1E10QM4G illuminated pushbutton now and experience unmatched reliability and performance in industrial control applications.
