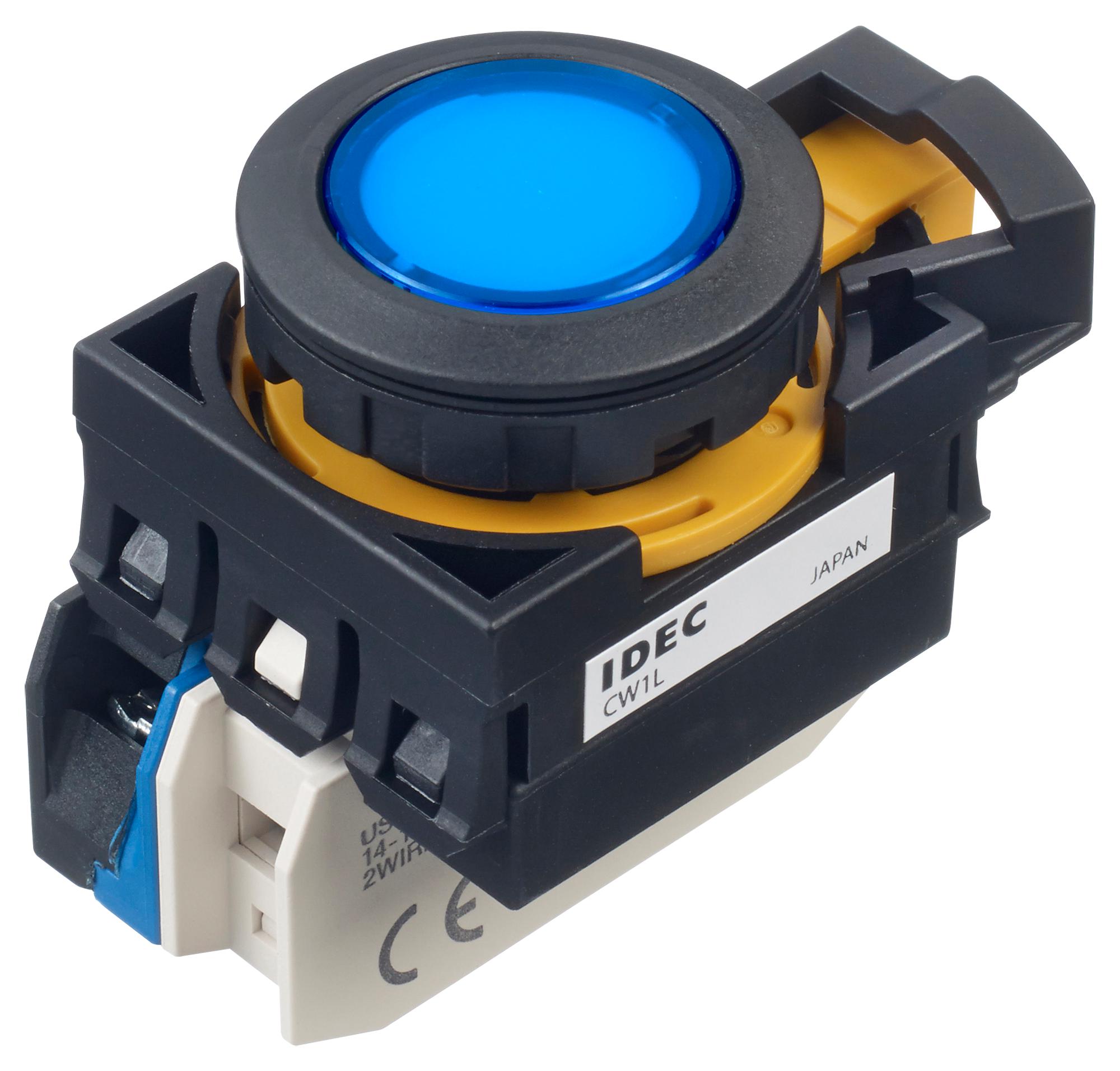

IDEC Corporation CW1LM1E10QM4S Control Switch
The CW series is a sleek, stylish control component line featuring flush silhouette switches, pushbuttons, selector switches, and pilot lights. Designed for safety and durability, these devices offer a minimal 2.5mm bezel projection, shallow 39.9mm depth behind panels, and high contact ratings of 10A at 120V AC. Their construction ensures finger-safe screw terminals and IP66/67 protection, making them suitable for industrial panels requiring reliable, safe, and aesthetic operational control in various environments.
IDEC Corporation CW1LM1E10QM4S Control Switch Specifications:
- Bezel Thickness: 2.5mm
- Panel Depth: 39.9mm (single contact, momentary)
- Mounting Hole Compliance: IEC 60947-5-1
- Switching Capacity: 10A, 120V AC
- Contact Configuration: Single and double contact blocks available
- Contact Resistance: 50 mΩ max
- Operating Temperature: -25°C to +55°C (non-illuminated), -25°C to +60°C (illuminated)
- Storage Temperature: -40°C to +80°C
- Vibration Resistance: 30Hz at 1.5mm amplitude
- Shock Resistance: 1000 m/sec²
- Degree of Protection: IP66/67 front, UL Type 4X, IP20 terminals
- Certification: UL508, CSA 622.2, CE, compliant with IEC 60947-5-1
- Current Rating: 10A resistive load
- Wire Range: Stranded wire max 2.0mm², solid wire max 1.6mm²
- Terminal Torque: 1.0–1.3 N-m
Buy the Buy IDEC CW Series Control Components Part Number CW1LM1E10QM4S Online
Purchase the IDEC CW Series Control Switch CW1LM1E10QM4S online today for dependable operation and safety compliance in industrial control panels. With a sleek 2.5mm bezel and IP66/67 protection, it ensures durability against harsh environments. Easy to install with IEC 60947-5-1 compliant mounting holes, this switch features a 10A resistive load capacity suitable for various automation and machinery applications. Enjoy fast delivery and excellent customer support when you buy this high-quality switch directly online.
Order your IDEC CW Series CW1LM1E10QM4S control switch today and enhance your panels with reliable, safe, and stylish switching solutions.
Frequently Asked Questions
Where can I buy IDEC Corporation CW1LM1E10QM4S?
You can click on the BUY or RFQ button to purchase CW1LM1E10QM4S from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW1LM1E10QM4S?
You can download the CW1LM1E10QM4S datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW1LM1E10QM4S?
IDEC Corporation
