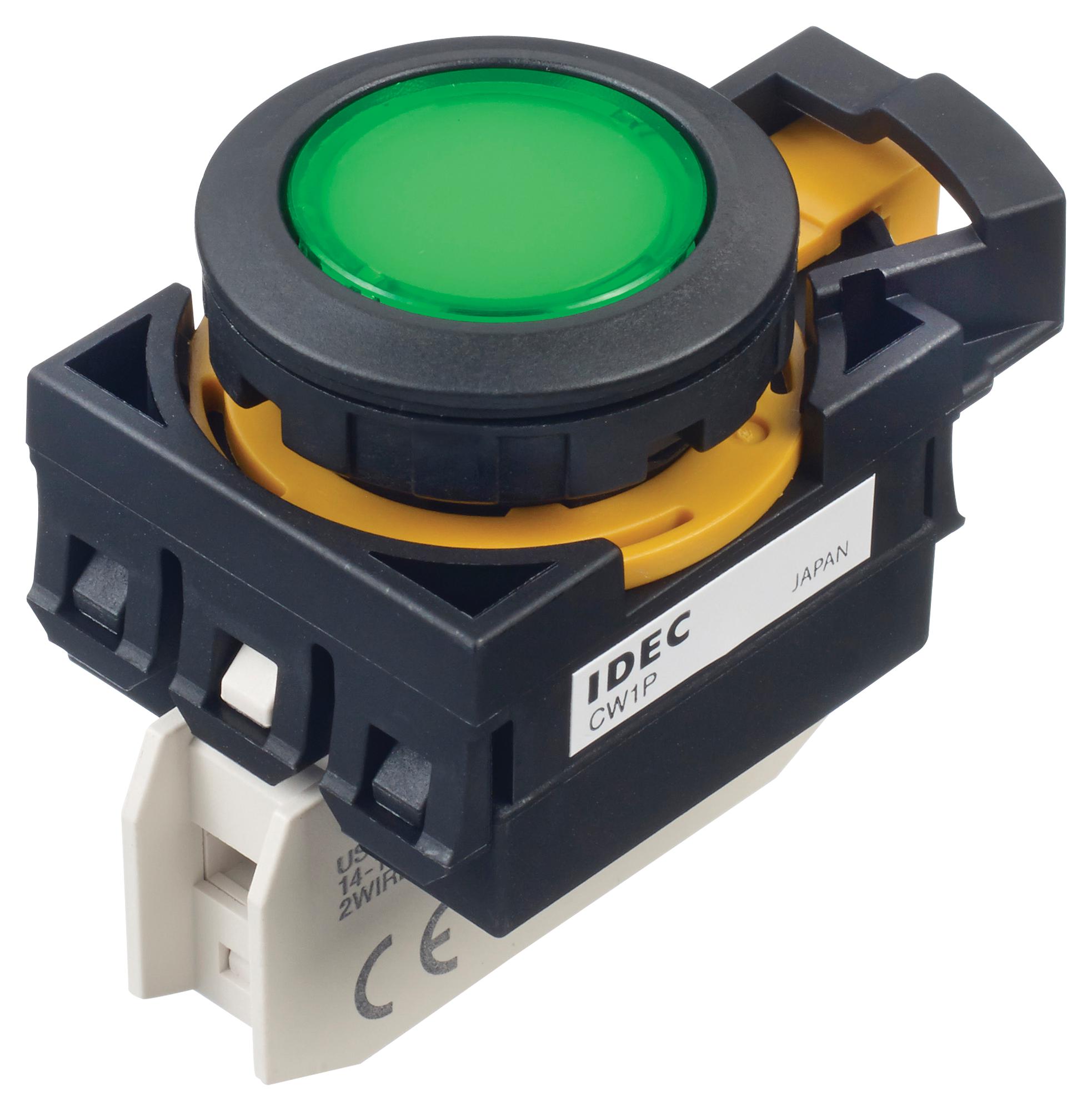

IDEC Corporation CW1P1EQM4G Control Switch
The CW series offers sleek, stylish switches and pilot lights with a 2.5mm-thick bezel, providing a modern appearance and enhanced safety with finger-safe terminals. These devices feature a compact design with only 2.5mm projection, 39.9mm panel depth, and a mounting hole compliant with IEC 60947-5-1. They support multiple contact configurations, including four-contact for switches and contact blocks, with ratings up to 10A at 120V AC. Safety features include a two-action contact lock lever, IP20 finger safety, and optional waterproof and dustproof protection up to IP66/67, UL Type 4X. Easy installation, robust construction, and variety of options make them ideal for control panels and machinery automation.
IDEC Corporation CW1P1EQM4G Control Switch Specifications:
- Bezel Thickness: 2.5mm
- Panel Thickness: 0.8 to 3.2 mm
- Mounting Hole Compliance: IEC 60947-5-1 (22.3 mm)
- Panel Depth Behind Panel: 39.9 mm (single contact, momentary)
- Switching Capacity: 10A at 120V AC
- Contact Resistance: 50 mΩ maximum
- Operating Temperature: -25°C to +60°C (non-illuminated), -25°C to +55°C (illuminated); no freezing
- Humidity: 45-85% RH (no condensation)
- Insulation Resistance: 100 MΩ minimum at 500V DC
- Dielectric Strength: 2.5 kV for 1-minute contact
- Degree of Protection (panel front): IP66/67, UL Type 4X
- Terminal Style: Finger-safe screw terminals, rated IP20
- Vibration Resistance: 30 Hz to 55 Hz, amplitude 0.5 mm
- Shock Resistance: 1000 m/s² damage limit
- Contact Ratings: 10A at 120V AC, various contact configurations
- Standards Compliance: UL508, CSA 622.2 No.14, EN60947-5-1
Buy the IDEC Series CW Switches: Switches and Pilot Lights - Part CW1P1EQM4G
Upgrade your control panels with IDEC Series CW switches and pilot lights, offering a sleek 2.5mm bezel, finger-safe terminals, and high IP66/67 protection. Ideal for machinery and automation projects, these devices support various configurations including illuminated, non-illuminated, contact, and key switch options. Easy to install with IEC-compliant mounting holes and rated for 10A at 120V AC, they ensure safety, durability, and reliable operation in demanding industrial environments. Purchase online and enjoy swift delivery of top-quality switches tailored for your automation needs.
Order your IDEC Series CW pilot light and switch today and enhance the safety and reliability of your control panels with our high-quality automation components.
Frequently Asked Questions
Where can I buy IDEC Corporation CW1P1EQM4G?
You can click on the BUY or RFQ button to purchase CW1P1EQM4G from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW1P1EQM4G?
You can download the CW1P1EQM4G datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW1P1EQM4G?
IDEC Corporation
