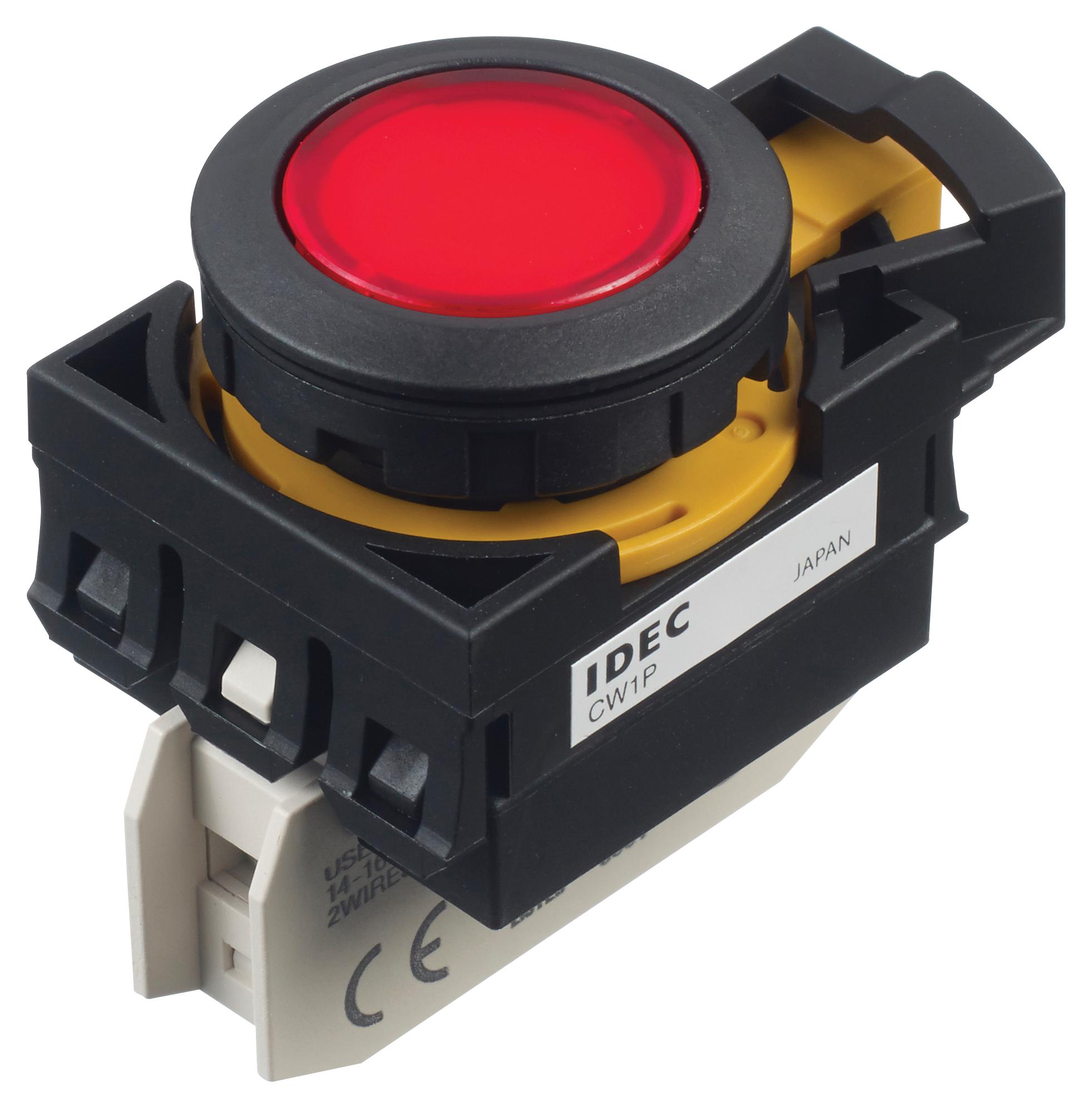

IDEC Corporation CW1P1EQM4R Flush Silhouette Switch
The CW series flush silhouette switches and pilot lights from IDEC offer a sleek, modern design with a 2.5mm-thick bezel and compact profile, only 39.9mm behind the panel for single contact units. They feature IP66/67 and UL Type 4X protection, making them suitable for demanding industrial environments. The switches include illuminated pushbuttons, selector switches, and key selector options, with various contact configurations up to 4 contacts and rated at 10A. They are easy to install with IEC 60947-5-1 compliant mounting holes and finger-safe IP20 screw terminals, ensuring safety and durability.
IDEC Corporation CW1P1EQM4R Flush Silhouette Switch Specifications:
- Bezel Thickness: 2.5 mm
- Panel Mounting Hole: IEC 60947-5-1 compliant 22.3 mm
- Depth Behind Panel: 39.9 mm for single contact, 59.9 mm for double contact units
- Contact Ratings: 10A at 120V AC resistive load
- Protection Degree: IP66/67, UL Type 4X from front
- Operating Voltage Range: 6V to 240V AC/DC (varies by module)
- Temperature Range: -25°C to +60°C (non-freezing)
- Vibration Resistance: 30 Hz, amplitude 1.5 mm, 50,000 operations
- Shock Resistance: 1,000 m/s² damage limit
- Terminals: Finger-safe IP20 screw terminals
- Enclosure Materials: Plastic (black or metallic bezels available)
- Standards: UL508, CSA 622.2, IEC 60947-5-1
- Contact Configurations: 1NO, 2NO, 1NC, 2NC, 1NO-1NC, 2NO-2NC, 3NO, 3NC, with illuminated and non-illuminated options
Buy the Buy IDEC Flush Silhouette Switch Part Number CW1P1EQM4R Online
Order the IDEC CW series flush silhouette switch online now to enhance your control panel with a sleek, durable, and space-efficient design. Featuring high IP66/67 protection, a 2.5mm bezel, and various contact configurations, these switches ensure longevity and safety in demanding environments. Easily install with IEC 60947-5-1 compliant mounting and finger-safe terminals. Perfect for industrial automation, machine controls, and panel integration, the CW series combines safety, style, and performance for modern manufacturing and control systems.
Get IDEC CW1P1EQM4R today—designed for safety and reliability in industrial control applications.
Frequently Asked Questions
Where can I buy IDEC Corporation CW1P1EQM4R?
You can click on the BUY or RFQ button to purchase CW1P1EQM4R from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW1P1EQM4R?
You can download the CW1P1EQM4R datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW1P1EQM4R?
IDEC Corporation
