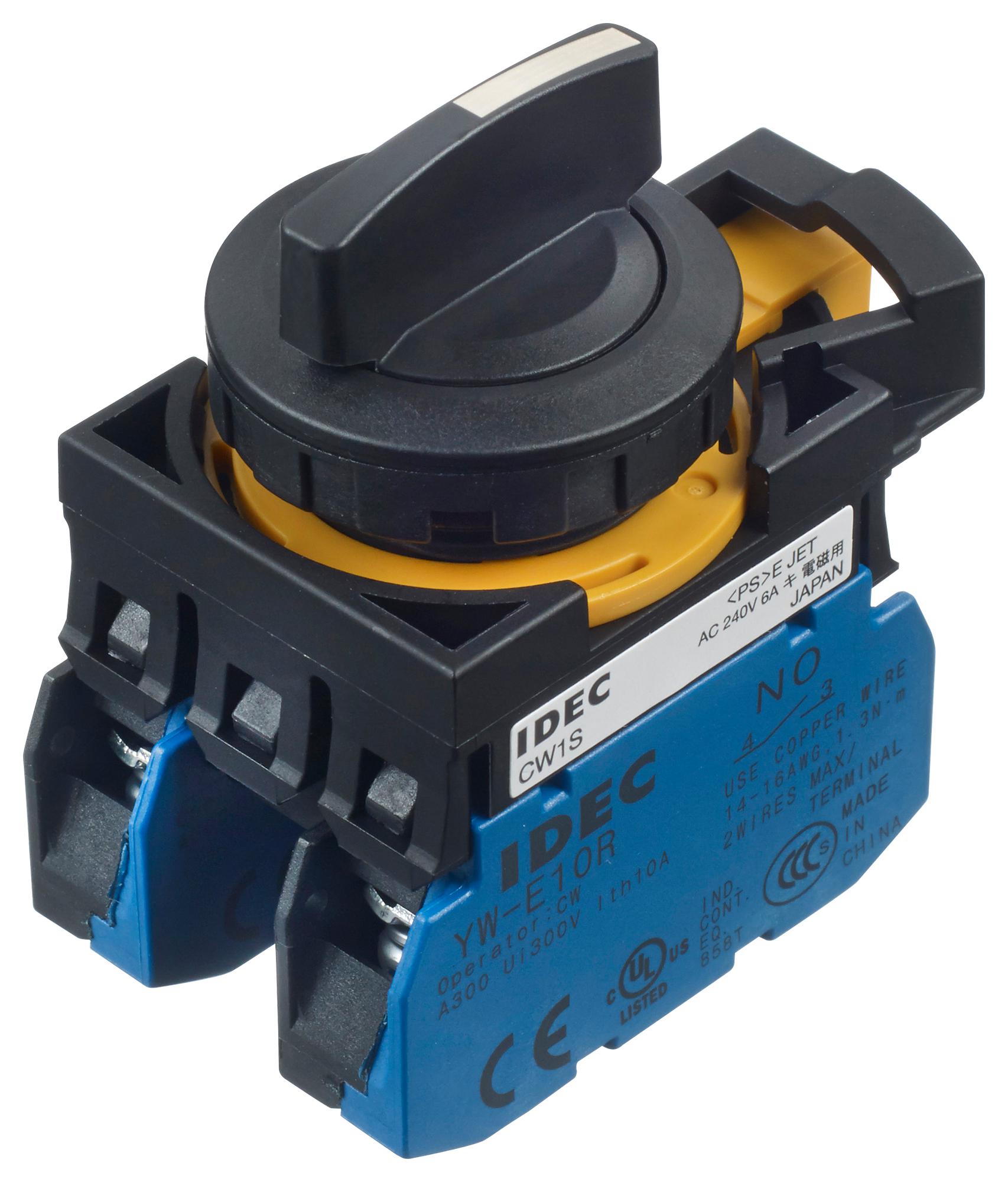

IDEC Corporation CW1S31E20 Control Switch
The CW series combines sleek design with high safety features, including IP20 finger-safe terminals and a lock lever guard. It offers a variety of control options such as illuminated pushbuttons, selector switches, and key switches, all with a 2.5mm bezel and a compact depth of just 39.9mm behind the panel. Rated for 10A at 120V AC, these controls are suitable for industrial automation, providing reliable operation, multiple contact configurations, and IP66/67 protection for panel front mounting. Easy installation and safety features make it ideal for modern control panels.
IDEC Corporation CW1S31E20 Control Switch Specifications:
- bezel thickness: 2.5mm
- Panel mounting hole: compliant with IEC 60947-5-1 (22.3mm)
- Depth behind panel: Single contact block 39.9mm, double contact block 59.9mm
- Contact Ratings: 10A at 120V AC resistive load
- Protection degree: IP66/67 front, IP20 screw terminals
- Material: Black plastic or metallic bezels, plastics for control units
- Contact configuration: 1NO, 2NO, 1NC, 2NC, 1NO-1NC, 2NO-2NC, and more with optional contact blocks
- Operating temperature: -25°C to +60°C (non-illuminated), -25°C to +55°C (pilot lights)
- Vibration resistance: 50,000 operations for illuminated pushbuttons, 250,000 for selector switches
- Switching capacity: 10A at 120V AC, suitable for control of machinery
- Standards: UL508, CSA 622.2, IEC 60947-5-1
- Construction: Contact blocks removable via two-action locking lever with guard for safety
Buy the Buy IDEC Control Switch Part Number CW1S31E20 Online
Purchase the IDEC control switch CW1S31E20 online today for robust performance, safety-compliant design, and easy installation. This switch features a sleek 2.5mm bezel, compatible with IEC standards, and offers a variety of contact configurations for versatile control needs. Its IP66/67 protected front ensures dust and water resistance, perfect for harsh environments. Rated at 10A at 120V AC, it is ideal for integrating into automated machinery, ensuring reliable operation, long-lasting durability, and easy maintenance. Order now to enhance your control panel with proven IDEC quality.
Get IDEC control switch CW1S31E20 today—engineered for safety, durability, and precise control in industrial applications.
Frequently Asked Questions
Where can I buy IDEC Corporation CW1S31E20?
You can click on the BUY or RFQ button to purchase CW1S31E20 from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW1S31E20?
You can download the CW1S31E20 datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW1S31E20?
IDEC Corporation
