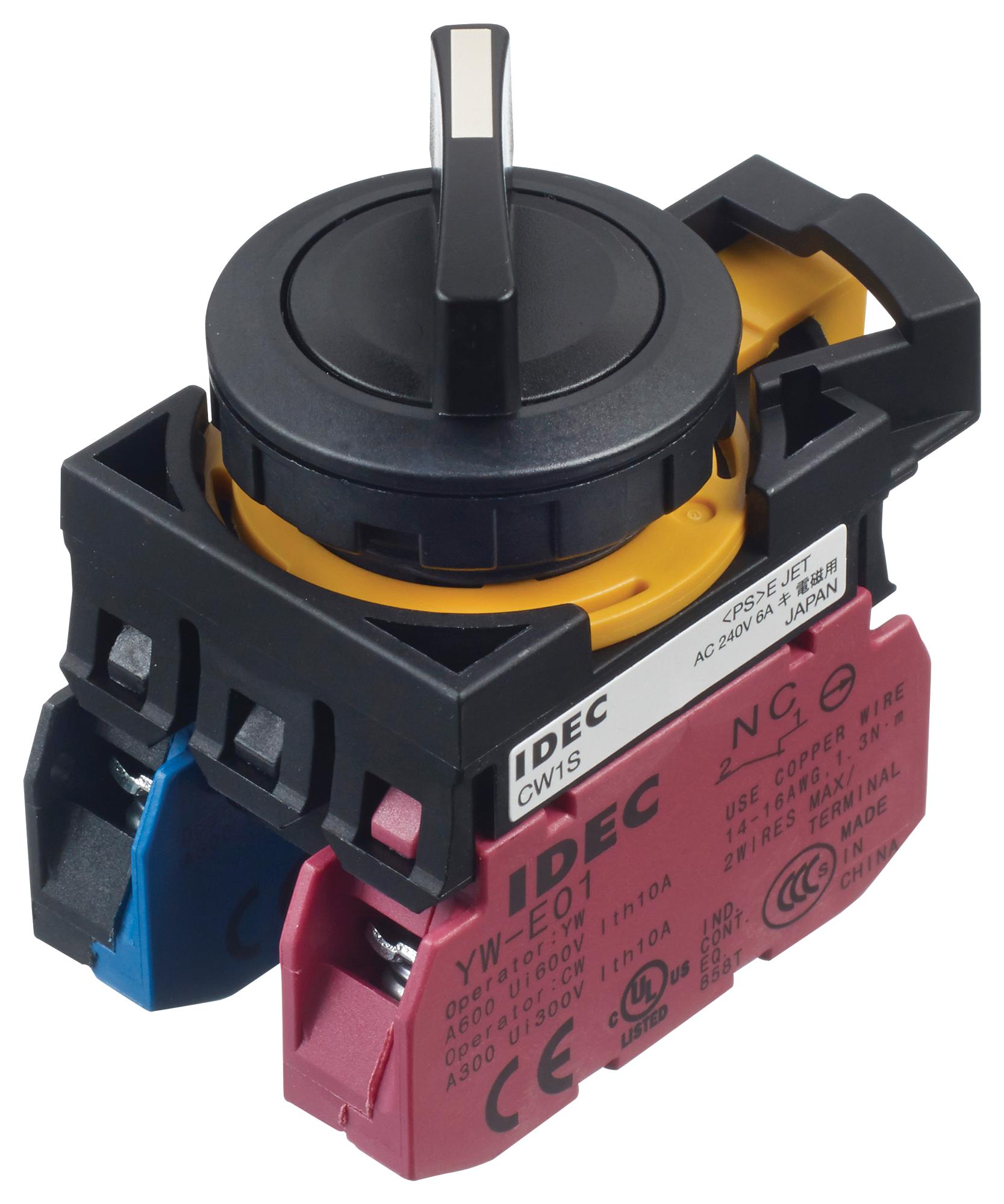

IDEC Corporation CW1S31LE20 Control Switches
The CW series compact control switches and pilot lights feature a sleek 2.5mm bezel and a flush silhouette design, providing a stylish and safe interface. They are engineered with third-generation safety construction, including a two-action contact block lock lever with a guard for safety and IP20 finger-safe screw terminals. Suitable for panel mounting with IEC 60947-5-1 compliant 22.3mm holes, these switches offer various configurations: pushbuttons, selector switches, key switches, and pilot lights, with high durability, multiple illumination options, and voltage ratings from 6V to 240V AC/DC for versatile industrial applications.
IDEC Corporation CW1S31LE20 Control Switches Specifications:
- Bezel Thickness: 2.5mm
- Panel Mounting Hole: IEC 60947-5-1 compliant 22.3mm
- Depth Behind Panel: Single contact block 39.9mm, maintained 44.6mm; Double contact block 59.9mm, maintained 64.6mm
- Contact Rating: 10A at 120V AC
- Operating Temperature: -25°C to +60°C (non-illuminated), -25°C to +55°C (illuminated)
- Operating Humidity: 45 to 85% RH
- Storage Temperature: -40°C to +80°C
- Contact Resistance: Max 50mΩ
- Insulation Resistance: Min 100 MΩ at 500V DC
- Rated Insulation Voltage: 250V
- Mechanical Life: Up to 2,000,000 operations for illuminated pushbuttons
- Electrical Life: Up to 250,000 operations for maintained switches
- Degree of Protection: IP20 finger-safe terminals; IP66/IP67 front protection, UL Type 4X
- Certification: UL508, CSA 622.2 No.14
Buy the IDEC CW Series - Reliable Industrial Control Switches for Panel Mounting
Enhance your machinery with IDEC CW control switches and pilot lights, designed for safety and durability. Featuring a sleek flush silhouette with robust IP66/IP67 protection, these switches support various configurations including pushbuttons, selector switches, and key switches, all with high electrical ratings up to 10A. Easy to install with IEC 60947-5-1 compliant 22.3mm mounting holes, they ensure reliable operation in harsh industrial environments. Order online today for quick delivery and professional-grade control equipment.
Buy IDEC CW series switches now and experience unmatched safety, durability, and versatile options for your industrial applications.
Frequently Asked Questions
Where can I buy IDEC Corporation CW1S31LE20?
You can click on the BUY or RFQ button to purchase CW1S31LE20 from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW1S31LE20?
You can download the CW1S31LE20 datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW1S31LE20?
IDEC Corporation
