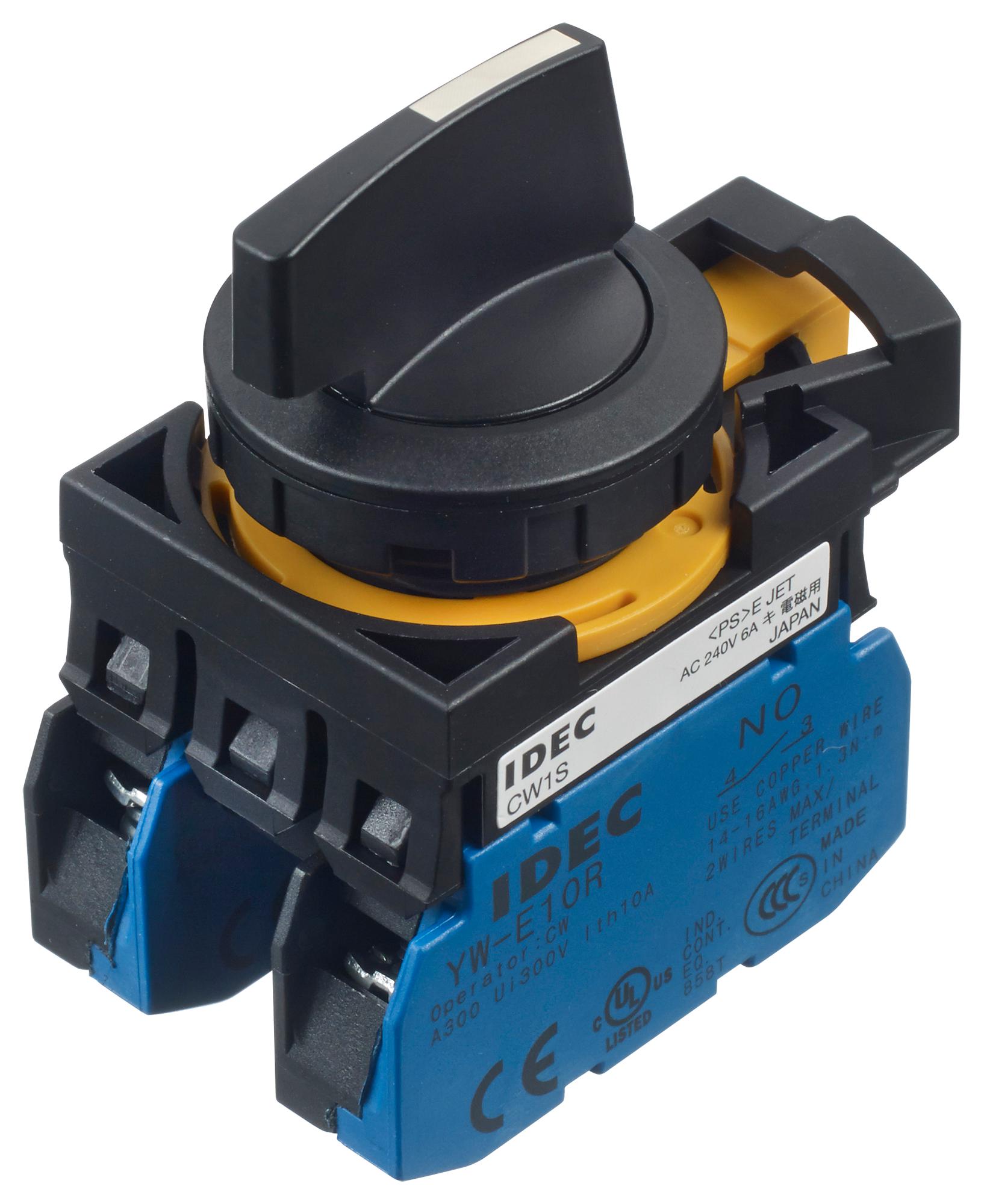

IDEC Corporation CW1S3LE20 Control Switches
The CW series flush silhouette switches feature a sleek design with only 2.5mm bezel projection, offering a compact depth of 39.9mm behind the panel. They include illuminated pushbuttons, selector switches, and key selector switches with various contact configurations, rated for 10A at 120V AC. The switches support direct connection to control boxes without transformers, with IP20 finger-safe screw terminals and IP66/67 protection from panel front. Their safety construction includes a locking lever guard and reliable contact operation ideal for industrial control panels.
IDEC Corporation CW1S3LE20 Control Switches Specifications:
- Bezel Projection: 2.5mm
- Panel Depth: 39.9mm (single contact, momentary)
- Mounting Hole: 22.3mm IEC 60947-5-1 compliant
- Contact Ratings: 10A, 120V AC
- Protection Degree: IP66/67 front, IP20 terminals
- Operating Temperature: -25 to +60°C (non-illuminated), -25 to +55°C (illuminated)
- Vibration Resistance: 50,000 operations (inductive load)
- Shock Resistance: 1,000 m/s²
- Material: Plastic bezel, various contact configurations
- Wiring: Finger-safe screw terminals, strip or ferrule wire compatible
- Standards: UL508, CSA 622.2, EN60947-5-1
- Switching Capacity: 10A resistive load at 120V AC
- Degrees of Protection: UL Type 4X front, IP66/67 with optional rubber boot
- Locking Lever: Two-action, with guard for safety
- Applicable Standards: IEC 60947-5-1, UL, CE
- Operating Voltage Range: 6V AC/DC to 240V AC/DC depending on module
- LED Modules: Available with various illumination colors and voltage options
- Contact Blocks: Single and double contact configurations, removable with locking lever
Buy the IDEC CW series – Reliable Control Components for Industrial Applications
Order IDEC CW series control switches online today to enhance your machinery with sleek, durable, and safety-certified control components. These switches feature a compact 2.5mm bezel for seamless integration, IP66/67 front protection, and a robust 10A contact rating suitable for demanding industrial environments. Easy wiring with finger-safe screw terminals and reliable locking levers ensure operational safety and longevity. Perfect for automation panels, machinery, or control systems, these switches streamline installation and maintenance, delivering dependable performance day after day.
Buy IDEC CW series switches now and experience unmatched safety, durability, and compact design for your industrial control panels.
Frequently Asked Questions
Where can I buy IDEC Corporation CW1S3LE20?
You can click on the BUY or RFQ button to purchase CW1S3LE20 from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW1S3LE20?
You can download the CW1S3LE20 datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW1S3LE20?
IDEC Corporation
