IDEC Corporation CW4BA1E10S Control Switch
The CW series flush silhouette switches and pilot lights feature a sleek 2.5mm-thick bezel and compact design with only 39.9mm depth behind the panel for space-saving control panels. They conform to IEC 60947-5-1 standards, offer high reliability with a 10A contact rating, and include both illuminated pushbuttons and key selector switches in various configurations. The safety construction employs a two-action locking lever for secure contact blocks, IP20 finger-safe terminals, and optional waterproof and dustproof features (IP66/67, UL Type 4X). Suitable for various industrial automation and control applications.
IDEC Corporation CW4BA1E10S Control Switch Specifications:
- Bezel Thickness: 2.5 mm
- Panel Mounting Hole: 22.3 mm IEC 60947-5-1 compliant
- Depth Behind Panel: 39.9 mm (single contact block, momentary)
- Switching Capacity: 120V AC, 10A (resistive load)
- Contact Resistance: 50 mΩ maximum
- Operating Temperature Range: -25°C to +60°C (non-illuminated), -25°C to +55°C (illuminated)
- Operating Humidity: 45% to 85% RH (no condensation)
- Storage Temperature: -40°C to +80°C
- Rated Insulation Voltage: 250V
- Degree of Protection: IP20 finger-safe screw terminals, optional IP66/67, UL Type 4X
- Rated Thermal Current: 10A
- Vibration Resistance: 30 Hz, amplitude 1.5 mm
- Shock Resistance: 1000 m/s²
- Contact Ratings: 10A @ 120V AC, 6A @ 250V AC, resistive load
- Standards: UL508, CSA 622.2 No.14, IEC 60947-5-1
- Weight: Approximately 27g (pushbutton), 46g (key switch)
- LED Modules: 6V to 240V AC/DC compatible, 15-20mA, approx. 30,000 hours life

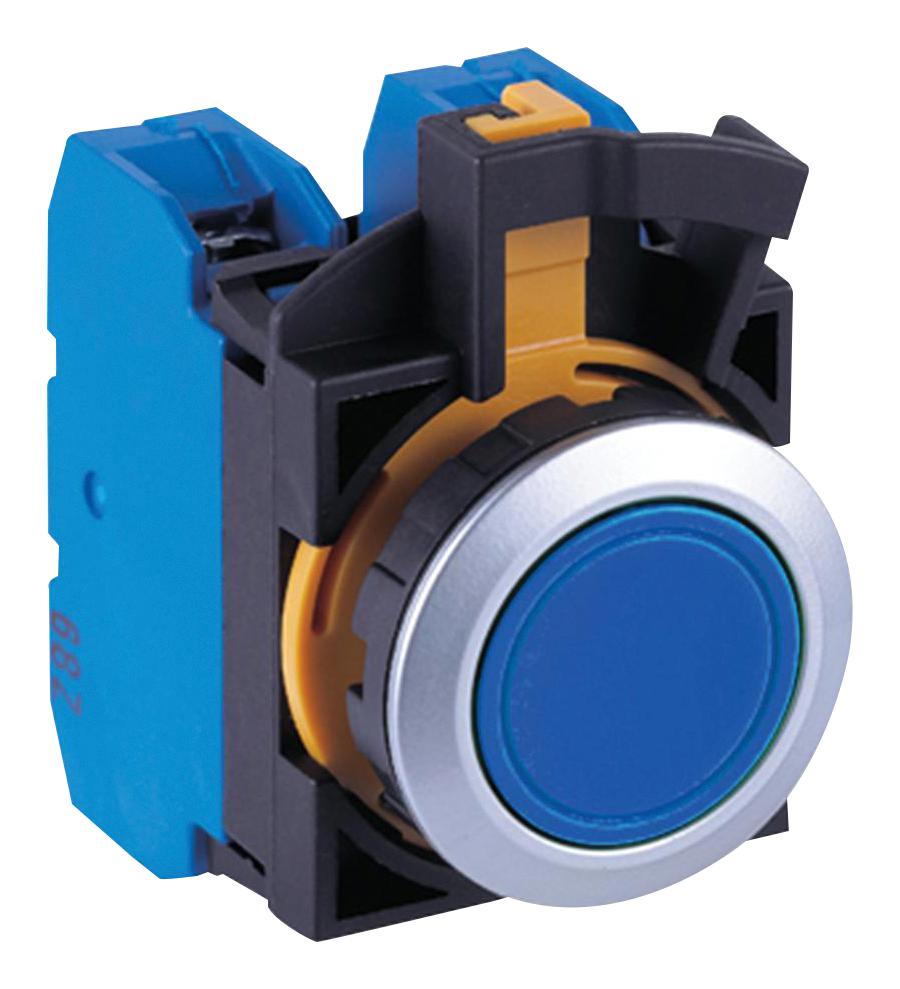

Buy the Buy IDEC CW Series Switch Part Number CW4BA1E10S Online
Purchase the IDEC CW4BA1E10S control switch online now to ensure high-quality, space-efficient operation for your industrial automation projects. Featuring a sleek 2.5mm bezel, safe finger-safe terminals, and a robust 10A contact capacity, it guarantees durability and safety. Its compact depth of only 39.9mm saves panel space, making it ideal for control panels requiring reliable operation and easy maintenance. Compatible with various control boxes, it is suitable for demanding industrial environments, offering excellent safety, compliance with IEC standards, and long-lasting performance. Shop today for fast delivery and technical support.
Order your IDEC CW4BA1E10S flush silhouette switch today and enhance your control panels with reliable, space-saving operation and safety features.
Frequently Asked Questions
Where can I buy IDEC Corporation CW4BA1E10S?
You can click on the BUY or RFQ button to purchase CW4BA1E10S from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW4BA1E10S?
You can download the CW4BA1E10S datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW4BA1E10S?
IDEC Corporation
