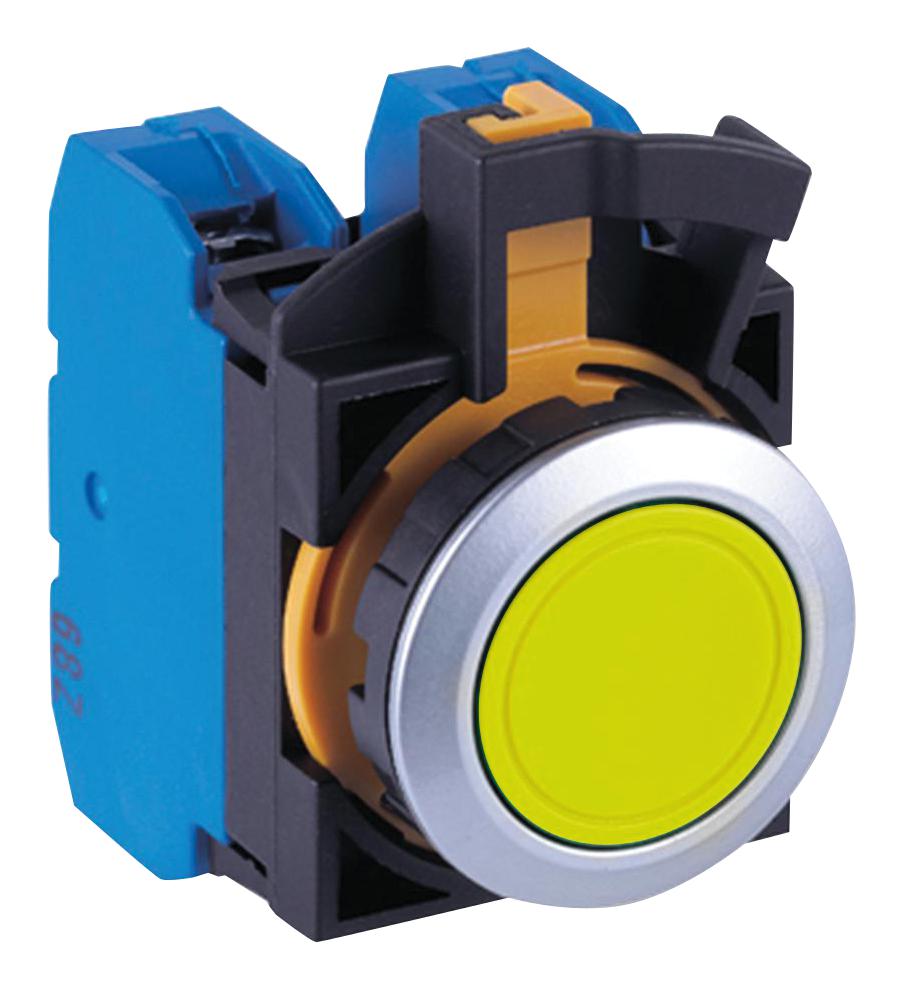

IDEC Corporation CW4BA1E10Y Flush Control Switch
The CW series flush silhouette switches feature a sleek 2.5mm-thick bezel and a compact depth of only 39.9mm behind the panel, offering a stylish and safe control solution. Designed with safety in mind, they include a finger-safe IP20 screw terminal and a lock mechanism that prevents accidental contact or release. These switches support various configurations such as illuminated pushbuttons, selector, and key switches, with high contact ratings of up to 10A at 120V AC. Their robust construction meets UL, CSA, and IEC standards, making them suitable for diverse control panel applications in industrial environments.
IDEC Corporation CW4BA1E10Y Flush Control Switch Specifications:
- Bezel Thickness: 2.5mm
- Panel Depth: 39.9mm (single contact, momentary)
- Mounting Hole Compliance: IEC 60947-5-1, 22.3mm
- Contact Rating: 10A at 120V AC
- Configuration: Illuminated pushbuttons, selector, key switches
- Contact Blocks: Up to 3 for non-illuminated, 2 for illuminated
- Degree of Protection: IP20 finger-safe screw terminals, IP66/67, UL Type 4X front
- Operating Temperature: -25°C to +60°C (non-illuminated), -25°C to +55°C (illuminated)
- Standards: UL508, CSA 622.2 No.14, EN60947-5-1
- Vibration Resistance: 30-55Hz, 0.5mm amplitude
- Shock Resistance: 1000 m/s²
- Dimensions: Operator travel 3.5mm, mounting hole diameter 22.3mm, bezel protrusion 2.5mm
- Terminal: IP20 finger-safe screw terminals, torque 1.0–1.3 N-m
Buy the IDEC Series CW Switches: Flush Silhouette Switches CW4BA1E10Y
Order IDEC Flush Control Switches online now and enjoy high-quality safety features, compact design, and versatile configurations that improve your control panel aesthetics and reliability. Suitable for various industrial environments, these switches comply with UL, CSA, and IEC standards, offering peace of mind. With simple installation and maintenance, they ensure safe operation with finger-safe screw terminals and robust construction. Upgrade your control systems today for enhanced safety, durability, and control precision by purchasing directly from trusted online sources.
Buy IDEC CW4BA1E10Y now and experience unmatched reliability and performance for industrial control applications.
Frequently Asked Questions
Where can I buy IDEC Corporation CW4BA1E10Y?
You can click on the BUY or RFQ button to purchase CW4BA1E10Y from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW4BA1E10Y?
You can download the CW4BA1E10Y datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW4BA1E10Y?
IDEC Corporation
