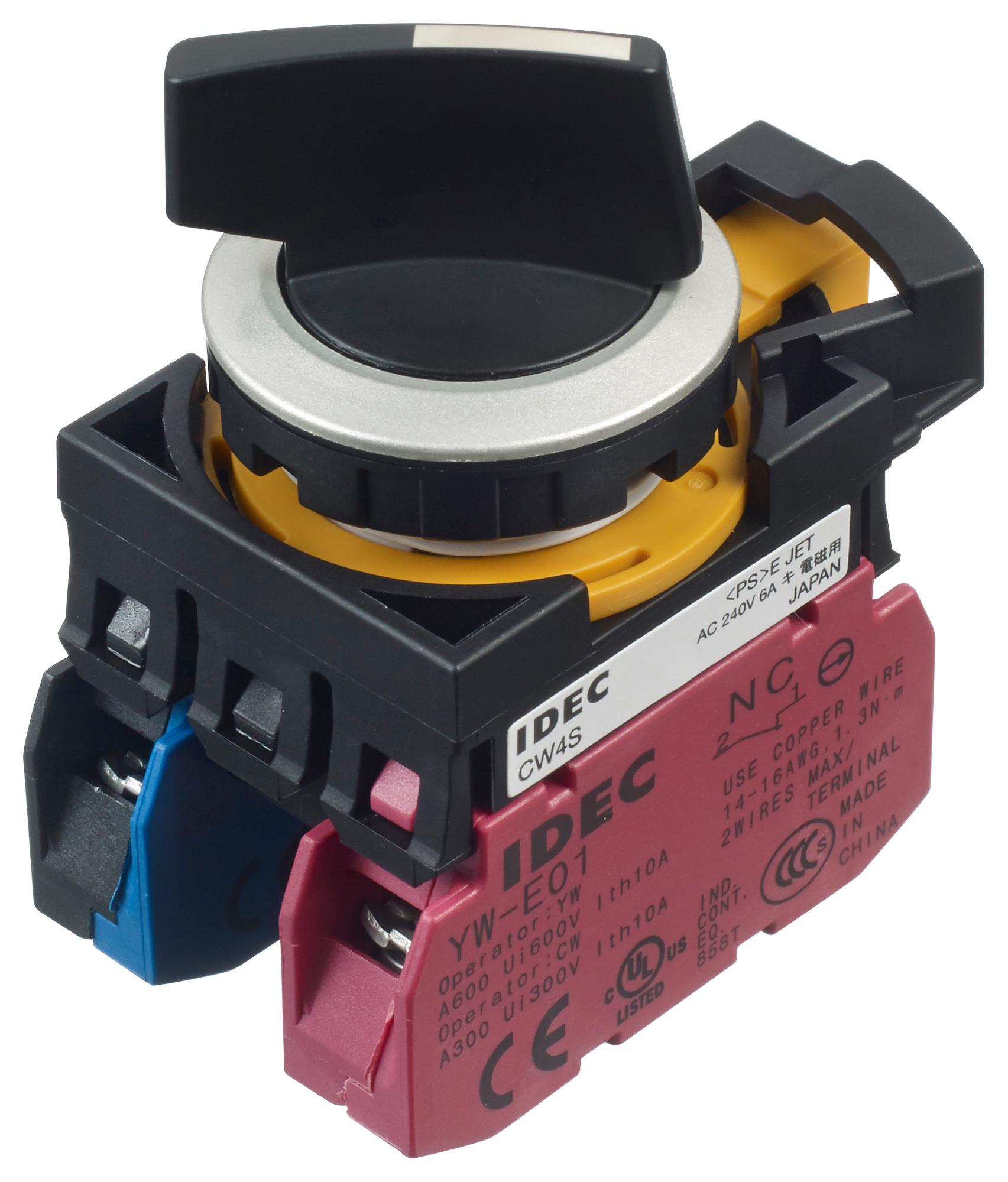

IDEC Corporation CW4S2LE11 Control Switch
The CW series flush silhouette switches combine sleek design with safety features, offering multiple contact configurations, IP66/67 protection, and optional illuminated pilot lights. They feature a compact profile with only 2.5mm bezel projection, enabling safe and cleaner operation with less dust accumulation. Suitable for automation and control panels, these switches support direct panel mounting, come with lockable contact blocks, and meet UL, CSA, and IEC standards. Available with various actuators including pushbuttons, selector switches, and key switches, they ensure reliable performance for industrial applications.
IDEC Corporation CW4S2LE11 Control Switch Specifications:
- Bezel Projection: 2.5mm
- Depth Behind Panel: 39.9mm (single contact, momentary)
- Mounting Hole Compliance: IEC 60947-5-1
- Contact Ratings: 10A at 120V AC
- Protection Degree: IP66/67 front, UL Type 4X
- Operating Temperature: -25°C to +60°C (non-illuminated), -25°C to +55°C (illuminated)
- Contact Resistance: 50 mΩ max
- Insulation Resistance: 100 MΩ minimum at 500V DC megger
- Vibration Resistance: 30 Hz amplitude 1.5 mm, 50,000 cycles
- Shock Resistance: 1000 m/s² max
- Electrical Life: 250,000 operations for maintained, 2,000,000 for momentary (single contact block)
- Mechanical Life: 50,000 operations for contact closure, 250,000 for maintained
Buy the IDEC Series CW Switches: Pushbuttons, Selector, Key Switches - CW4S2LE11
Enhance your control panels with IDEC Series CW switches, featuring a sleek flush profile, IP66/67 protection, multiple contact options, and easy panel mounting. These switches support various actuator types, including pushbuttons, selectors, and keys, ensuring dependable operation in demanding environments. Suitable for industrial automation, their safety features include lockable contact blocks and finger-safe terminal wiring. With UL, CSA, and IEC compliance, they deliver high performance and durability. Purchase online today for quick delivery and professional-grade automation components.
Order your IDEC Series CW4S2LE11 switches today and ensure reliable, safety-certified control solutions for industrial automation and panel applications.
Frequently Asked Questions
Where can I buy IDEC Corporation CW4S2LE11?
You can click on the BUY or RFQ button to purchase CW4S2LE11 from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW4S2LE11?
You can download the CW4S2LE11 datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW4S2LE11?
IDEC Corporation
