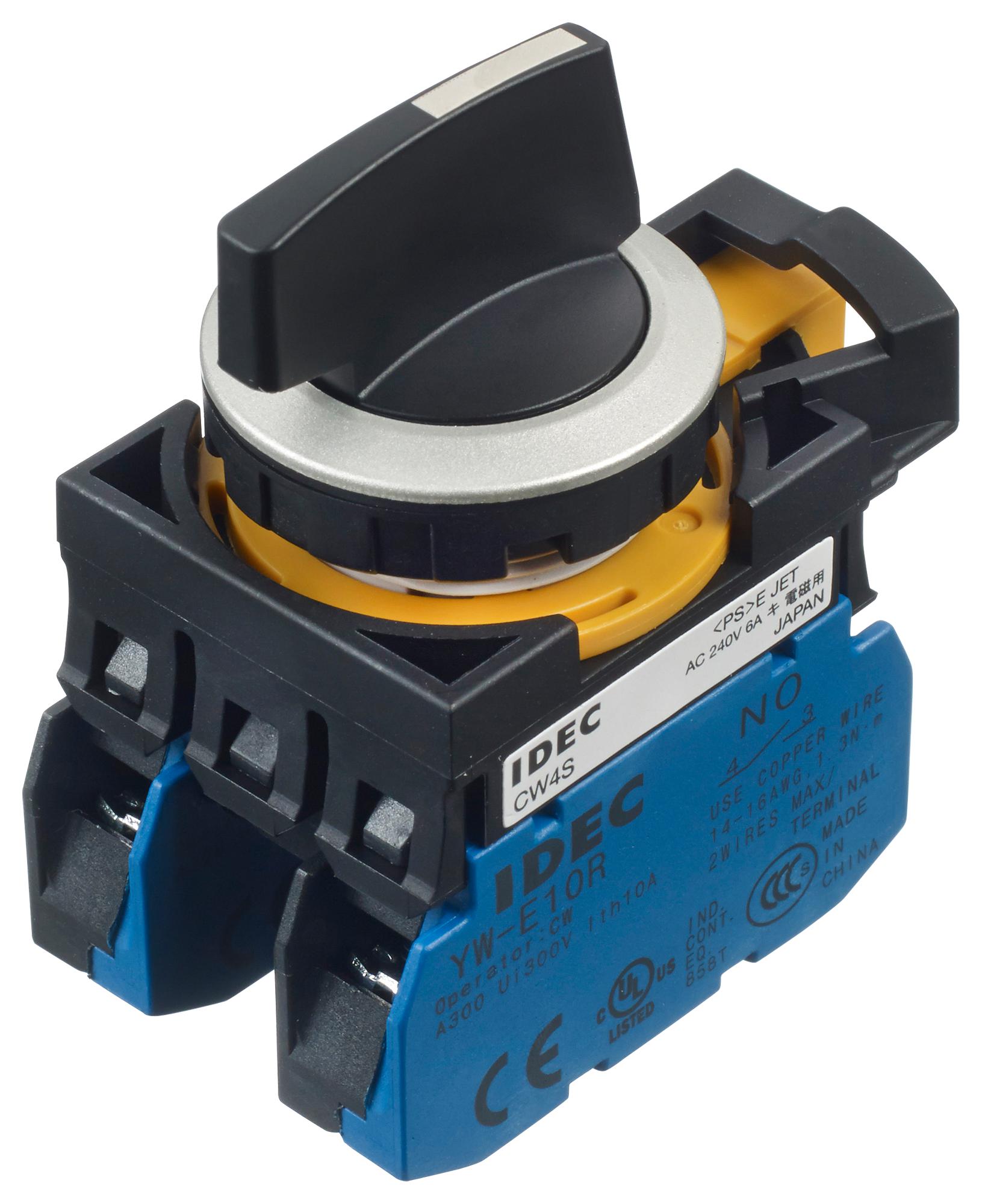

IDEC Corporation CW4S31LE20 Control Switch
The CW series offers sleek, stylish control switches with a 2.5mm-thick bezel, minimal 39.9mm depth behind panel, and a variety of contact configurations. Designed for panel safety and ease of operation, these switches complies with IEC 60947-5-1 standards. Features include IP20 finger-safe terminals, high current ratings of 10A at 250V AC, and robust safety locks with two-action contact removal. Suitable for automation, machine control, and panel integration with optional waterproof and dustproof features, offering reliable performance in industrial environments.
IDEC Corporation CW4S31LE20 Control Switch Specifications:
- Bezel Thickness: 2.5mm
- Depth Behind Panel: 39.9mm (single contact), 59.9mm (double contact)
- Operating Voltage Range: 6V AC/DC to 240V AC/DC
- Contact Ratings: 10A at 250V AC resistive load
- Contact Configurations: 1NO, 2NO, 2NC, 3NO, 3NC, 2NO-1NC, 2NC-1NO, 2NO-2NC, 3NO-3NC, and more
- Degree of Protection: IP20 finger-safe terminals, optional IP66/IP67 waterproof
- Standards: UL508, CSA 622.2, IEC 60947-5-1
- Operating Temperature: -25°C to +60°C (non-illuminated), -25°C to +55°C (illuminated)
- Vibration Resistance: 30Hz to 50Hz at 1.5mm amplitude
- Shock Resistance: Up to 1000 m/s²
- Material: UL94V-0 rated plastics, metal bezels available
- Mounting: IEC 60947-5-1 compliant 22.3mm holes, anti-rotation features
- Locking: Two-action lock lever with safety guard
- Wiring: IP20 screw terminals, wire size up to 2.0mm²
- Accessories: Locking ring, mounting plugs, rubber boots, nameplates, marking plates
- Additional Features: Illumination modules, key selector options, various legends and colors
Buy the Buy Control Switch Series CW Part Number CW4S31LE20 Online
Discover the versatile and stylish control switches of the CW series, featuring a slim 2.5mm bezel and minimal panel depth. These switches are designed to meet IEC 60947-5-1 standards, offering high current capacity of 10A at 250V AC and a variety of contact configurations including illuminated options. Equipped with IP20 finger-safe screw terminals, robust locking guards, and optional waterproof features, they are ideal for industrial automation, panel control, and safety applications. Purchase online today for reliable performance and easy installation.
Order your control switch series CW with part number CW4S31LE20 today and enhance your machines with dependable safety and stylish design.
